When it comes to customizing your guitar's sound, understanding how to effectively use a 500k ohm volume control with a push switch can significantly enhance your tonal versatility. This article will guide you through the necessary steps, provide wiring diagrams, and address common questions related to this setup.
A potentiometer (or pot) is a variable resistor used in electronic circuits to adjust voltage and current. In guitars, pots are primarily used for volume and tone controls. The resistance value of the pot affects the brightness of the sound:
- 500k pots are typically used with humbucker pickups, allowing more high frequencies to pass through, resulting in a brighter tone.
- 250k pots are preferred for single-coil pickups, which can sound shriller when paired with higher resistance.
Using a push switch with a 500k pot allows you to toggle between different resistance values, providing flexibility in your sound.
Before starting your project, gather the following components:
- 500k ohm potentiometer (audio taper recommended)

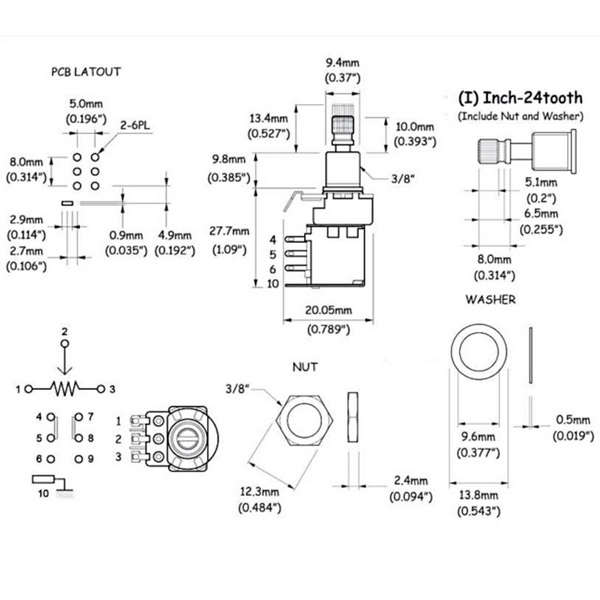

- Push switch (SPDT or DPDT)
- Resistor (typically 500k ohm for parallel configuration)
- Soldering iron and solder
- Wire cutters and strippers
- Multimeter (for testing)

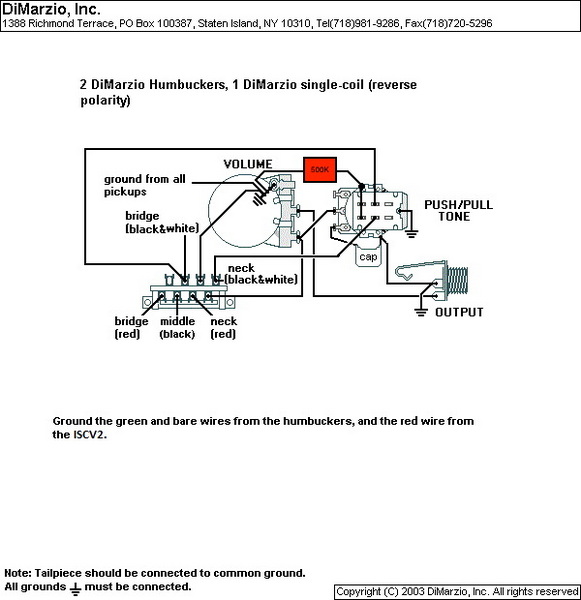

Here's a simple wiring diagram illustrating how to connect a 500k pot with a push switch:

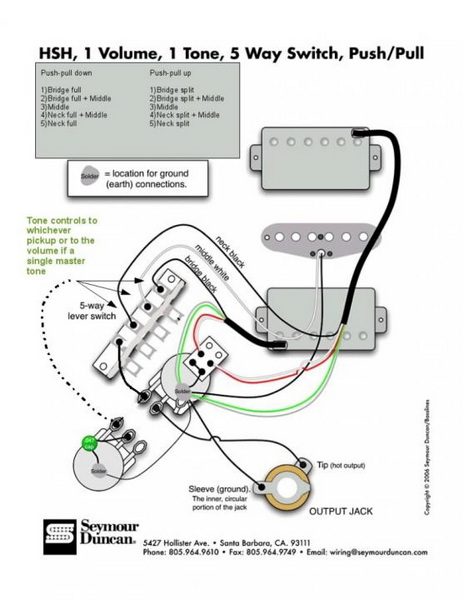

Wiring Diagram *(Note: Replace with actual image link)*
1. Connect the Potentiometer:
- Lug 1: Connect to the input from the pickup.
- Lug 2: Connect to the output jack.
- Lug 3: Connect to ground.
2. Connect the Push Switch:
- If using an SPDT switch:
- Connect one terminal to lug 1 of the pot.
- Connect the other terminal to ground.
- Connect the middle terminal to one end of the resistor.
3. Add the Resistor:
- Connect the other end of the resistor back to lug 3 of the pot.
This configuration allows you to switch between a standard 500k setting and a modified setting (250k) when engaging the push switch.
1. Preparation: Ensure your guitar is unplugged and remove any existing pots if necessary.
2. Soldering Connections: Carefully solder each connection according to your wiring diagram. Make sure there are no short circuits.
3. Testing: Once everything is connected, use a multimeter to test the resistance values at different positions of the push switch. You should see approximately 500k ohms when not engaged and around 250k ohms when engaged.
4. Reassembly: After confirming that everything works correctly, reassemble your guitar.
5. Final Testing: Plug in your guitar and test both settings to ensure they produce the desired tonal differences.
Using a push switch with a 500k volume control allows for:
- Tonal Versatility: Easily switch between bright and warm tones.
- Customizability: Tailor your sound based on different playing styles or genres.
- Convenience: Adjust settings on-the-fly during performances without needing additional pedals or equipment.
For those looking to take their setup further, consider these advanced modifications:
- Treble Bleed Circuit: This circuit preserves high frequencies as you roll off the volume, maintaining clarity in your tone even at lower settings. It can be integrated into your volume control by adding a capacitor and resistor in parallel with the volume pot.
- Coil Splitting: If you're using humbuckers, you can wire your push switch to split coils, allowing you to toggle between humbucker and single-coil sounds. This adds even more versatility to your tone palette.
When working with potentiometers and switches, you may encounter some common issues:
- Volume Not Going Down Completely: If you find that turning down your volume pot does not completely mute your guitar, it may be due to using a lower resistance pot than needed for your pickups. Ensure that you're using a 500k pot for humbuckers and a 250k pot for single coils.
- Noise or Crackling Sounds: This can occur due to poor soldering connections or dirty pots. Ensure all connections are solid and consider cleaning your pots with contact cleaner if noise persists.
- Unexpected Tonal Changes: If you notice significant changes in tone after modifying your circuit, double-check your wiring against diagrams. Sometimes minor mistakes can lead to unexpected results.
Integrating a 500k ohm volume control with a push switch provides greater control over your guitar's tone. Whether you're looking for brighter sounds or warmer tones, this setup can significantly enhance your playing experience. With additional modifications like treble bleed circuits or coil splitting, you can further expand your tonal options, making this an excellent project for any guitarist looking to customize their instrument.
A 250k pot bleeds off more high frequencies, resulting in a warmer tone, while a 500k pot retains more highs, producing a brighter sound.
Yes, but it's generally recommended to use lower resistance pots (like 250k) for single-coil pickups unless you want a brighter sound.
An SPDT (Single Pole Double Throw) or DPDT (Double Pole Double Throw) switch is ideal for this application as they allow for multiple configurations.
Use a multimeter to check resistance values at different points in your circuit; ensure they match expected values based on your configuration.
Yes, you can apply similar modifications to other pots in your guitar, such as tone controls, using appropriate resistors and switches.
