A slide switch is a simple yet versatile component used in various electronic devices. It allows users to control the flow of electricity in a circuit by sliding a lever from one position to another. This article will provide a comprehensive guide on how to use a slide switch, including its types, wiring, applications, and step-by-step instructions for implementing it in projects.

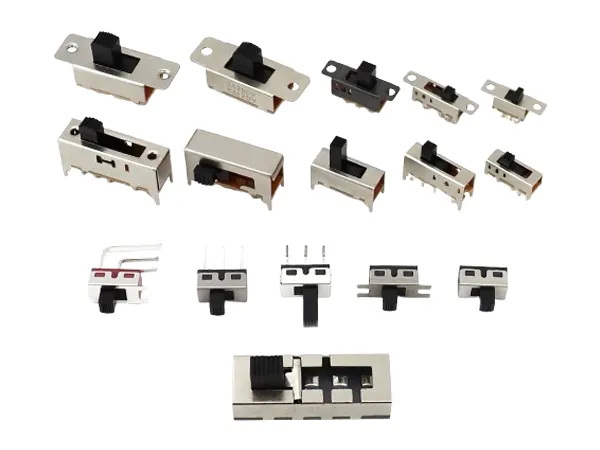

A slide switch is an electromechanical device that connects or disconnects an electrical circuit through the sliding of a lever. It typically has three terminals: one common terminal and two others that connect to different circuits or power sources. When the lever is slid to one side, it connects the common terminal to one of the other terminals, completing the circuit.
1. SPST (Single Pole Single Throw):
Controls one circuit and has two positions (ON/OFF).
2. SPDT (Single Pole Double Throw):
Can connect one input to one of two outputs.
3. DPST (Double Pole Single Throw):
Controls two circuits simultaneously with a single switch.
4. DPDT (Double Pole Double Throw):
Similar to SPDT but can control two different circuits with two outputs each.
Slide switches are widely used in various applications due to their reliability and ease of use:
- Consumer Electronics: Found in toys, remote controls, and small gadgets.
- Industrial Equipment: Used for mode selection and emergency stops.
- Automotive: Commonly found in dashboard controls.
- Home Appliances: Used in devices like coffee makers and fans.
Slide switches operate by moving a slider or lever from one position to another. The mechanism consists of metal contacts that make or break connections as the slider moves.
- When the slider is pushed to the left, it connects the common terminal with the left terminal.
- When pushed to the right, it connects the common terminal with the right terminal.
This simple sliding action allows for intuitive control over electrical circuits, making them ideal for various applications.
Wiring a slide switch may seem daunting at first, but it can be straightforward once you understand the configuration.
Basic Wiring Steps
1. Identify the type of slide switch you are using (SPST, SPDT, etc.).
2. Connect the common terminal to your power source (positive or ground).
3. Connect the other terminals based on your circuit requirements.
To wire an SPST slide switch:
- Connect one terminal to the power source (e.g., +5V).
- Connect the other terminal to the load (e.g., an LED).
- The common terminal will be connected to ground.
For an SPDT slide switch:
- Connect the middle pin (common) to your power source.
- Connect one outer pin to one device and the other outer pin to another device.
This configuration allows you to toggle between two devices using a single switch.
This section will provide a practical example of using a slide switch in an Arduino project.
- Arduino Uno board
- USB cable
- Resistor (220Ω)
- LED
- Slide switch
- Breadboard
- Jumper wires
1. Place the slide switch on the breadboard.
2. Connect the middle pin of the slide switch to pin 12 on the Arduino.
3. Connect one pin at one end of the switch to ground (GND).
4. Connect another pin at the opposite end of the switch to +5V.
5. Attach an LED with a resistor from pin 6 of Arduino to GND.
Beyond basic projects, slide switches can be integrated into more complex systems for various functionalities:
In multi-function devices, such as audio equipment or home automation systems, slide switches can be used not only for power control but also for selecting modes such as volume levels or different operational modes (e.g., fan speed settings).
In control panels for industrial machines, multiple slide switches can be used together. Each switch might control different aspects of machinery operation—such as turning specific motors on or off—allowing operators quick access to essential functions without needing complex interfaces.
When working with slide switches, you may encounter some common issues:
1. Switch Not Responding:
Ensure all connections are secure and that you are using appropriate voltage levels for your components.
2. Intermittent Connection:
This could be due to dirt or oxidation on contacts; cleaning them may resolve connectivity issues.
3. LED Not Lighting Up:
Check if your circuit is correctly wired and that your code is properly uploaded without errors.
Using a slide switch is an effective way to control circuits in various electronic projects. Their simplicity makes them ideal for beginners while providing enough versatility for more complex applications. Whether you're building a basic circuit or integrating them into larger systems, understanding how to wire and utilize slide switches can enhance your electronic projects significantly.
SPST switches control one circuit with two positions (ON/OFF), while SPDT switches can connect one input to one of two outputs.
Most slide switches are designed for low voltage applications; however, some industrial-grade switches can handle higher voltages.
Determine your project requirements—how many circuits you need to control and whether you need multiple outputs.
Most standard slide switches are not waterproof; however, there are specialized versions available that offer water resistance.
Yes, multiple slide switches can be used in a single circuit depending on your design needs; just ensure they are wired correctly.
