Slide switches are essential components in electronics, allowing users to control the flow of current in a circuit with ease. They are widely used in various applications, from simple DIY projects to complex electronic devices. In this article, we will explore how to effectively use slide switches with Arduino, covering wiring, coding, and practical applications. We will also include diagrams and images to enhance understanding.
To get started with using a slide switch in your Arduino project, you will need the following components:
- Arduino Uno board
- USB cable for programming
- Resistor (220Ω)
- LED (any color)
- Slide switch
- Breadboard
- Connecting wires
Slide switches are mechanical devices that allow or interrupt the flow of current by sliding a handle. They come in various types, including:
- Single Pole Single Throw (SPST): A simple on/off switch.
- Single Pole Double Throw (SPDT): Can connect one input to one of two outputs.
- Double Pole Double Throw (DPDT): Can control two circuits simultaneously.
A slide switch typically has three terminals: one fixed terminal and two movable terminals. The middle pin is connected to the power supply (VCC), while the other two pins connect based on the switch's position. This allows for toggling between two states.

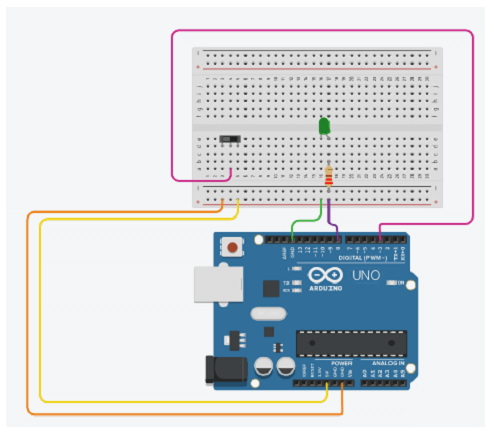

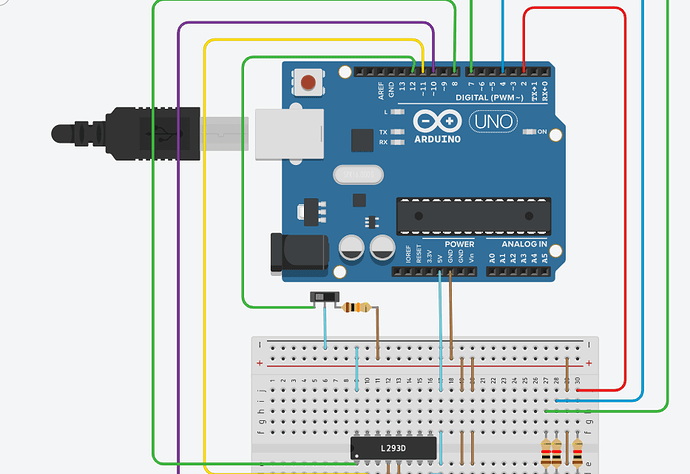

To wire a slide switch with an Arduino, follow these steps:
1. Connect the Middle Pin: Attach the middle pin of the slide switch to VCC (5V).
2. Connect One Side Pin: Connect one of the side pins to a digital pin on the Arduino (e.g., pin 12).
3. Add a Resistor: Use a 10KΩ resistor connected to GND for signal stabilization.
4. Connect an LED: Attach an LED to another digital pin (e.g., pin 6) with a current-limiting resistor.
5. Complete the Circuit: Ensure all components are connected properly on the breadboard.
In this code:
- We define `switchPin` and `ledPin` for easy reference.
- In the `setup()` function, we initialize the pins.
- The `loop()` function continuously checks the state of the slide switch. If it is HIGH (on), it turns on the LED; if LOW (off), it turns off the LED.
Slide switches can be used in various practical applications:
- Controlling LEDs: Easily toggle LEDs on and off using a slide switch.
- User Input: Implement slide switches as user inputs in interactive projects.
- Circuit Control: Use slide switches to manage different parts of a circuit efficiently.
Beyond simple LED control, slide switches can be integrated into more complex systems:
- Mode Selection: Use multiple slide switches to select different operational modes for devices like robots or automated systems.
Imagine building a robot that can operate in different modes such as "Manual" and "Automatic". By integrating slide switches, users can easily toggle between these modes without needing complex software interfaces.
In audio or communication circuits, slide switches can route signals between different pathways. This is particularly useful in audio mixing boards or communication devices where multiple input sources need to be selected.
In an audio mixing setup, you could use a DPDT slide switch to select between different audio sources. This allows for seamless switching without interrupting audio playback.
When working with slide switches and Arduino, you may encounter some common issues:
1. Switch Not Responding: Ensure that connections are secure and that you are using pull-up or pull-down resistors as needed.
2. LED Flickering: This could be due to bouncing signals from the switch. Implementing debounce logic in your code can help stabilize readings.
3. Incorrect Readings: Verify that you have correctly identified which pins correspond to which positions of your slide switch.
To ensure optimal performance and longevity of your projects involving slide switches, consider these best practices:
- Choose Quality Components: Invest in high-quality slide switches that can withstand frequent use without failure.
- Proper Mounting: Ensure that your slide switches are mounted securely within your project enclosure to prevent accidental toggling.
- Regular Maintenance: Periodically check connections and clean contacts if necessary to maintain reliability.
Slide switches are versatile components that simplify circuit control in electronic projects. By integrating them with Arduino, you can create interactive applications that respond effectively to user inputs. This guide provides a comprehensive overview of how to use slide switches with Arduino, from wiring and coding to practical uses and troubleshooting methods. With this knowledge, you can enhance your electronic skills and take on more complex projects confidently.
A slide switch is a mechanical device that allows or interrupts current flow by sliding its handle.
Connect the middle pin of the slide switch to VCC, one side pin to a digital pin on the Arduino, and the other side pin to GND.
Common types include SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), and DPDT (Double Pole Double Throw).
Slide switches are generally designed for low-voltage applications and may not be suitable for high-voltage circuits.
They can be used for controlling LEDs, as user inputs in projects, or managing different parts of electronic circuits.
