Tinkercad is a powerful online tool that allows users to design and simulate electronic circuits easily. One of the essential components you can use in Tinkercad is the slide switch. This article will guide you through the process of using a slide switch in Tinkercad, including its functionality, wiring, coding examples, and practical applications. By the end of this article, you will have a comprehensive understanding of how to effectively use slide switches in your projects.
A slide switch is a type of electrical switch that is operated by sliding a lever. Unlike momentary switches (like push buttons), which only stay on while pressed, slide switches maintain their position until manually changed. This makes them ideal for applications where you want a circuit to remain on or off without continuous pressure.
- Three Terminals: A typical slide switch has three terminals:
- Common (C): The terminal where the current enters the switch.
- Terminal 1 (T1): Connects to one circuit path when the switch is in one position.
- Terminal 2 (T2): Connects to another circuit path when the switch is in the opposite position.
- Fixed Positions: The switch can be set to either connect Terminal 1 or Terminal 2 to the Common terminal, allowing for two different circuit paths.
To start using a slide switch in Tinkercad, follow these steps:
1. Create a New Circuit:
Log into Tinkercad and create a new circuit project.
2. Add Components:
You will need:
- A slide switch
- An LED
- A resistor (typically 220Ω)
- A power source (like a battery)
- Jumper wires
3. Place Components on Breadboard:
- Drag and drop your components onto the workspace.
- Arrange them so that they are easy to connect.

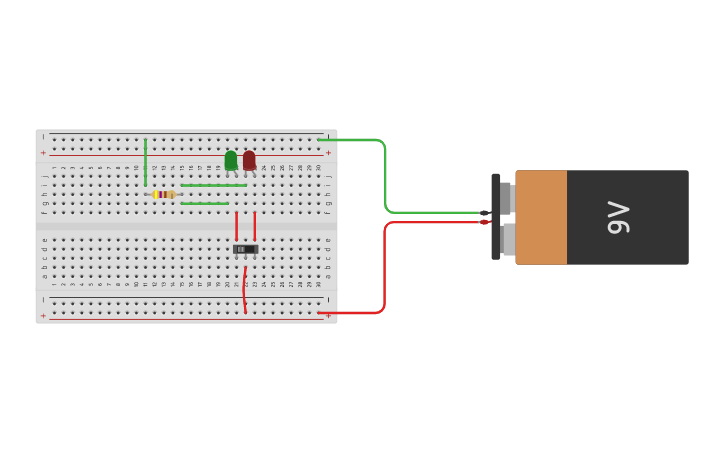

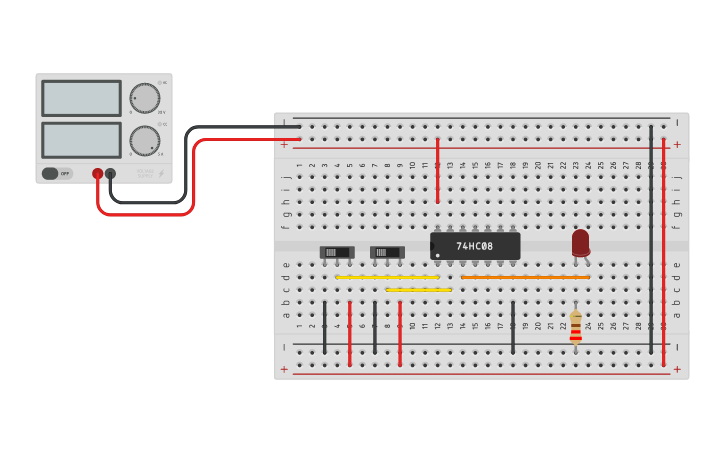

Here's how to wire your slide switch with an LED:
1. Connect the Common Terminal:
- Connect one end of your power source (positive terminal) to the Common terminal of the slide switch.
2. Connect Terminal 1:
- Connect Terminal 1 of the slide switch to the anode (long leg) of the LED.
3. Connect Resistor:
- Connect one end of the resistor to the cathode (short leg) of the LED.
- Connect the other end of the resistor to the ground (negative terminal) of your power source.
4. Connect Terminal 2 (Optional):
- If you want to create an alternative circuit, connect Terminal 2 to another component or LED.
Once everything is wired and coded:
1. Click on "Start Simulation" in Tinkercad.
2. Move the slide switch back and forth.
3. Observe whether the LED turns on and off as expected.
Slide switches can be used in various projects, including:
- Toys: To turn them on or off easily.
- LED Displays: To toggle between different light patterns or colors.
- Control Panels: For manual control in more complex electronic devices.
Using slide switches opens up many possibilities for more complex projects. Here are some ideas for advanced applications:

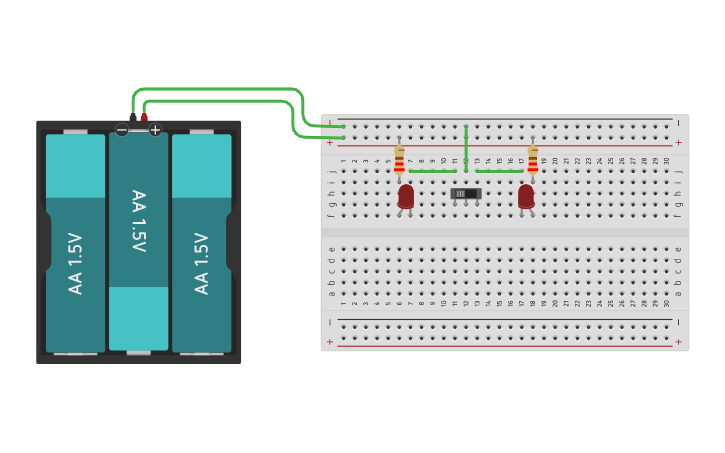

You can use a single slide switch to control multiple LEDs by connecting each LED to different terminals of the slide switch. This way, you can toggle between different LEDs based on the position of the switch.
1. Components Needed:
- Two LEDs (different colors)
- One resistor for each LED
- A slide switch
- A power source
2. Wiring Instructions:
- Connect each LED's anode to Terminal 1 and Terminal 2 respectively.
- Connect their cathodes through individual resistors to ground.
- The Common terminal connects to positive voltage.
This setup allows you to light one LED at a time depending on which way you slide the switch.
You can also integrate a slide switch into an alarm system project where it acts as an arm/disarm mechanism for your alarm:
1. Components Needed:
- A piezo buzzer
- A slide switch
- An LED as an indicator
- Resistors and power source as needed
2. Wiring Instructions:
- Connect one terminal of the buzzer to ground and another terminal to one side of the slide switch.
- The other side connects back to positive voltage.
- Use an LED connected parallelly with appropriate resistors for visual indication when armed.
This setup allows you to turn on/off an alarm system simply by sliding the switch.
While working with slide switches in Tinkercad, you may encounter some common issues:
- Switch Not Responding: Ensure that all connections are secure and that you have correctly identified which terminal is Common versus T1 and T2.
- Floating Inputs: If your circuit does not behave as expected, consider using pull-up or pull-down resistors on your input pins to stabilize readings from your switches.
- Simulation Lag: Sometimes simulations may lag or not respond immediately due to browser performance; ensure you're using an updated browser for optimal performance.
When working with circuits involving slide switches, it's essential to understand how they affect current flow:
- When a slide switch is in one position, it completes a circuit allowing current to flow through connected components (like LEDs).
- In its alternate position, it interrupts that flow, effectively turning off those components.
This behavior makes it crucial for designers and hobbyists alike to carefully plan their circuits around how they want their switches to function—whether they want them as simple toggles or part of more complex logic systems involving multiple outputs.
Using slide switches in Tinkercad is straightforward and offers flexibility in designing circuits that require manual control over different paths. Their ability to maintain their position makes them suitable for various applications in electronics projects. From simple circuits controlling LEDs to more complex systems like alarms or multi-LED setups, understanding how to use these switches enhances your ability as an electronics designer.
A slide switch is used to control electrical circuits by connecting or disconnecting current flow through its terminals.
Connect one terminal to your power source's positive side, another terminal to your load (like an LED), and ground your load through a resistor.
Yes, you can wire multiple LEDs by connecting them through different terminals of the slide switch for different lighting effects.
Connecting all three terminals may cause short circuits or improper functioning since it bypasses normal operation logic.
Check all connections for proper placement and ensure that your code corresponds correctly with your hardware setup.
