Wiring a 12-volt micro switch is a straightforward process that can be accomplished with some basic tools and materials. Micro switches are commonly used in various applications, including automotive systems, appliances, and control panels. This guide will provide you with detailed instructions on how to wire a 12-volt micro switch, including diagrams, tips for successful installation, and troubleshooting advice.

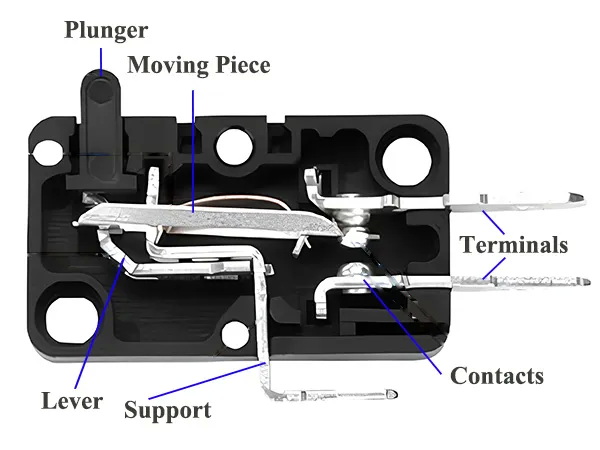

A micro switch typically has three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). The configuration of these terminals allows the switch to either complete or break a circuit based on its position.
- Common (C): This terminal is the main connection point for the power source.
- Normally Open (NO): This terminal allows current to flow when the switch is activated.
- Normally Closed (NC): This terminal allows current to flow until the switch is activated, at which point the circuit is broken.
Micro switches are designed to provide reliable performance in various environments. They are often used in applications where space is limited due to their compact size. Understanding how these switches operate is crucial for effective wiring and troubleshooting.
Before you begin wiring your micro switch, gather the following tools and materials:
- Micro switch
- Wire (appropriate gauge for your application)
- Wire strippers
- Electrical tape or heat shrink tubing
- Soldering iron (if soldering connections)
- Multimeter (for testing connections)
- Screwdriver (for securing connections)
- Heat gun (if using heat shrink tubing)
Start by cutting two lengths of wire suitable for your application. The wire gauge should match the current requirements of your circuit. Strip about 1/4 inch of insulation from both ends of each wire using wire strippers.
1. Common (C)
2. Normally Open (NO)
3. Normally Closed (NC)
Understanding these terminals will help you connect them correctly based on your intended application.
Depending on your application, you will connect the wires differently:
- For Normally Open Configuration:
- Connect one wire from your power source to the Common (C) terminal.
- Connect the second wire from the Normally Open (NO) terminal to your load (the device you want to control).
This configuration is ideal for applications where you want the device to operate only when the switch is pressed.
- For Normally Closed Configuration:
- Connect one wire from your power source to the Common (C) terminal.
- Connect the second wire from the Normally Closed (NC) terminal to your load.
This setup is useful in safety applications where you want a device to operate unless intentionally interrupted.

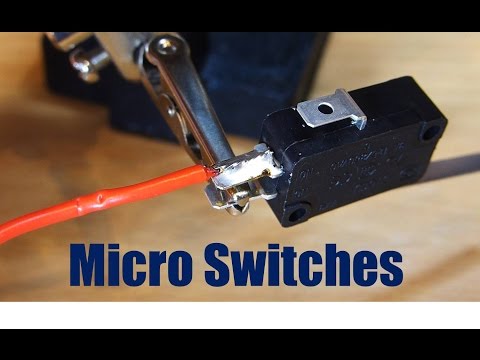

After making your connections, use electrical tape or heat shrink tubing to insulate any exposed wire. This step is crucial for preventing short circuits and ensuring safety. If using heat shrink tubing, slide it over the connection before soldering or securing it. After making your connection, use a heat gun to shrink it tightly around the wires.
Once everything is connected and insulated, it's time to test your micro switch. Use a multimeter to check if the circuit completes when the switch is activated.
1. Set your multimeter to continuity mode.
2. Probe the Common terminal and either NO or NC terminal as per your configuration.
3. Activate the switch and check if there's continuity.
If everything works as expected, you're ready for installation!
Micro switches are versatile components used in various applications such as:
- Home Appliances: Used in washing machines, microwaves, refrigerators, and other household devices where precise control is necessary.
- Automotive: Utilized in car doors, hoods, trunk latches, and seatbelt reminders for safety features.
- Industrial Equipment: Employed in conveyor belts, safety equipment, and machinery where reliable operation is critical.
- Consumer Electronics: Found in devices like remote controls and gaming consoles where user interaction requires precise feedback.
Micro switches offer several advantages that make them popular in many applications:
- Reliability: They provide consistent performance over time with minimal wear due to their mechanical design.
- Compact Size: Their small footprint allows them to fit into tight spaces without compromising functionality.
- Versatile Functionality: They can be configured in various ways (NO or NC) depending on application needs.
- Cost-effective: Generally inexpensive compared to other types of switches while providing excellent performance.
If your micro switch does not work as expected:
- Double-check all connections for security and proper placement.
- Ensure that you are using the correct voltage rating for your switch.
- Test the switch with a multimeter to verify functionality.
- Inspect for any physical damage or wear that may affect operation.
When working with electrical components like micro switches, always follow safety precautions:
1. Ensure that power is disconnected before starting any wiring work.
2. Use insulated tools whenever possible.
3. Avoid working in wet or damp conditions that could lead to electrical hazards.
4. If unsure about any step, consult a professional electrician or technician.
Wiring a 12-volt micro switch is a simple yet essential task that can enhance many electronic systems. By following this guide, you can ensure that your wiring is done correctly and safely. Always remember to take necessary precautions when working with electrical components. With proper installation and understanding of micro switches' functionality, you can effectively control various devices in both home and industrial settings.
Micro switches are used in various applications where precise control of electrical circuits is needed, such as in appliances, automotive systems, and industrial machinery.
You can test a micro switch using a multimeter. If it does not show continuity when activated or fails to complete a circuit when required, it may be faulty.
It's best to use wires that are appropriate for your specific application in terms of gauge and insulation type to ensure safety and functionality.
Incorrect wiring can lead to malfunctioning devices or even damage components due to short circuits or overloads.
Basic tools such as wire strippers, soldering iron (if soldering), and electrical tape are typically sufficient for wiring a micro switch.
