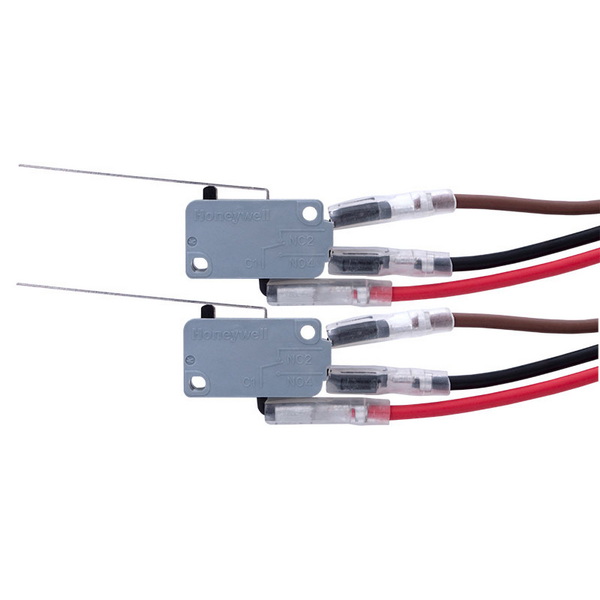

Wiring a micro switch is a fundamental skill in electronics and electrical engineering. Micro switches, known for their reliability and quick response, are used in various applications, from household appliances to complex machinery. This comprehensive guide will walk you through the steps of wiring a micro switch, including preparation, connection methods, and troubleshooting tips.
A micro switch is a small, snap-action switch that operates with minimal physical force. It typically features three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC). The switch allows current to flow through the circuit when activated, making it ideal for controlling devices like lights, motors, and alarms.
Micro switches are widely used due to their low cost and high durability, often exceeding 1 million cycles of operation. They are commonly found in applications such as door interlocks on microwave ovens, safety switches in elevators, vending machines, and even in complex industrial automation systems.
Before you start wiring a micro switch, gather the following tools and materials:
- Micro switch
- Insulated wire
- Wire strippers
- Screwdriver
- Soldering iron and solder (if needed)
- Heat shrink tubing or electrical tape
- Multimeter (for testing)
To wire a micro switch correctly, it's essential to understand its terminal configuration:
- Common (COM): This terminal is the central point of the circuit.
- Normally Open (NO): This terminal allows current to flow only when the switch is activated.
- Normally Closed (NC): This terminal allows current to flow when the switch is not activated.
Understanding these configurations helps in selecting how you want your circuit to behave when the switch is pressed or released.
Use wire strippers to remove insulation from both ends of your wires. Make sure to expose enough copper wire to connect securely to the terminals without risking short circuits.
Depending on your application and preferences, you can connect the wires in several ways:
- Screw Terminals: Wrap stripped wire around screws on the micro switch and tighten them securely.
- Quick Connect Terminals: Insert stripped wires into quick connect terminals for easy assembly.
- Soldering: For a more permanent connection, solder the wires directly to the terminals. Ensure that you do not overheat the micro switch during this process.
1. Connect Power Source: Attach the positive wire from your power source to the Common terminal (COM).
2. Connect Load Device:
- For Normally Open configuration: Connect the load device's positive wire to the NO terminal.
- For Normally Closed configuration: Connect it to the NC terminal.
3. Complete Circuit: Connect the negative wire from your load device back to the power source's negative terminal.
Ensure all connections are secure. If using soldering or heat shrink tubing, make sure that no exposed wires are left that could cause short circuits.
After completing your wiring setup:
1. Turn on the power supply.
2. Activate the micro switch by pressing it.
3. Use a multimeter to check if current flows through as expected.
If everything works correctly, your micro switch is wired successfully!
Even with careful wiring, issues can arise. Here are some common problems and their solutions:
Symptom: The micro switch does not consistently actuate.
Solution: Check for loose connections at the terminals. Ensure that wires are securely fastened and contacts are corrosion-free.
Symptom: The micro switch does not change state when pressed.
Solution: Verify the mechanical operation of the micro switch by pressing its actuator and listening for a clicking sound.
Symptom: The device operates opposite expected behavior (e.g., stays on when it should be off).
Solution: Double-check your wiring configuration against the micro switch diagram.
Symptom: The micro switch emits an odor or shows signs of burning.
Solution: This could indicate that too much current is flowing through it. Check your load against the specifications of the micro switch.
Symptom: Reduced responsiveness over time.
Solution: Mechanical wear can affect performance; consider replacing it if it has been used extensively.
For more complex applications, advanced wiring techniques may be required:
Parallel wiring allows multiple micro switches to control a single load. This configuration is useful in applications where redundancy is required for safety or reliability.
Series wiring connects multiple micro switches in a sequence, ensuring that all switches must be actuated for the circuit to complete. This is often used in safety systems where multiple conditions must be met for operation.
Micro switches can be integrated with control systems such as programmable logic controllers (PLCs) or microcontrollers. This allows for more sophisticated control and automation in industrial applications.
Micro switches have two main areas of application:
- Low Operating Force Needs: They are used when a low operating force with a clearly defined action is needed.
- Long-Term Reliability Requirements: Due to their internal mechanism's design, they provide long-term reliability essential for various devices like vending machines, safety interlocks in elevators, and even robotics applications.
Common applications include:
- Door interlocks on microwave ovens
- Leveling and safety switches in elevators
- Vending machines
- Arcade buttons
- Detecting paper jams or faults in photocopiers
- Tamper switches on gate valves in fire sprinkler systems
Wiring a micro switch may seem daunting at first, but with proper understanding and careful execution, it can be accomplished easily. By following this guide, you can ensure reliable operation in your electronic projects or repairs. Understanding how these switches work will allow you to integrate them effectively into various applications while maintaining safety standards.
Micro switches come in various types including SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), DPST (Double Pole Single Throw), and DPDT (Double Pole Double Throw).
It's best to use insulated wire that matches your current requirements for safety and effectiveness.
Test it with a multimeter; if it does not show continuity when pressed, it may need replacement.
No, soldering is optional; quick connect or screw terminals can also provide secure connections depending on your needs.
Always disconnect power before working on electrical components to avoid electric shock or damage to devices.
