Wiring a push switch can seem daunting, especially for beginners. However, with the right guidance and understanding of the components involved, it can be a straightforward process. This article will provide a comprehensive guide on how to wire different types of push switches, including step-by-step instructions, diagrams, and tips for successful installation.
Push switches are commonly used in various applications, from simple household devices to complex machinery. They come in different configurations, including momentary and latching switches.
- Momentary Push Switch: This type of switch only completes the circuit while the button is pressed.
- Latching Push Switch: This switch toggles the circuit on or off with each press.
Before diving into the wiring process, it's essential to familiarize yourself with the components of a push switch:
- Common (C): The terminal that connects to the power source.
- Normally Open (NO): The terminal that connects to the load when the switch is pressed.
- Normally Closed (NC): The terminal that connects to the load when the switch is not pressed.
To wire a push switch, you will need:
- A push button switch
- Wire strippers
- Electrical tape
- A multimeter (for testing)
- Soldering iron (optional)
- Wires (appropriate gauge based on your application)
Before starting any electrical work, ensure that the power supply is turned off. This will prevent any electrical shocks or damage to your components.
Most push switches have two or more terminals. For a basic two-pin switch:
- One terminal is for power input.
- The other terminal connects to the device you want to control.
For more complex switches (like four or five pins), refer to the manufacturer's diagram.
To wire a two-pin push button switch:
1. Connect Power: Connect one wire from your power source (positive) to one terminal of the switch.
2. Connect Load: Connect another wire from the other terminal of the switch to your load (e.g., an LED or motor).
3. Complete the Circuit: Connect the negative side of your load back to the negative side of your power source.
This setup allows current to flow through your load when you press the button.
For a four-pin push button switch, typically used for devices with an LED indicator:
1. Connect Power: Connect one of the NO terminals to the positive side of your power source.
2. Connect Load: Connect the other NO terminal to one side of your load.
3. Connect LED:
- Connect LED positive terminal (+) to one NO terminal.
- Connect LED negative terminal (-) back to ground.
This configuration allows both your device and LED indicator to function simultaneously when pressed.
Five-pin switches offer more versatility:
1. Common Terminal: Connect this pin to your power source's positive side.
2. NO Terminal: Connect this pin to your device's positive side.
3. LED Connections:
- Connect LED (+) pin to NO.
- Connect LED (-) pin back to ground.
This allows for various configurations depending on whether you want your LED indicator on while the device is active or vice versa.
Once you have completed wiring your push switch, it's crucial to test it before finalizing everything:
1. Turn on the power supply.
2. Press the button and observe if your device activates as expected.
3. If using an LED, check if it lights up accordingly.
If something doesn't work as intended, double-check your connections against your wiring diagram.
- Always use wires of appropriate gauge for your application.
- Secure all connections with electrical tape or soldering for reliability.
- Keep wires organized and avoid tangling them together.
- Label wires if necessary, especially in complex setups.
Push switches are versatile components used in various applications:
- Home Appliances: Used in devices like microwaves, washing machines, and coffee makers as start/stop buttons.
- Automotive Applications: Commonly found in car dashboards for functions like horn activation or window controls.
- Industrial Machinery: Used in control panels for starting or stopping machinery operations safely.
For those looking to integrate push switches into more complex circuits, consider these advanced techniques:

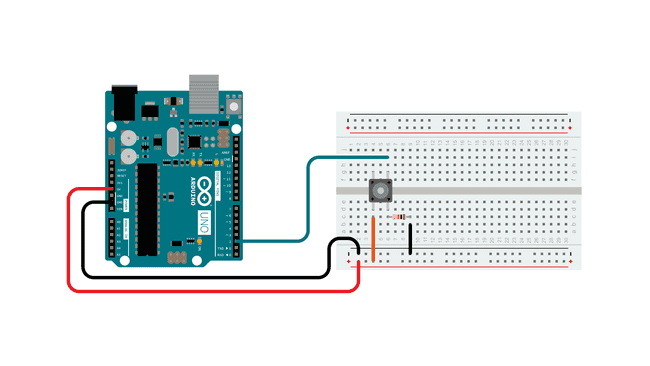

When wiring a momentary push button switch with microcontrollers like Arduino, using pull-up or pull-down resistors can help stabilize input readings:
1. Pull-Up Resistor Configuration:
- Connect one end of the button to ground and the other end to a digital input pin on your microcontroller.
- Use an internal pull-up resistor (if available) or an external resistor connected between Vcc and the input pin.
2. Pull-Down Resistor Configuration:
- Connect one end of the button to Vcc and the other end to ground via a resistor.
- The digital input pin reads LOW when unpressed and HIGH when pressed.
This configuration helps avoid floating states that can cause erratic behavior in digital circuits[1].
If you encounter problems while wiring or using push switches, consider these troubleshooting steps:
- Check Connections: Ensure all wires are securely connected according to your wiring diagram.
- Test Voltage Levels: Use a multimeter to verify that voltage is present at various points in your circuit.
- Inspect Components: Look for damaged switches or worn-out wires that may need replacement.
Wiring a push switch is an essential skill for anyone interested in electronics or DIY projects. By understanding how different types of switches work and following proper wiring techniques, you can successfully integrate these switches into various applications. Remember always to prioritize safety and test thoroughly after installation.
NO (Normally Open) terminals allow current flow only when activated, while NC (Normally Closed) terminals allow current flow until activated.
Yes, but ensure that the switch is rated for high voltage use and follow safety precautions during installation.
Refer to your switch's wiring diagram provided by the manufacturer; it will indicate which terminals are which.
You will need wire strippers, electrical tape, and possibly a soldering iron for secure connections.
If you are unsure about electrical work, it's best to consult with someone experienced or seek professional help to avoid hazards.
