Wiring a slide switch can seem intimidating at first, but with the right guidance, it becomes a straightforward task. Slide switches are commonly used in various electronic devices to control the flow of electricity. This article will provide you with a comprehensive guide on how to wire different types of slide switches, including SPST, SPDT, DPST, and DPDT configurations.
Slide switches are mechanical devices that control electrical circuits through a sliding action. They come in various configurations:
- SPST (Single Pole Single Throw): This is the simplest type of switch, which either connects or disconnects a single circuit.
- SPDT (Single Pole Double Throw): This switch can route a single input to one of two outputs.
- DPST (Double Pole Single Throw): This type controls two separate circuits simultaneously.
- DPDT (Double Pole Double Throw): This switch allows you to control two circuits and toggle between two outputs for each.
Understanding these basic types is crucial for correctly wiring your slide switch.
To wire a slide switch effectively, you'll need the following tools:
- Wire Stripper: To remove insulation from the wires.
- Soldering Iron: For making permanent and secure connections.
- Heat Shrink Tubing: To insulate and protect the connections.
- Multimeter: To test and verify your connections before powering the circuit.
- Needle-nose Pliers: Useful for maneuvering small components in tight spaces.
- Screwdriver: If your slide switch needs to be mounted or secured in place.
The SPST slide switch is the most basic type and is often used for simple on/off functions. Here's how to wire it:
1. Identify the Terminals: An SPST switch typically has two terminals.
2. Connect the Power Source: Connect one terminal to the positive lead of your power source.
3. Connect the Load: Connect the other terminal to the device you want to control (like an LED or motor).
4. Complete the Circuit: When the switch is in the "on" position, it completes the circuit, allowing current to flow through and power the connected device. In the "off" position, the circuit is broken.
The SPDT slide switch can connect one input to one of two outputs. Here's how to wire it:
1. Identify the Terminals: An SPDT switch has three terminals: one common terminal and two output terminals.
2. Connect the Common Terminal: Connect the common terminal (usually in the center) to your power source.
3. Connect Output Devices: Connect each of the outer terminals to different devices you wish to control.
4. Functionality: In this configuration, when you toggle the switch, it connects the common terminal to either of the output terminals while disconnecting from the other.
The DPST slide switch controls two separate circuits simultaneously. Here's how you can wire it:
1. Identify Terminals: A DPST switch has four terminals—two pairs for each circuit.
2. Connect Each Circuit: Connect one pair of terminals to your first circuit and the other pair to your second circuit.
3. Power Source Connection: Ensure that both circuits are connected properly so that when you toggle the switch, both circuits are turned on or off together.
The DPDT slide switch allows you to control two circuits and toggle between two outputs for each circuit. Here's how to wire it:
1. Identify Terminals: A DPDT switch has six terminals—two pairs for each of its two circuits.
2. Connect Circuits: Connect each pair of terminals to their respective circuits.
3. Power Source Connection: Connect your power source to the middle terminals (common) of each pair.
4. Functionality: This setup allows you to toggle between different configurations for both circuits based on the position of the slide switch.
- Always ensure that your power source is turned off before beginning any wiring.
- Use appropriate gauge wires based on your circuit's requirements.
- Double-check connections before powering up your circuit to avoid short circuits or damage.

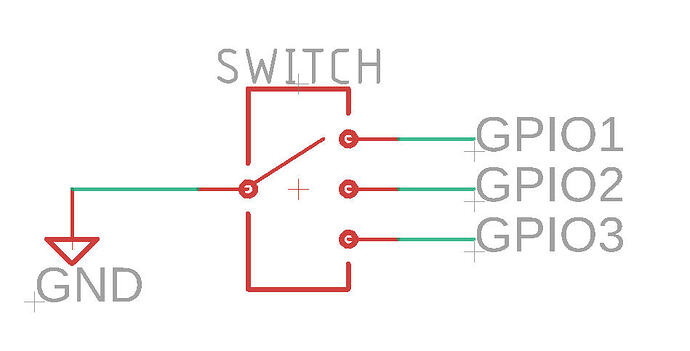

- If using a microcontroller like Arduino, remember to set up your pins correctly in your code according to how you've wired your switches.
Slide switches are versatile components used in various applications across different fields:
- Consumer Electronics: Commonly found in toys, remote controls, and small appliances where simple on/off functionality is needed.
- Industrial Equipment: Used in machinery and control panels where users need reliable manual control over operations.
- DIY Projects: Popular among hobbyists and electronics enthusiasts for prototyping and custom builds due to their simplicity and ease of use.
- Automotive Applications: Often used in car dashboards for controlling lights or other electronic systems within vehicles.
Even with proper wiring, issues may arise with slide switches. Here are some common problems and solutions:
- Switch Not Responding: Check if all connections are secure and that there is no break in continuity using a multimeter.
- Intermittent Functionality: This may be due to dirt or debris inside the switch; cleaning it carefully can sometimes resolve this issue.
- Overheating: Ensure that you are not exceeding the voltage or current ratings specified for your slide switch; using an appropriate rating is crucial.
Wiring slide switches is an essential skill in electronics that allows you to control various devices efficiently. By understanding different types of switches and their wiring configurations, you can create versatile and functional electronic projects. Whether you're working on simple devices or more complex systems, mastering slide switch wiring will enhance your electronic skills significantly.
An SPST (Single Pole Single Throw) slide switch is a basic type of switch that connects or disconnects a single circuit.
In an SPDT (Single Pole Double Throw) switch, the middle terminal is usually designated as common, connecting either of the outer terminals depending on its position.
While some slide switches can handle higher voltages, always check their specifications before using them in high voltage applications to prevent damage or hazards.
Incorrect wiring can lead to short circuits or failure of components in your circuit; always double-check connections against wiring diagrams before powering up.
Yes, when using slide switches with microcontrollers like Arduino, ensure proper pull-up or pull-down resistors are used as needed and configure pins correctly in your code.
