Wiring a Single Pole Double Throw (SPDT) slide switch can seem complex at first, but with the right guidance, it becomes a straightforward task. This article will provide you with a comprehensive understanding of how to wire an SPDT slide switch, including necessary tools, step-by-step instructions, and practical applications. Additionally, we will include images to illustrate the process and a conclusion summarizing the key points.

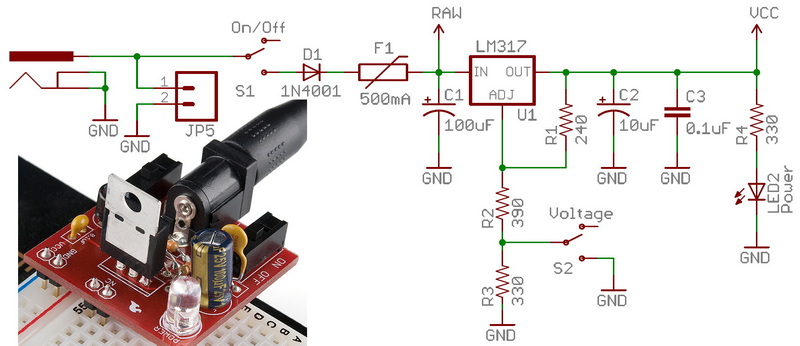

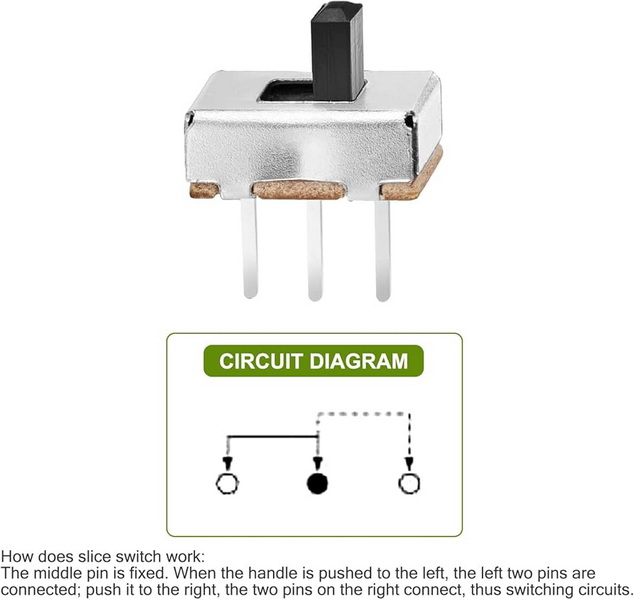

An SPDT switch is a type of electrical switch that has one input terminal and two output terminals. This allows it to connect the input to one of the two outputs at any given time. The switch typically has three pins: one common (C) and two others (A and B). When the switch is in one position, it connects the common pin to one of the outer pins; when in the other position, it connects to the other outer pin.
To wire an SPDT slide switch effectively, gather the following tools:
- Wire Stripper: To remove insulation from wires.
- Soldering Iron: For making secure connections.
- Heat Shrink Tubing: To insulate and protect connections.
- Multimeter: To test connections before powering the circuit.
- Needle-nose Pliers: Useful for maneuvering small components.
- Screwdriver: If your slide switch needs to be mounted.
Before you begin wiring, identify the pin configuration of your SPDT slide switch. Typically, you will find:
- Common (C): The middle pin
- Output A (A): One of the outer pins
- Output B (B): The other outer pin
Connect your power source (e.g., battery or power supply) to the common terminal (C). This is usually done by soldering or using jumper wires.
Connect your output devices (e.g., LEDs, motors) to the output terminals (A and B). For example:
- Connect one device to terminal A.
- Connect another device to terminal B.
Use a multimeter to test continuity between the common pin and each output pin when toggling the switch. This ensures that your connections are correct.
Once confirmed, secure all connections with heat shrink tubing or electrical tape to prevent short circuits.
SPDT slide switches are commonly used in various electronic applications such as:
- Lighting Control: Switching between two different light sources.
- Device Selection: Choosing between two operational modes in devices like radios or amplifiers.
- Signal Routing: Directing signals in communication devices.
Understanding different types of slide switches can help you choose the right one for your project:
| Type | Description |
|---|---|
| SPST | Single Pole Single Throw - Basic on/off functionality. |
| SPDT | Single Pole Double Throw - Routes a single input to one of two outputs. |
| DPST | Double Pole Single Throw - Controls two separate circuits simultaneously. |
| DPDT | Double Pole Double Throw - Controls two circuits with two outputs each. |
Using an SPDT slide switch offers several advantages:
- Compact Size: They are typically smaller than other types of switches, making them ideal for tight spaces.
- Ease of Use: Their sliding mechanism allows for quick toggling between states without confusion.
- Versatility: They can be used in various applications, from simple lighting controls to more complex electronic devices.
To further clarify how SPDT switches can be wired, here are a couple of examples:

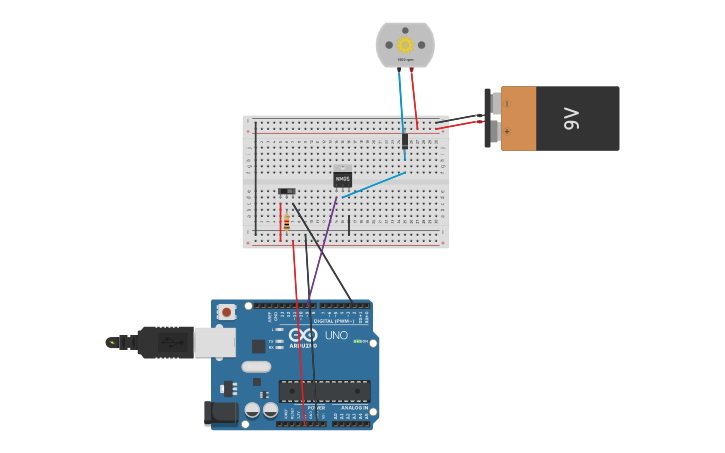

In this example, we will use an SPDT slide switch to control an LED connected to an Arduino.
1. Components Needed:
- Arduino Uno board
- USB cable
- Resistor (220Ω)
- LED
- Slide Switch
- Breadboard
2. Wiring Instructions:
- Connect the middle pin of the slide switch to a digital pin on your Arduino.
- Connect one outer pin to ground.
- Connect another outer pin through a resistor to VCC.
In model train setups, an SPDT slide switch can be used to route power between two tracks or control signals.
1. Connect your power source to the common terminal.
2. Route track A and track B connections to the respective outer terminals.
3. Toggle the switch to choose which track receives power.
Wiring an SPDT slide switch is a valuable skill for anyone involved in electronics. By understanding its configuration and following these steps, you can effectively control multiple circuits with a single switch. This guide has provided you with essential knowledge and visual aids to assist you in your wiring endeavors.
An SPDT slide switch is an electrical switch that connects one input terminal to one of two output terminals at any given time.
The common pin is typically located in the middle position of the three pins on an SPDT switch.
Yes, you can connect different devices to each output terminal of the SPDT slide switch.
If wired incorrectly, your circuit may not function as intended; it could lead to short circuits or devices not receiving power.
Yes, you can use an SPDT slide switch in Arduino projects by connecting it to digital pins for input readings.
