Wiring a Cylewet SPDT (Single Pole Double Throw) limit micro switch can seem daunting, but with a clear understanding of the components and steps involved, it becomes a straightforward task. This guide will provide you with a comprehensive overview of how to wire this type of micro switch, including necessary tools, wiring configurations, and practical applications.
The Cylewet SPDT micro switch features three terminals:
- Common (C): This terminal serves as the central point for the circuit.
- Normally Open (NO): This terminal allows current to flow when the switch is activated.
- Normally Closed (NC): This terminal allows current to flow when the switch is not activated.

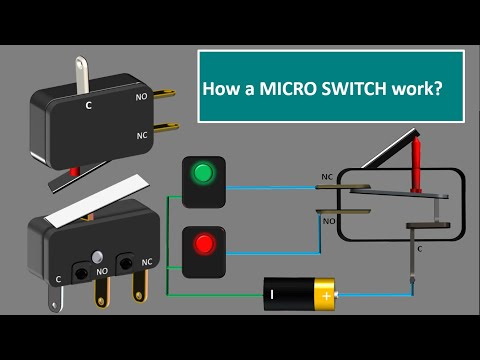

When the switch is pressed, the connection shifts from NC to NO, enabling control over two different circuits. This functionality makes SPDT switches particularly useful in various applications, such as automation systems, home appliances, and robotics.
Before starting the wiring process, gather the following tools and materials:
- Cylewet SPDT micro switch
- Insulated wires (appropriate gauge)
- Wire strippers
- Soldering iron (optional)
- Solder (optional)
- Electrical tape or heat shrink tubing
- Screwdriver
- Multimeter (for testing)
Having all these tools ready will streamline the wiring process and ensure that you can complete your project efficiently.
Begin by identifying the three terminals on your Cylewet micro switch. They are typically labeled on the switch housing:
- C (Common)
- NO (Normally Open)
- NC (Normally Closed)
Understanding these terminals is crucial for correct wiring. The common terminal is where you will connect your power source, while NO and NC determine how your circuit behaves when the switch is activated.
Using wire strippers, carefully strip about 1/4 inch of insulation from each end of your wires. Ensure that you have enough length to comfortably reach from your power source to the switch terminals.
When selecting wire gauge, consider the current that will pass through it. A thicker wire is necessary for higher currents to prevent overheating and potential hazards.
Depending on your application, you will connect wires to either the NO or NC terminals:
- For a Normally Open configuration:
- Connect one wire from your power source to the C terminal.
- Connect another wire from the NO terminal to your load (the device you want to control).
This setup means that when the switch is pressed, it completes the circuit and allows current to flow to your load.
- For a Normally Closed configuration:
- Connect one wire from your power source to the C terminal.
- Connect another wire from the NC terminal to your load.
In this case, when the switch is not pressed, current flows through NC to your load. Pressing the switch will interrupt this flow.
Once all connections are made, use electrical tape or heat shrink tubing to insulate them. This step is vital for preventing short circuits and ensuring safety. Proper insulation protects against accidental contact with conductive surfaces and helps maintain a reliable connection.
After wiring, it's essential to test the micro switch. Use a multimeter to check continuity between terminals when the switch is activated. Ensure that:
- The connection between C and NO is established when pressed.
- The connection between C and NC is established when not pressed.
Testing ensures that your wiring is correct and that the switch functions as intended before integrating it into your larger system.
Cylewet SPDT micro switches are versatile components used in various applications:
- Automation Systems: They can be used in conveyor belts and other automated machinery. In these systems, micro switches help detect positions of moving parts or control start/stop functions.
- Home Appliances: Many household devices utilize these switches for safety and operational control. For instance, washing machines often use limit switches to detect door closure or water levels.
- Robotics: In robotics, they help detect positions or states of moving parts. For example, robotic arms may use micro switches to determine when they have reached their maximum extension or retraction.
Using Cylewet SPDT micro switches offers several advantages:
- Compact Size: Their small footprint allows them to fit into tight spaces where larger switches would be impractical.
- Reliability: These switches are designed for long-term use with minimal wear and tear. They can handle millions of cycles without significant degradation in performance.
- Versatility: With both NO and NC options available, they can be used in a wide range of applications across different industries.
Even with proper wiring, issues may arise during operation. Here are some common problems and solutions:
1. Switch Does Not Activate
- Check if there is power reaching the common terminal.
- Ensure that connections are secure and not loose.
- Test with a multimeter for continuity issues.
2. Intermittent Operation
- Inspect for frayed wires or poor connections.
- Ensure that there's no debris obstructing the switch mechanism.
- Replace if necessary; sometimes mechanical failure can occur after extensive use.
3. Incorrect Circuit Behavior
- Verify that you have connected wires to the correct terminals (NO vs. NC).
- Double-check polarity if using DC power sources; incorrect polarity can lead to unexpected behavior.
Wiring a Cylewet SPDT limit micro switch is a manageable task with proper preparation and understanding of its components. By following this guide, you can ensure that your wiring is done correctly and safely. Always remember to test your connections before finalizing any project. With their versatility and reliability, Cylewet SPDT micro switches can enhance many applications in automation systems, home appliances, and robotics.
An SPDT micro switch is a type of switch that has three terminals: one common terminal and two switched terminals (normally open and normally closed). It allows for two different circuit paths depending on its position.
The choice between using NO or NC terminals depends on whether you want your device to be active when the switch is pressed (NO) or inactive when pressed (NC).
Yes, many SPDT micro switches, including those from Cylewet, are rated for higher voltages and can handle up to 125 volts and 1 ampere. Always check the specifications before use.
You will need insulated wires, wire strippers, a soldering iron (optional), electrical tape or heat shrink tubing, and possibly a multimeter for testing.
Use a multimeter to check continuity between terminals. When activated, there should be continuity between C and NO; when not activated, there should be continuity between C and NC.
