Micro switches, also known as snap-action switches, are small yet powerful components that play a crucial role in controlling electrical circuits. Their ability to quickly and reliably open or close a circuit makes them essential in various applications across industries, from household appliances to industrial machinery. This article will explore the function, construction, applications, and advantages of micro switches in detail.
A micro switch operates based on a mechanical action that allows it to complete or break an electrical circuit. When an external force is applied to the actuator (often a lever or button), it triggers the switch's internal mechanism, causing it to either connect or disconnect the circuit. This snap-action mechanism is what gives micro switches their name and enables them to operate effectively even with minimal physical movement.

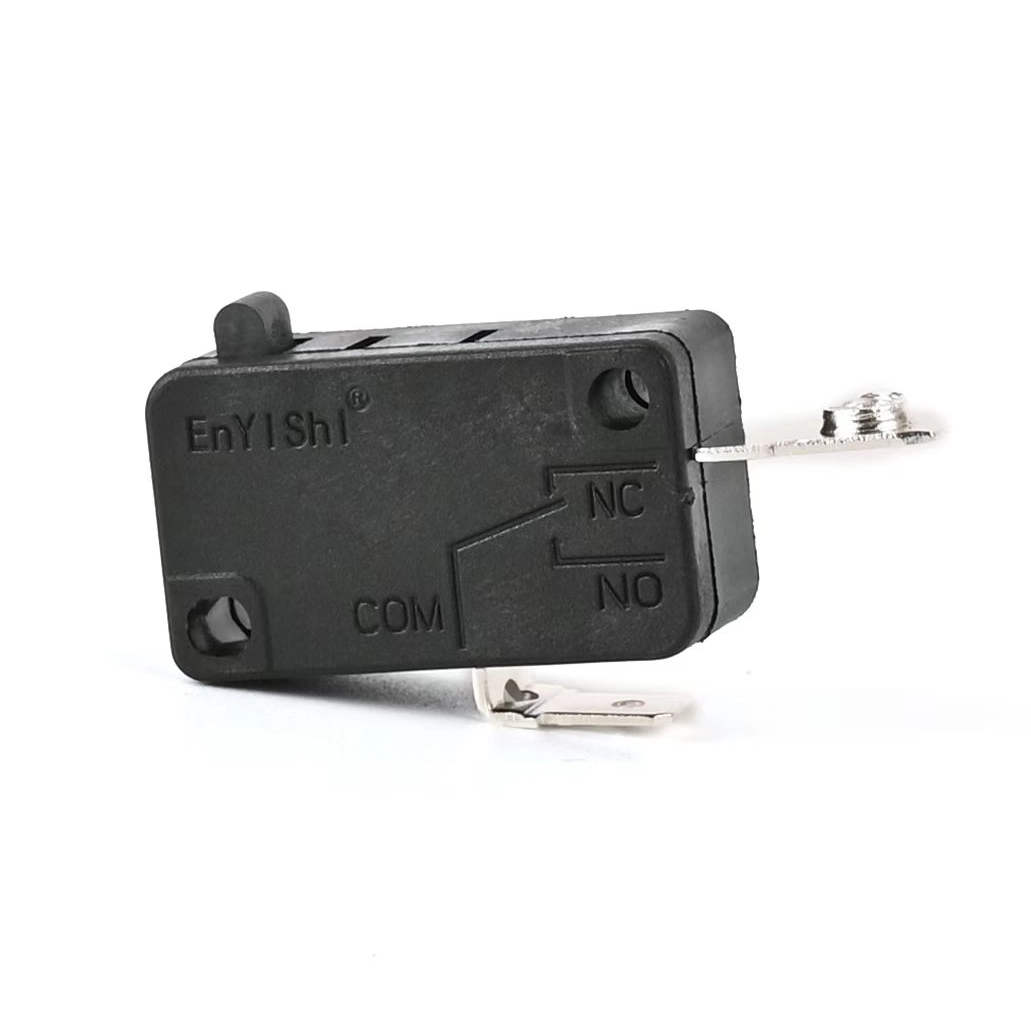

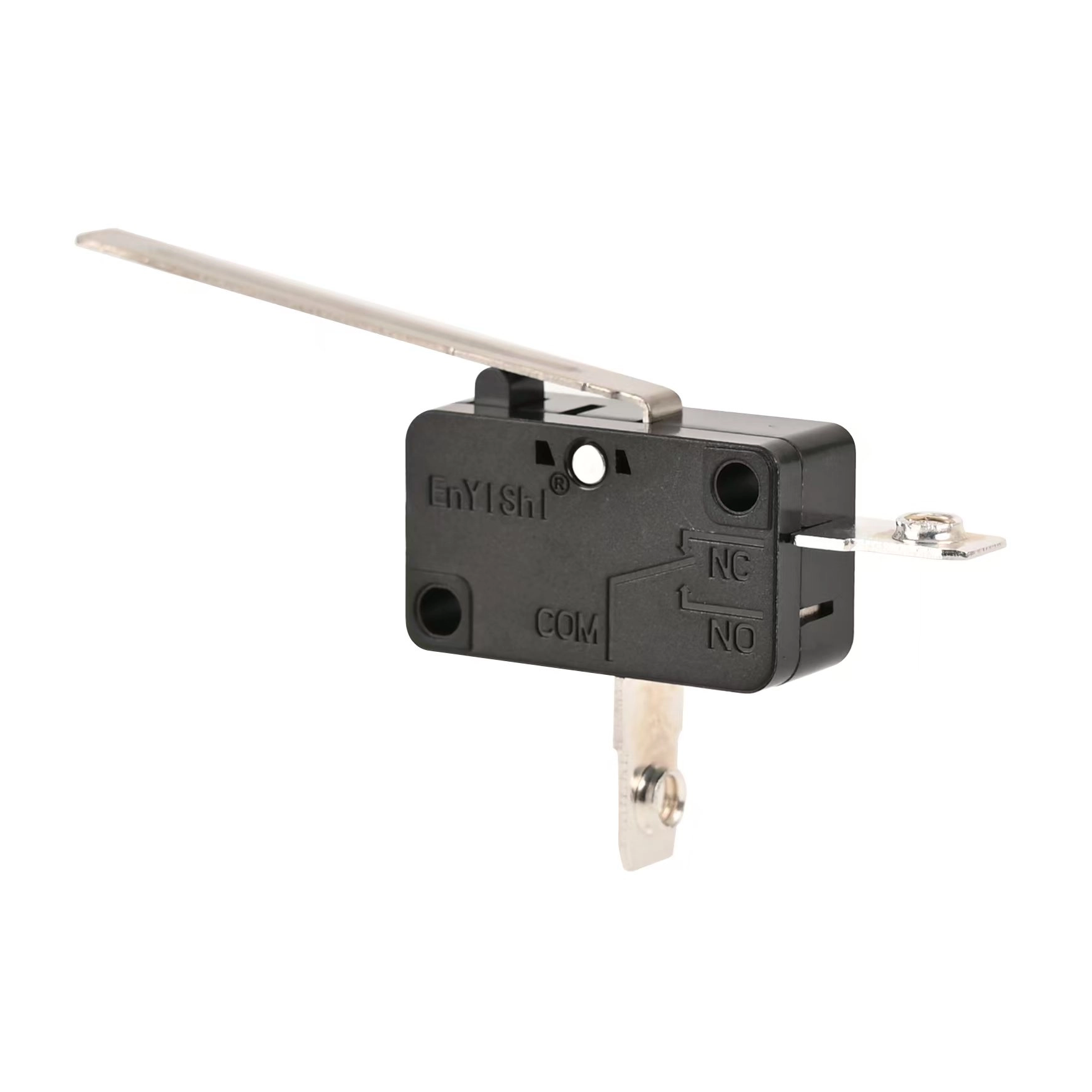

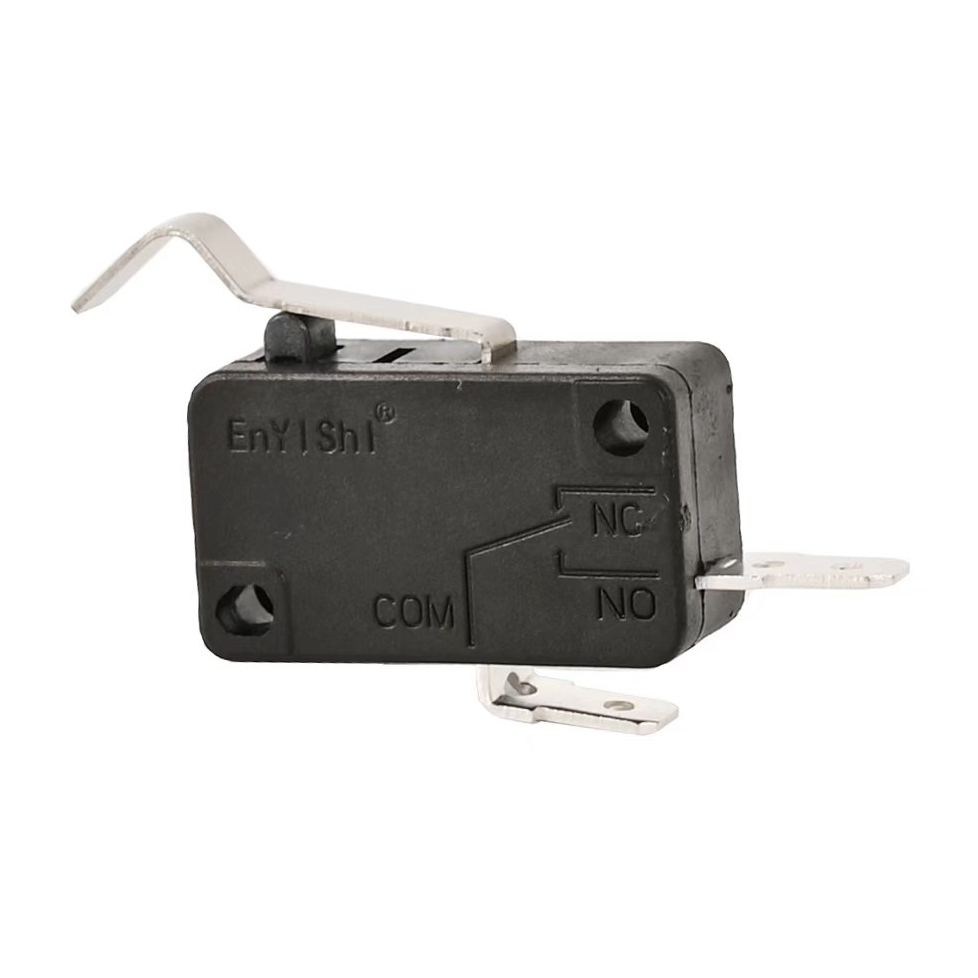

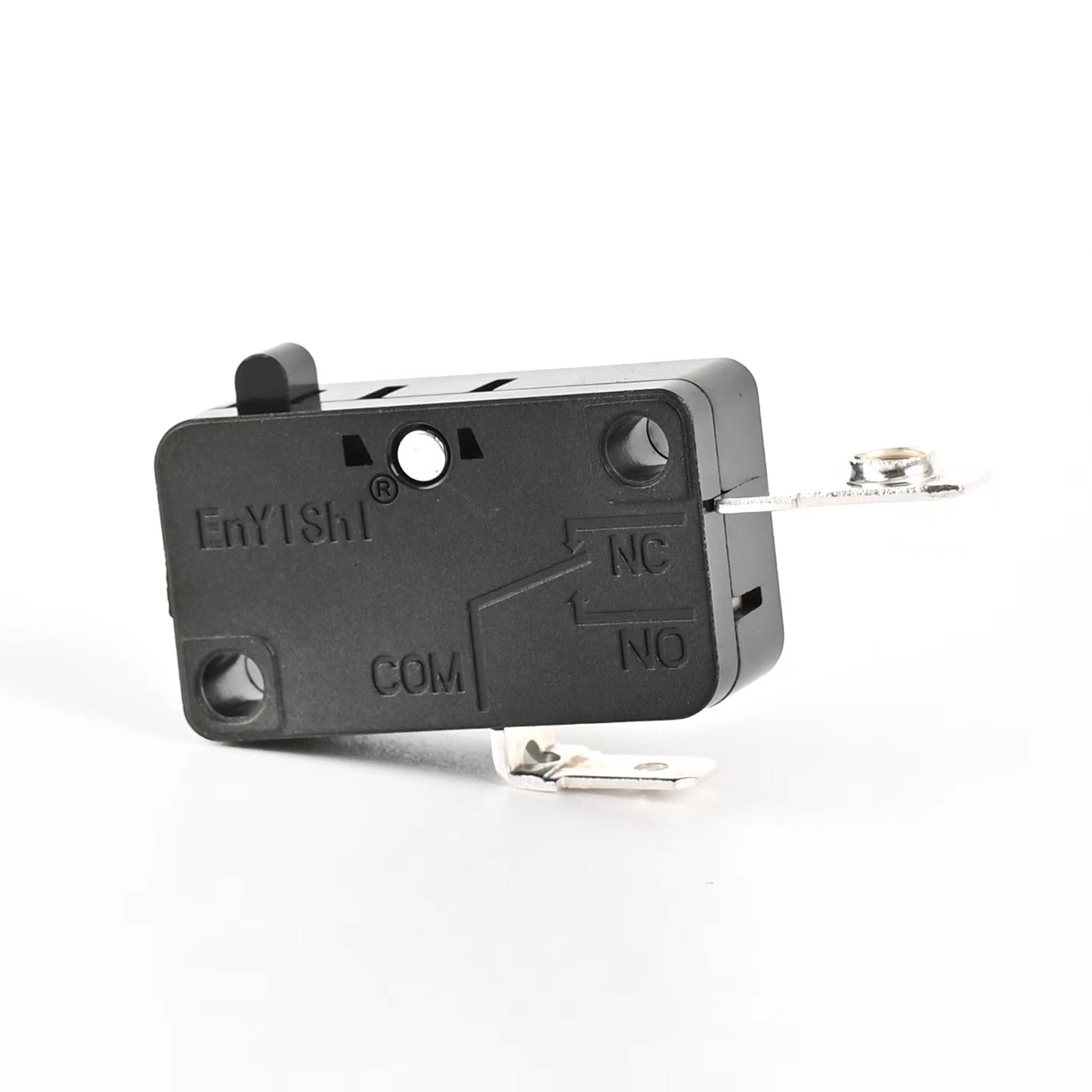

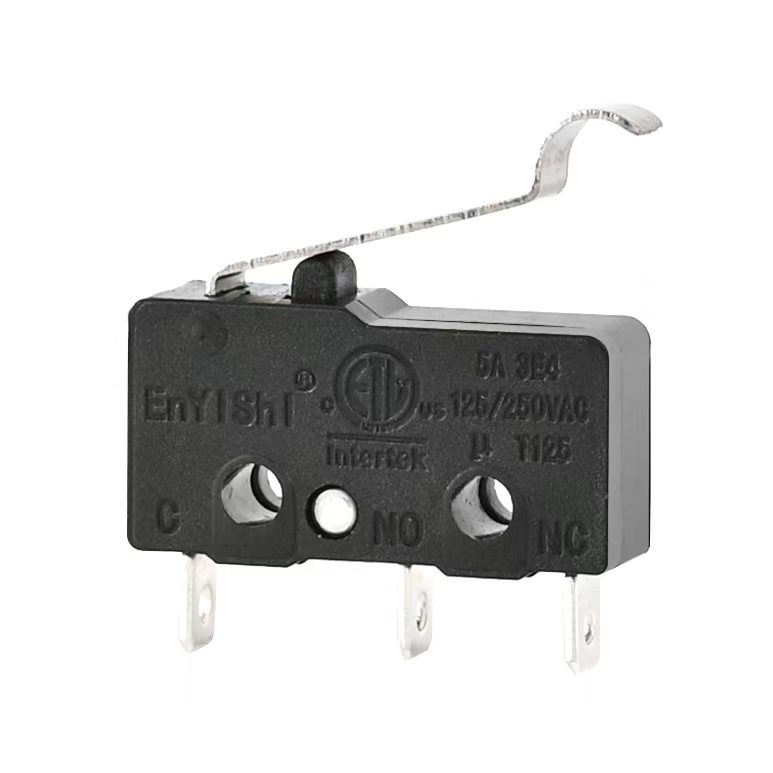

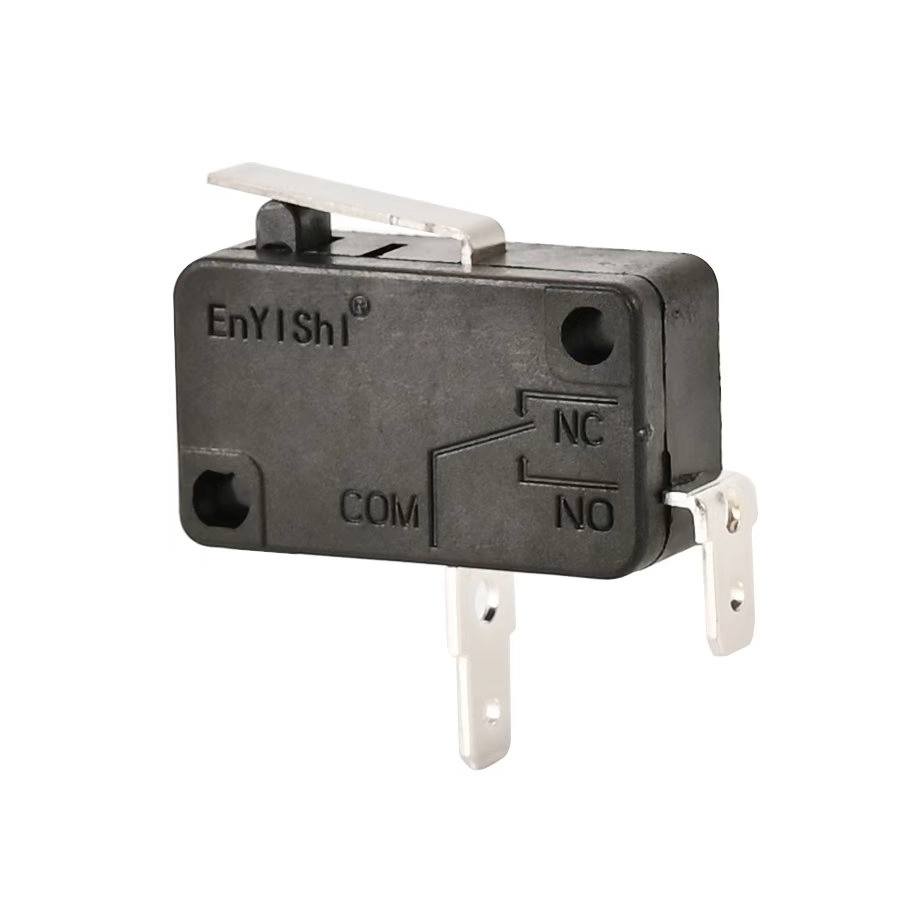

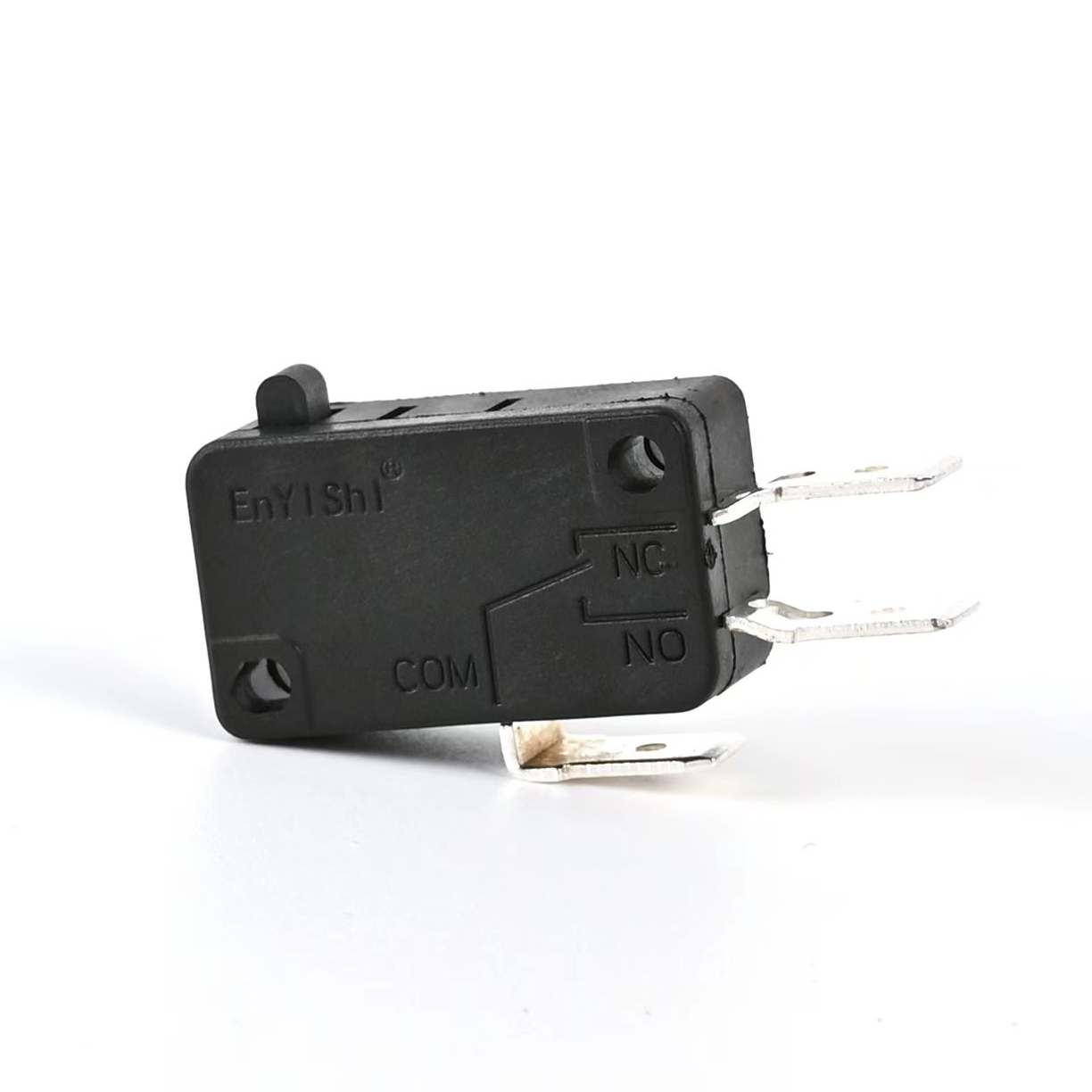

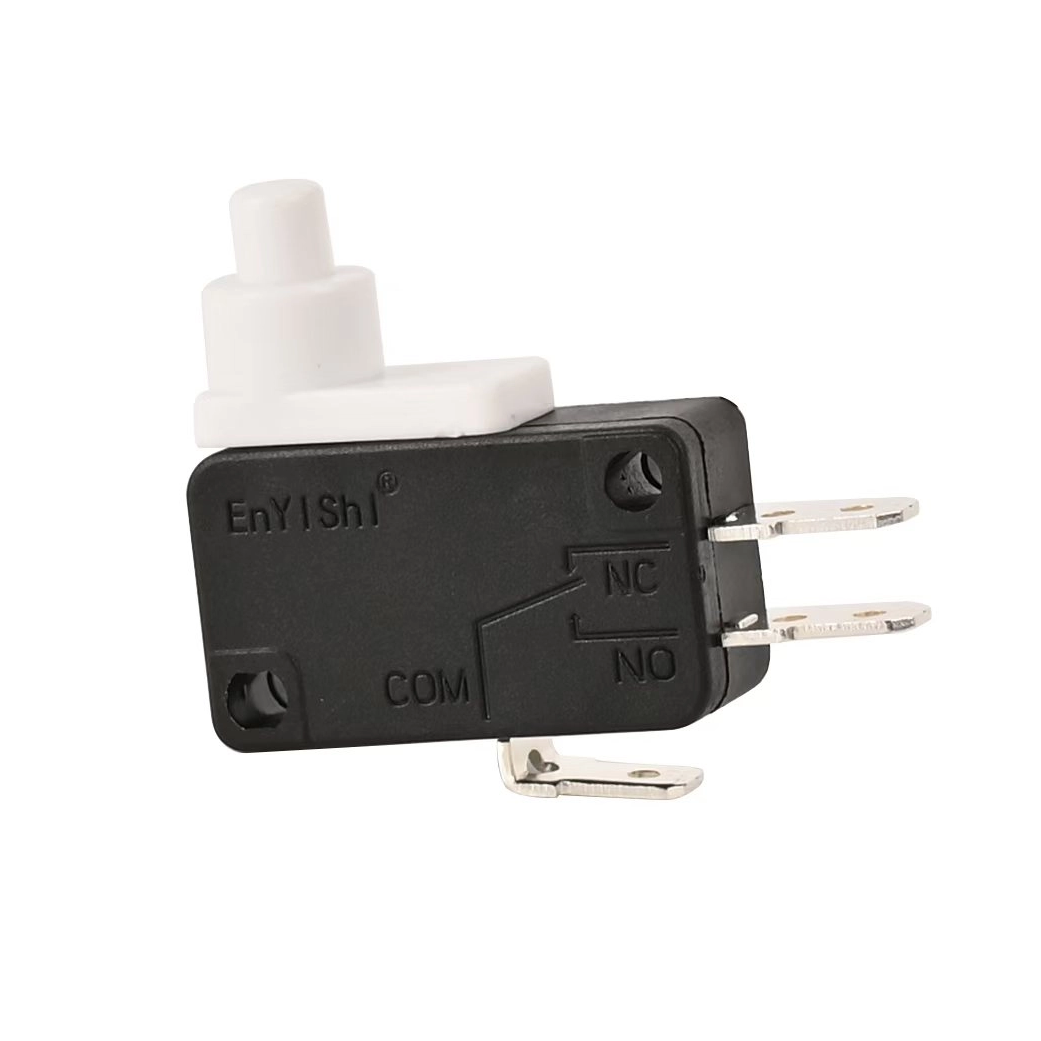

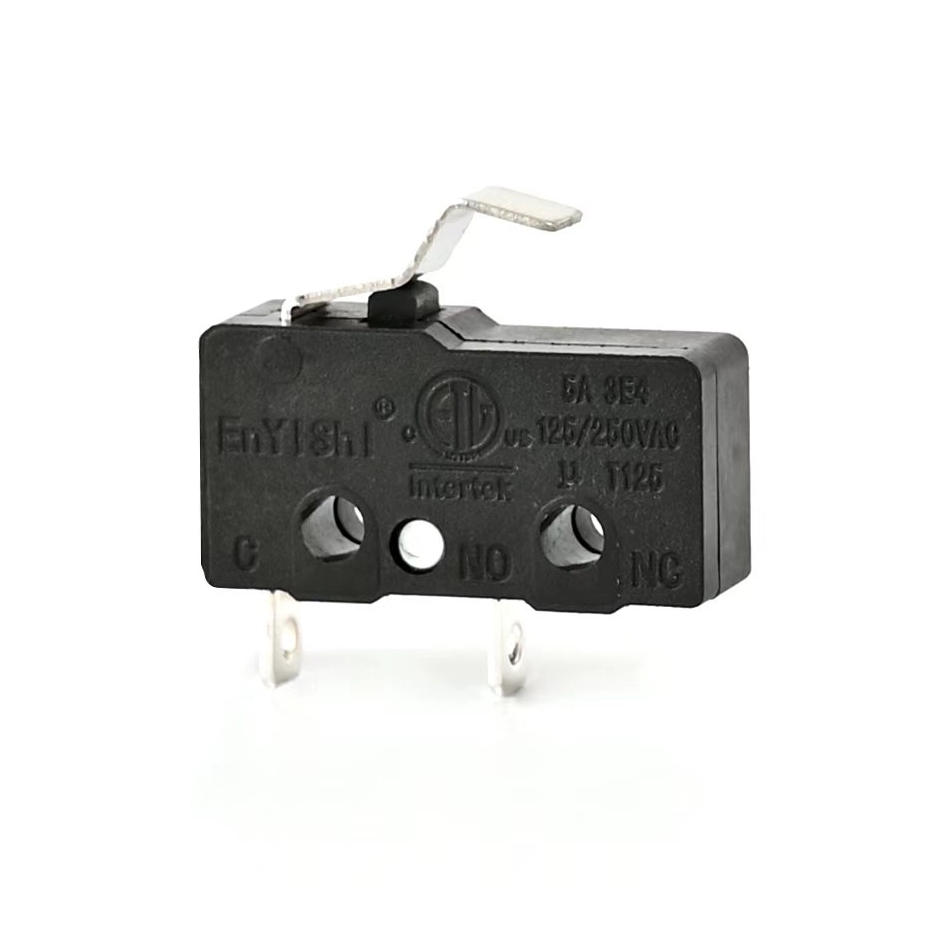

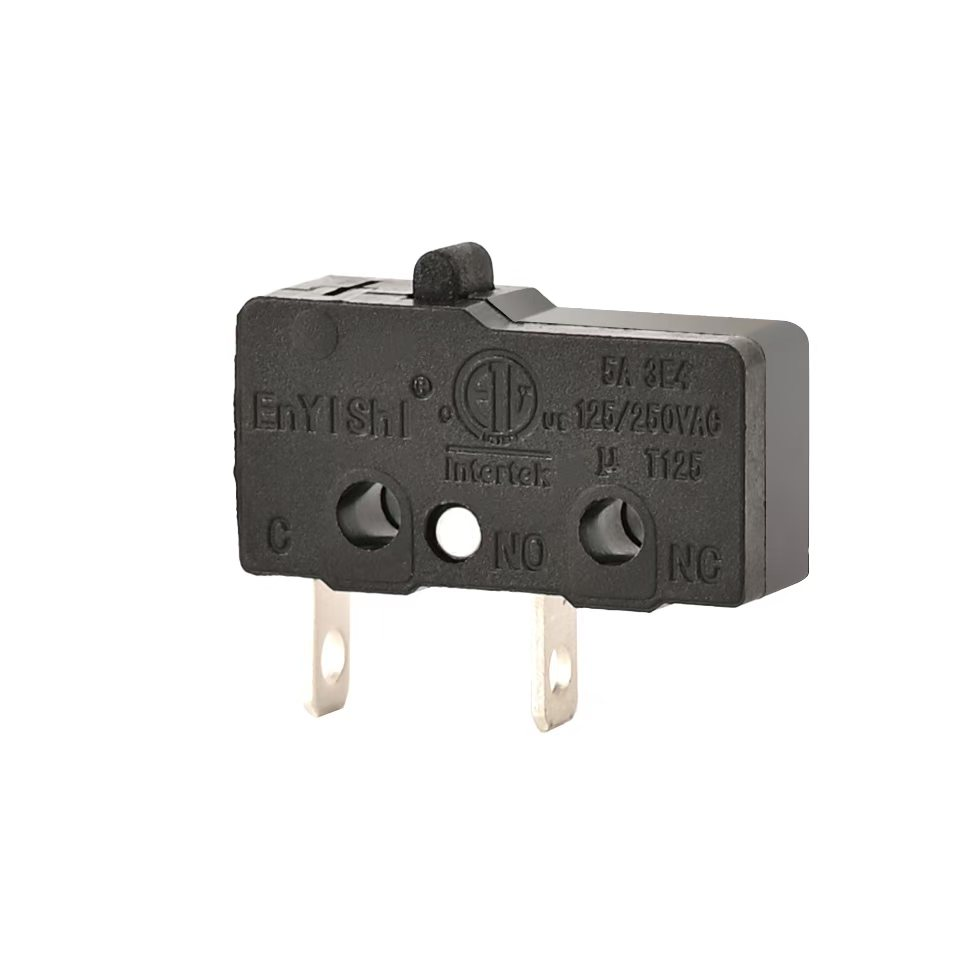

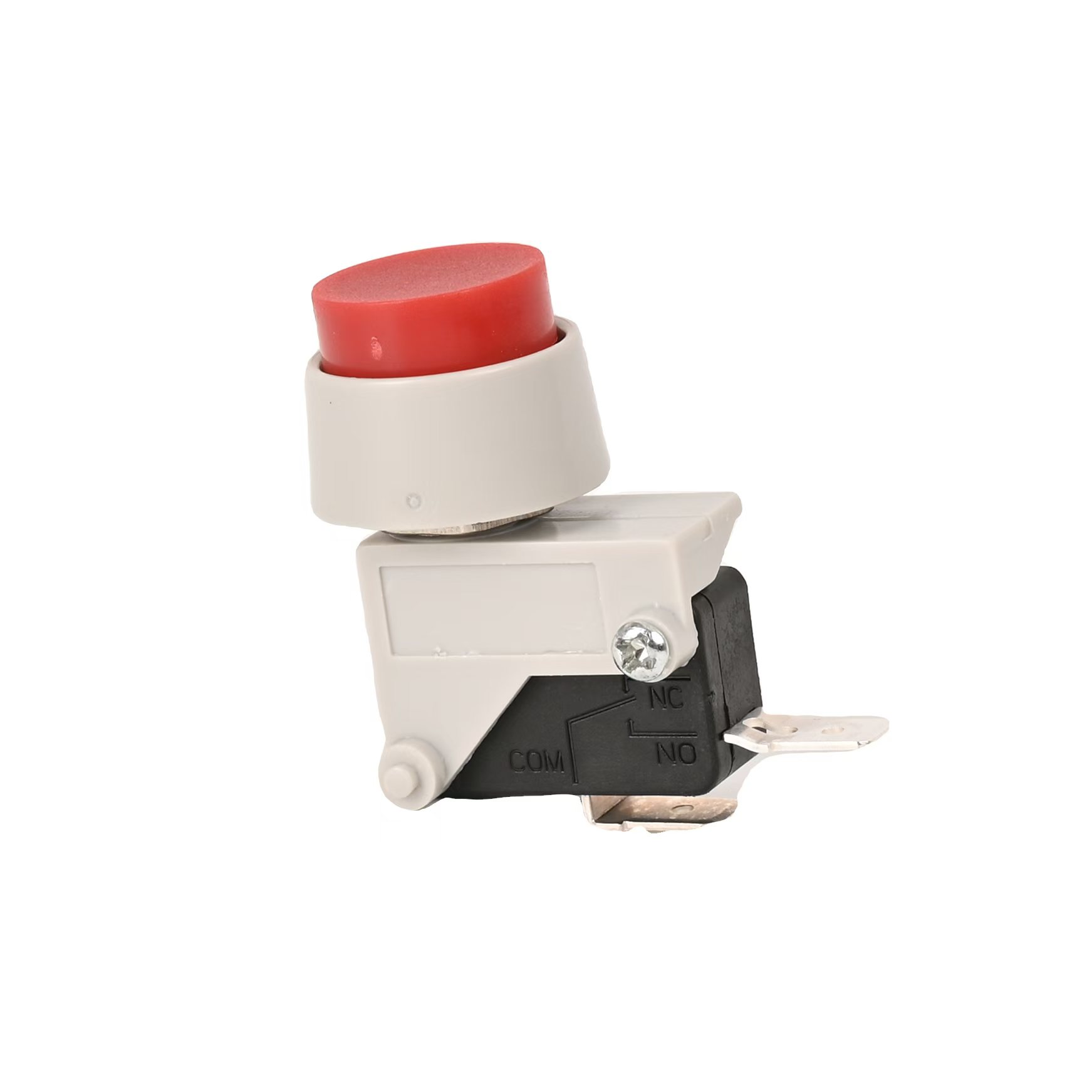

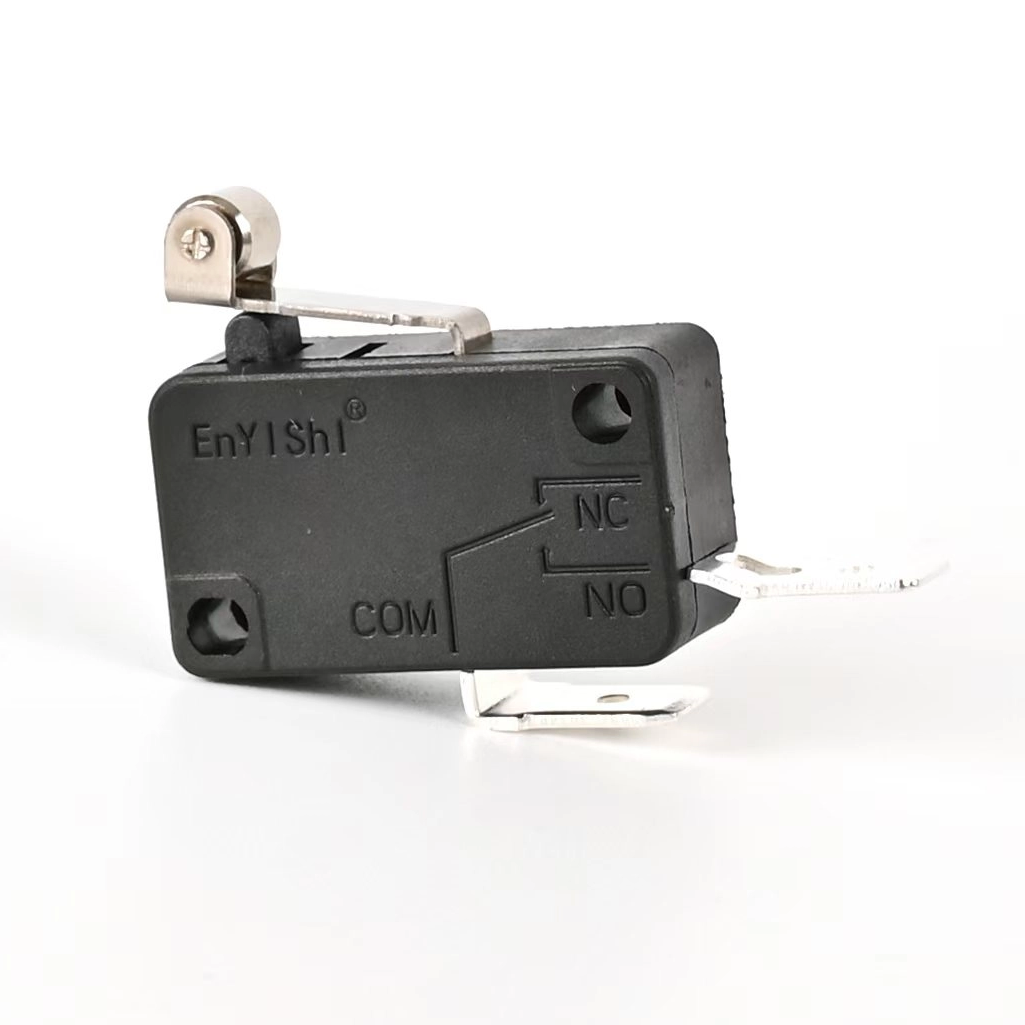

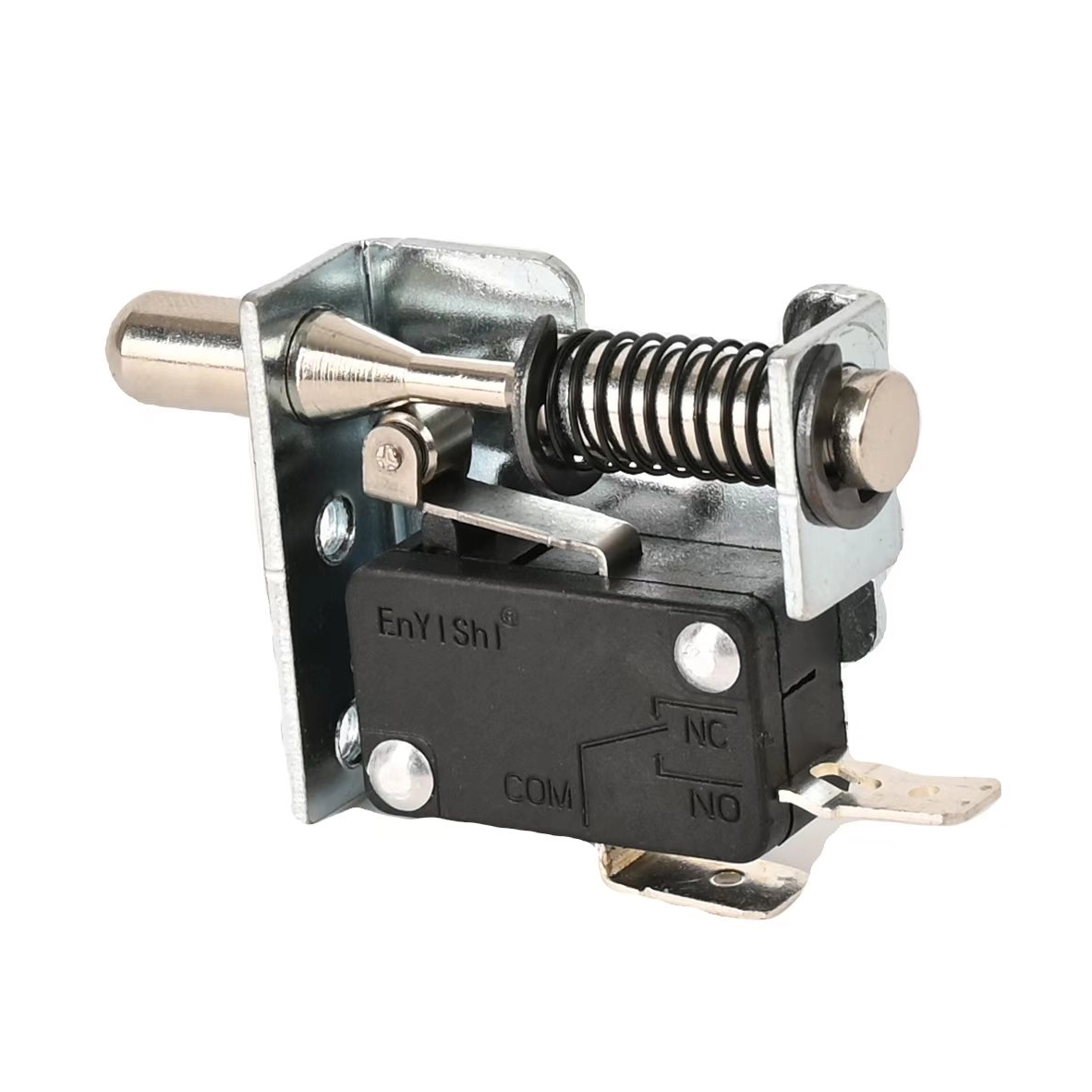

- Actuator: The part that is physically manipulated to operate the switch. It can be a lever, button, or plunger.
- Common Terminal (C): The terminal that connects to the power supply.
- Normally Open Terminal (NO): This terminal is open by default and closes when the switch is activated.
- Normally Closed Terminal (NC): This terminal is closed by default and opens when the switch is activated.

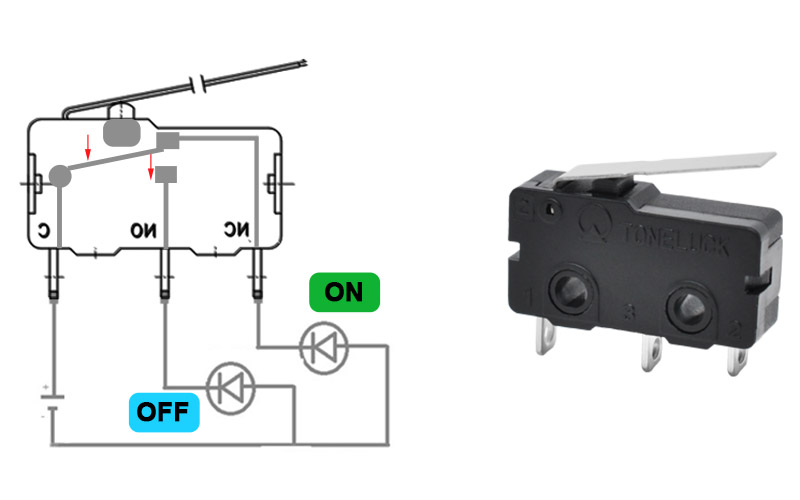

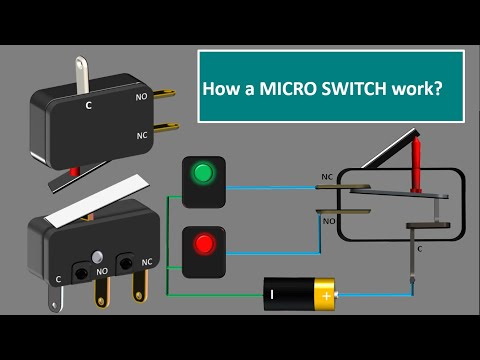

The operation of a micro switch can be summarized in two main states:
1. Resting State: In this state, the common terminal connects to the normally closed terminal. This means that when no force is applied to the actuator, current flows through the NC terminal.
2. Activated State: When pressure is applied to the actuator, the internal mechanism snaps into position, connecting the common terminal to the normally open terminal while disconnecting it from the NC terminal. This action completes the circuit and allows current to flow through the NO terminal instead.
Micro switches are versatile components used in various applications due to their reliability and quick response time. Here are some common uses:
- Household Appliances: Found in devices like microwaves, coffee makers, and refrigerators where they ensure safety by preventing operation unless certain conditions are met (e.g., doors closed).
- Industrial Equipment: Used in machinery for safety interlocks, ensuring that machines cannot operate unless safety guards are in place.
- Automotive Applications: Employed in vehicles for functions such as seatbelt reminders and door locks.
- Consumer Electronics: Commonly found in devices like printers and photocopiers to detect paper jams or operational status.
- Elevators and Escalators: Micro switches are utilized in elevators for door control systems, ensuring that doors remain closed while the elevator is moving.
- Gaming Machines: In slot machines or arcade games, micro switches detect player interactions such as inserting coins or pressing buttons.
Micro switches offer several advantages that make them ideal for various applications:
- Precision: They require minimal force to operate, allowing for precise control over electrical circuits.
- Reliability: With a long operational life and high-frequency switching capabilities, micro switches are dependable even under heavy use.
- Compact Size: Their small form factor allows them to fit into tight spaces where larger switches might not be feasible.
- Versatility: They can be used in a wide range of environments and applications, from consumer electronics to industrial machinery.
- Cost-effectiveness: Micro switches are generally inexpensive compared to other types of switches, making them an economical choice for manufacturers.

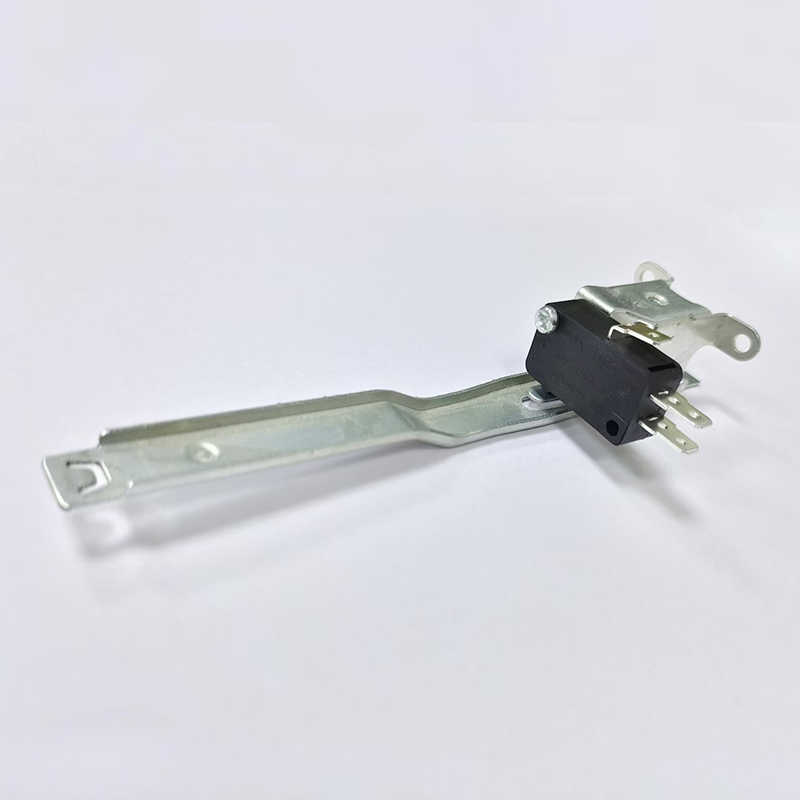

The construction of a micro switch involves several key components:
- Plunger/Actuator: The part that initiates the switch action when pressed.
- Cover: Protects internal components from dust and moisture.
- Moving Piece: Translates mechanical force into electrical action within the switch.
- Support Structure: Holds all components in place for smooth operation.
Micro switches are typically made from durable materials such as:
- Plastic Housing: Lightweight and resistant to corrosion.
- Metal Contacts: Provide good conductivity and durability against wear.
- Spring Mechanism: Ensures quick snap-action response when the actuator is pressed.
There are various types of micro switches designed for specific applications:

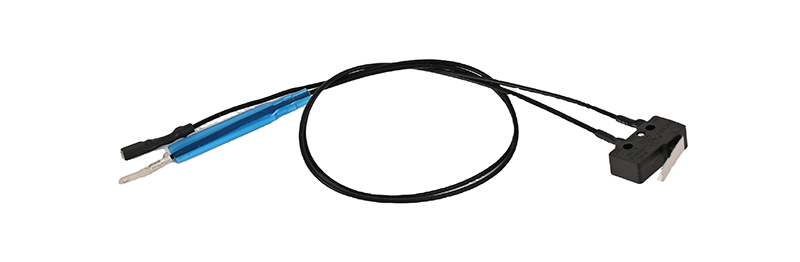

1. Standard Micro Switches: Basic models used in most applications.
2. Sealed Micro Switches: Designed for environments where exposure to dust or moisture is a concern.

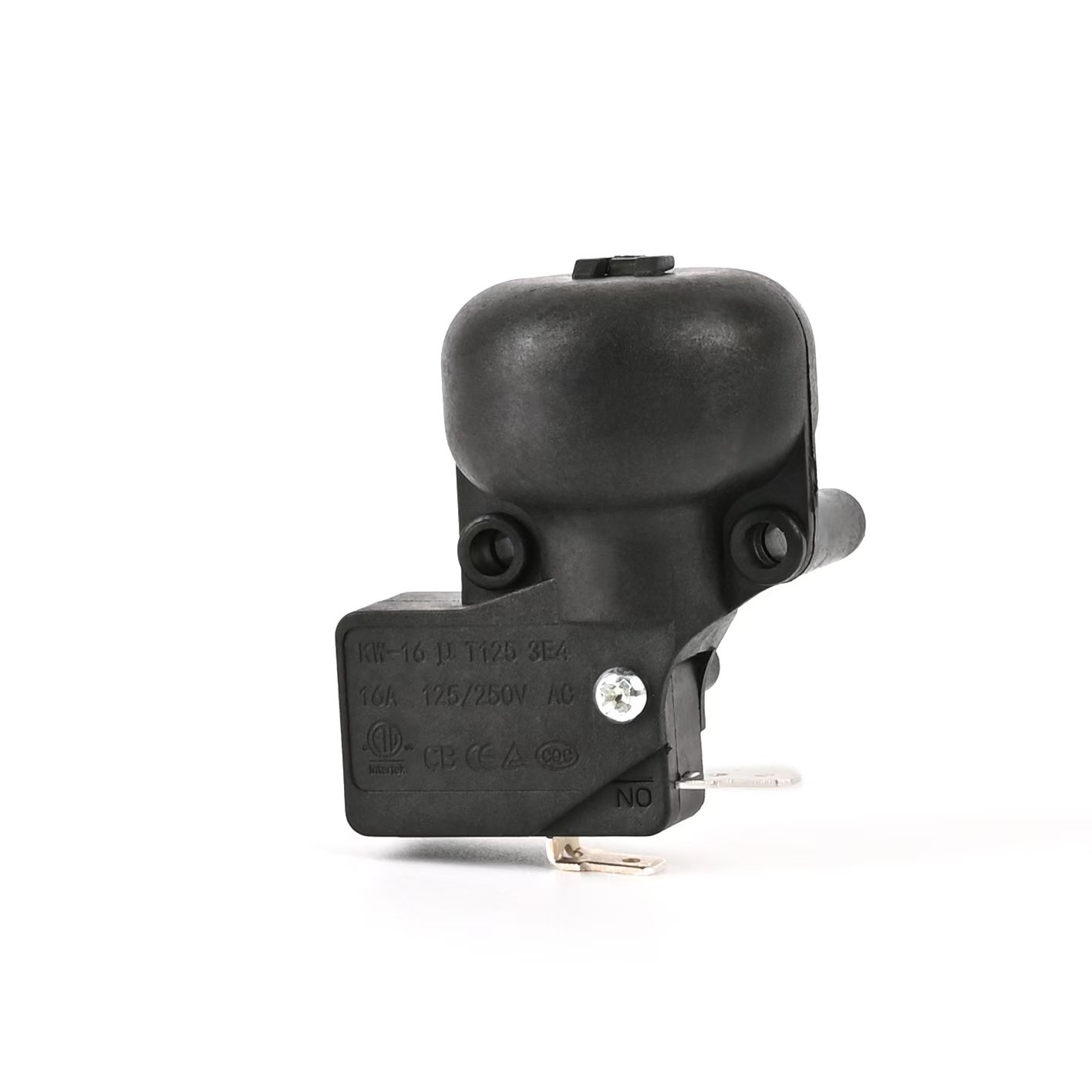

3. Heavy-Duty Micro Switches: Built for industrial applications where high durability is required.

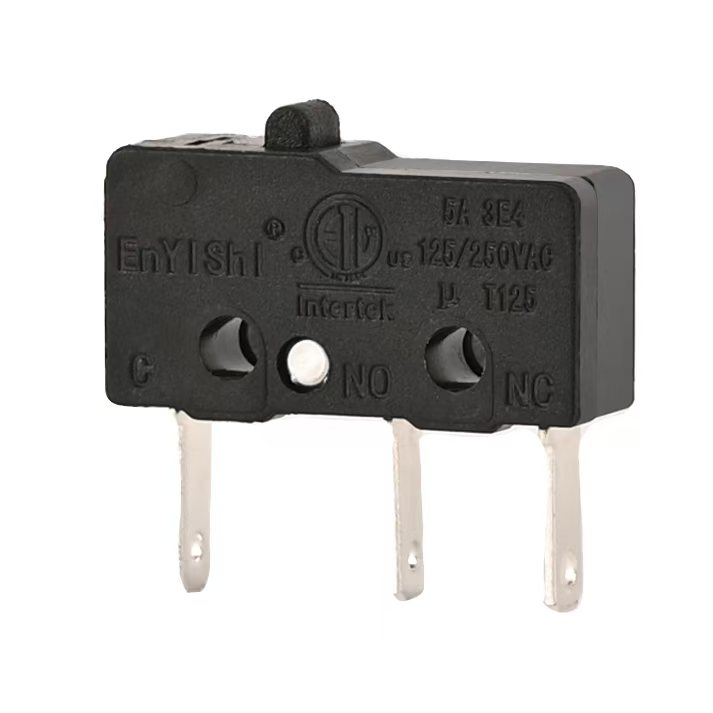

4. Subminiature Micro Switches: Smaller versions used in compact devices where space is limited.
5. Snap Action Micro Switches: These provide fast switching capabilities suitable for high-speed operations.
When installing micro switches, several factors should be taken into account:
- Mounting Orientation: Ensure that the switch is mounted correctly according to its design specifications; some may require specific orientations for optimal performance.
- Force Requirements: The amount of force needed to actuate the switch should be considered based on its application; too much force can lead to premature wear or failure.
- Environmental Conditions: For outdoor applications or harsh environments, select sealed or heavy-duty variants that can withstand temperature fluctuations and moisture exposure.
Despite their reliability, micro switches can encounter issues over time. Here are some common problems and solutions:
1. Switch Not Activating
- Check if there is any obstruction preventing actuator movement.
- Ensure proper alignment between actuator and switch body.
- Test with a multimeter for continuity issues within the circuit.
2. Intermittent Operation
- Inspect for dirt or debris on contacts; clean if necessary.
- Examine wiring connections for loose or damaged wires.
- Replace if there's significant wear on internal components.
3. Switch Sticking
- Ensure that no foreign objects are lodged within the mechanism.
- Lubricate moving parts if applicable but avoid over-lubrication which can attract dust.
4. Physical Damage
- Inspect for cracks or breaks in housing; replace if damaged.
- Check actuator for bending or deformation which may affect operation.
As technology advances, so do micro switches. Some emerging trends include:
- Smart Micro Switches: Integration with IoT technology allows remote monitoring and control of devices using micro switches.
- Enhanced Durability Materials: Development of new materials that increase resistance to extreme temperatures and corrosive environments will broaden application possibilities.
- Miniaturization: Continued efforts toward smaller designs will enable their use in even more compact electronic devices without sacrificing performance.
In conclusion, micro switches are essential components in modern electrical systems. Their ability to provide reliable on/off control through minimal mechanical movement makes them invaluable across various applications—from household appliances to complex industrial machinery. Understanding how they work and their advantages can help users select appropriate switches for their specific needs. As technology continues to evolve, micro switches will likely see further innovations that enhance their functionality and expand their use cases even more widely across different sectors.
The primary function of a micro switch is to complete or break an electrical circuit based on mechanical action applied to its actuator.
Micro switches are commonly used in household appliances, automotive systems, industrial machinery, and consumer electronics like printers and vending machines.
Micro switches operate with minimal force and have a snap-action mechanism that allows for quick switching compared to other types of switches that may require more significant physical movement.
Yes, but it depends on their construction. Sealed micro switches are designed for outdoor use as they protect against moisture and dust.
To test a micro switch, you can use a multimeter set to continuity mode. Check continuity between terminals while activating the switch; there should be continuity between common and NO when activated and between common and NC when not activated.
