Micro switch plates are essential components in various electronic devices, serving as the interface between the user and the micro switch itself. These plates provide a protective cover while facilitating the activation of the switch. Understanding what a micro switch plate is, its functions, applications, and features can help in various fields, from electronics to home improvement.

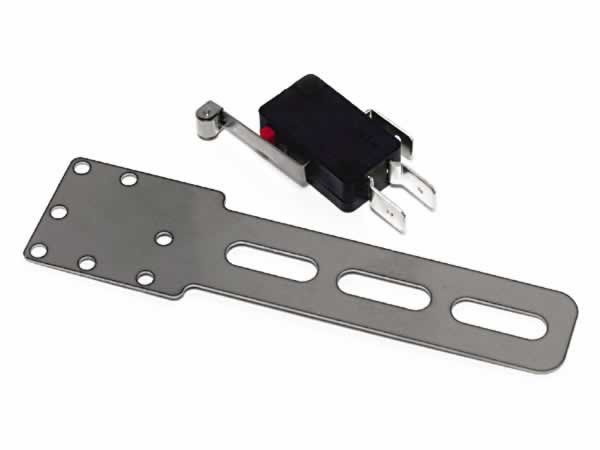

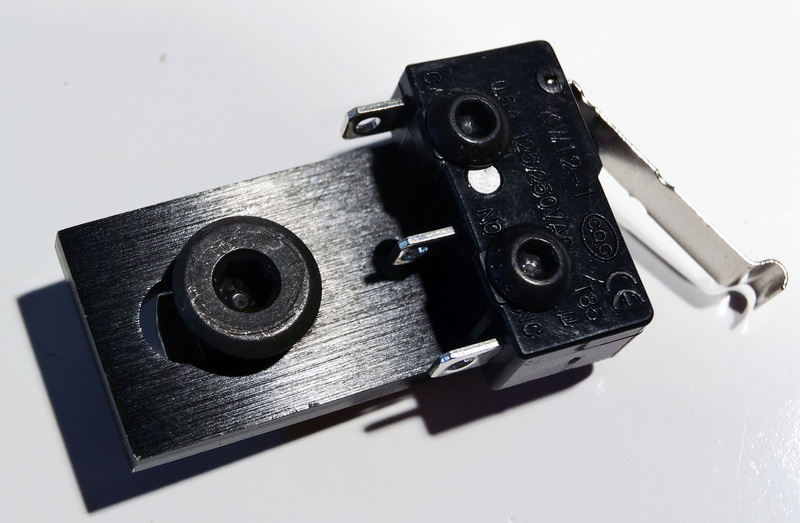

A micro switch plate is a small cover designed to house a micro switch, which is an electrical switch that operates with minimal physical force. These plates are typically made from durable materials like plastic or metal and are designed to protect the internal components of the micro switch while providing easy access for activation.

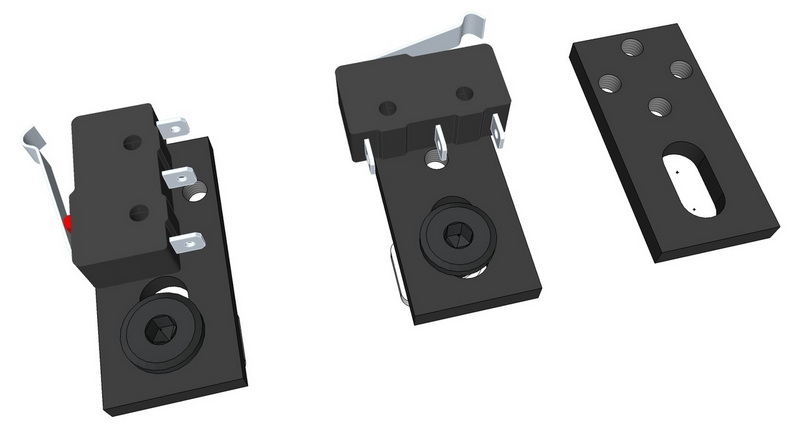

The construction of a micro switch plate usually includes:
- Cover: Protects the internal mechanisms from dust and moisture.
- Mounting Holes: Allow for secure installation in various devices.
- Actuator Access: Provides an opening for the actuator to be pressed, enabling the switch's functionality.
Micro switch plates work by allowing a user to apply pressure to an actuator that is connected to the micro switch. When sufficient force is applied, the actuator moves, triggering the internal mechanism of the micro switch to either open or close an electrical circuit. This action often results in a distinct "click" sound, indicating successful operation.
Micro switch plates come in various types depending on their application:
- Standard Plates: Commonly used in household appliances and industrial equipment.
- Heavy-Duty Plates: Designed for environments requiring higher durability and load capacity.
- Subminiature Plates: Ideal for compact spaces where standard sizes cannot fit.
Micro switch plates are utilized in numerous applications across different industries:
- Home Appliances: Found in devices like microwaves, coffee makers, and refrigerators where they control various functions.
- Automotive Systems: Used in door locks, seatbelt reminders, and other safety features.
- Industrial Equipment: Employed in machinery for control systems and safety mechanisms.
- Consumer Electronics: Incorporated into devices such as cameras and gaming consoles.
In home appliances, micro switches play a vital role in ensuring safety and functionality. For instance:
- Microwave Ovens: Micro switches ensure that the door is closed before the microwave can operate, preventing accidents.
- Washing Machines: They detect whether the lid is closed before starting a wash cycle.
- Refrigerators: Micro switches can control interior lights when doors are opened or closed.
In automotive applications, micro switches contribute significantly to safety features:
- Door Locks: They enable automatic locking mechanisms when doors are closed.
- Seatbelt Reminders: Micro switches detect whether seatbelts are fastened or not, triggering alerts for passengers.
- Headlight Controls: Some vehicles use micro switches to manage headlight settings based on door positions or ignition status.
In industrial settings, micro switches are crucial for operational efficiency:
- Conveyor Systems: They help control the start and stop functions of conveyor belts.
- Safety Guards: Micro switches ensure that safety guards are in place before machinery can operate.
- Control Panels: Used extensively in control panels for machinery to manage various functions effectively.
Micro switches are also integral to consumer electronics:
- Cameras: They can control shutter release mechanisms with minimal force for quick operation.
- Gaming Consoles: Used in controllers to provide tactile feedback during gameplay.
The benefits of using micro switch plates include:
- Precision Control: They provide accurate switching with minimal actuation force.
- Compact Design: Their small size allows integration into tight spaces within devices.
- Durability: Designed to withstand millions of operations without failure.
- Versatility: Suitable for a wide range of applications across various industries.
While they offer many advantages, there are also some limitations:
- Limited Load Capacity: May not handle high current or voltage applications effectively.
- Mechanical Wear: Components can wear out over time if not properly maintained.
- Environmental Sensitivity: Can be affected by dust, moisture, and extreme temperatures if not adequately protected.
When installing a micro switch plate, consider the following factors:
1. Compatibility with Device: Ensure that the plate fits correctly with the specific type of micro switch being used.
2. Mounting Method: Use appropriate screws or fasteners to secure the plate firmly in place.
3. Accessibility: Position the plate where it can be easily accessed for operation without obstruction.
4. Orientation: Some micro switches may require specific orientations for optimal performance; check manufacturer guidelines during installation.
5. Environmental Conditions: Consider whether the installation area will expose the plate to moisture or dust; choose materials accordingly to enhance longevity.
To ensure longevity and optimal performance of micro switch plates:
- Regularly inspect for any signs of wear or damage.
- Keep the area around the plate clean to prevent dust accumulation.
- If applicable, lubricate moving parts according to manufacturer specifications.
- Test functionality periodically by activating the switch to ensure it responds correctly without excessive force.
As technology advances, so do micro switches and their plates. Here are some trends that may shape their future:
1. Smart Technology Integration: With the rise of smart homes and IoT devices, micro switches may increasingly integrate with wireless technology for remote operation and monitoring capabilities.
2. Enhanced Durability Materials: Future developments may lead to materials that withstand harsher environments, including extreme temperatures or corrosive substances, extending their lifespan even further.
3. Miniaturization Trends: As devices continue to shrink in size while increasing functionality, there will be a greater demand for smaller yet efficient micro switches and corresponding plates that fit into compact designs without sacrificing performance.
4. Sustainability Initiatives: The push towards environmentally friendly manufacturing processes may lead manufacturers to explore sustainable materials for producing micro switch plates while maintaining quality standards.
5. Customization Options: As industries become more specialized, there may be an increase in demand for customized micro switch plates tailored specifically for unique applications across different sectors.
Micro switch plates play a crucial role in connecting users with electronic devices through their simple yet effective design. They provide protection for sensitive components while allowing easy access for operation. Understanding their functions, applications, maintenance considerations, and future trends can enhance their performance and lifespan across various settings. As technology continues to evolve, so too will these essential components adapt to meet new challenges and demands within diverse industries.
The primary function of a micro switch plate is to provide protection for the micro switch while allowing easy access for activation through its actuator.
Micro switch plates are commonly used in home appliances, automotive systems, industrial equipment, and consumer electronics.
To install a micro switch plate, ensure compatibility with your device, use appropriate mounting methods like screws or fasteners, and position it for easy accessibility.
Advantages include precision control with minimal actuation force, compact design for tight spaces, durability over millions of operations, and versatility across various applications.
If your micro switch plate shows signs of wear or damage, inspect it regularly and replace it if necessary to maintain optimal performance.
