A slide switch is a type of electrical switch that allows users to control the flow of electricity in a circuit by sliding a lever or actuator. This simple yet effective mechanism is widely used in various electronic devices, from consumer electronics to industrial applications. The design and functionality of slide switches make them an essential component in modern technology, providing a reliable means of switching circuits on and off or selecting between different operational modes.

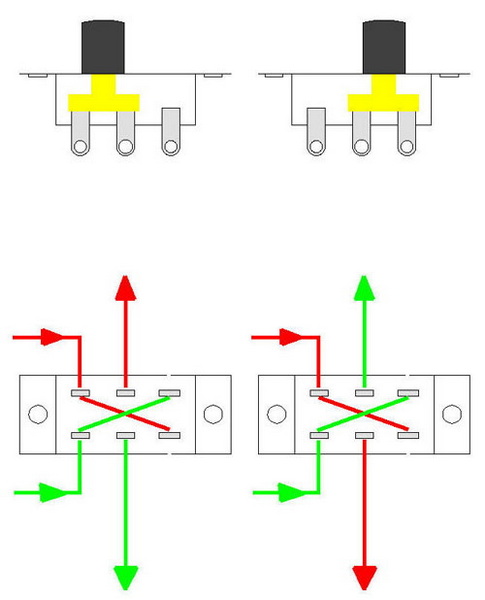

Slide switches operate by moving a lever from one position to another, connecting or disconnecting electrical contacts within the switch. This action can either complete an electrical circuit (turning the device on) or break the circuit (turning it off). The basic principle involves a set of contacts that move together as the lever is slid, allowing for straightforward user interface.
- Types of Slide Switches: There are several configurations of slide switches, including:
- Single Pole Single Throw (SPST): A simple on/off switch with two terminals.
- Single Pole Double Throw (SPDT): Allows connection to one of two circuits.
- Double Pole Single Throw (DPST): Controls two circuits simultaneously.
- Double Pole Double Throw (DPDT): Similar to SPDT but controls two circuits with more options.
Slide switches are utilized in various applications due to their versatility and reliability. Common uses include:
- Consumer Electronics: Found in devices like flashlights, radios, and remote controls for power control and mode selection.
- Toys: Used to turn toys on and off or switch between different functions.
- Industrial Equipment: Employed in machinery to manage electrical circuits and operations.
- Home Appliances: Incorporated into kitchen gadgets and other household devices for user control.
The advantages of using slide switches include:
- Simplicity: Their straightforward operation makes them easy to use.
- Durability: Designed for longevity, they can withstand frequent use without significant wear.
- Versatility: Available in various sizes and configurations, suitable for diverse applications.
- Clear Indication: The physical movement of the lever provides a clear indication of the switch's status (on/off).
Understanding the different types of slide switches is crucial for selecting the right one for your application. Here's a breakdown:
| Type | Description |
|---|---|
| SPST | Basic on/off switch; connects one input to one output. |
| SPDT | Connects one input to one of two outputs; allows switching between circuits. |
| DPST | Controls two circuits at once; simple on/off functionality. |
| DPDT | Versatile option for controlling two separate circuits with multiple settings. |
The mounting method for slide switches can significantly affect their performance and reliability. Common mounting techniques include:
- Through-Hole Mounting: The traditional method where the switch is inserted into holes on a PCB and soldered in place.
- Surface Mounting: Involves placing the switch directly onto the surface of the PCB, allowing for more compact designs.
- Panel Mounting: Attaches the switch directly onto an external panel, typically using screws or clips.
Choosing the appropriate slide switch requires consideration of several factors:
1. Functionality:
Determine whether you need an on/off switch or one that can select between multiple modes.
2. Electrical Specifications:
Ensure that the switch can handle the required voltage and current levels for your application.
3. Environmental Conditions:
Consider if the switch will be exposed to dust, moisture, or extreme temperatures; look for IP-rated options if necessary.
4. Mounting Method:
Decide based on space constraints and design requirements whether through-hole, surface mount, or panel mount is best suited.
Even with their robustness, slide switches can face challenges over time. Here are some common issues along with solutions:
- Contact Wear: Regular inspection and replacement can prevent performance degradation due to worn contacts.
- Debris Accumulation: Keeping the surrounding area clean helps avoid malfunctions caused by dust or debris entering the switch.
- Loose Mounting: Ensure proper installation to maintain stability and reliability during operation.
Slide switches come equipped with various features that enhance their usability:
- Pilot Lights: Some models include pilot lights that indicate when the switch is activated.
- Illuminated Switches: These provide visual feedback about their status even in low-light conditions.
- Wiping Contacts: This feature ensures a clean connection by wiping away debris as the contacts engage.
- Time Delays: Certain slide switches may incorporate time delays for specific applications requiring controlled activation timing.
Slide switches are available in multiple configurations tailored to meet specific functional requirements:
1. Single Pole Single Throw (SPST):
- Basic functionality for simple on/off applications.
- Ideal for straightforward devices like flashlights or basic electronics.
2. Single Pole Double Throw (SPDT):
- Offers more complexity with three positions.
- Useful for switching between two different circuits or modes seamlessly.
3. Double Pole Single Throw (DPST):
- Controls two independent circuits simultaneously.
- Effective for managing multiple components within a device from one location.
4. Double Pole Double Throw (DPDT):
- Allows control over two separate circuits with more options.
- Suitable for complex applications requiring intricate switching operations.
5. Three-Position Slide Switches:
- Provides three distinct positions for nuanced control.
- Often used in devices needing multiple operational states like speed settings or mode selections.
6. Miniature Slide Switches:
- Designed for compact electronic devices where space is limited.
- Maintains functionality while fitting into tight spaces effectively.
7. Surface Mount Slide Switches:
- Specifically designed for surface mounting on PCBs.
- Facilitates modern electronics manufacturing while conserving board space.
8. Toggle Slide Switches:
- Combines sliding action with toggle functionality.
- Offers both tactile feedback and reliable operation, ideal for user-friendly designs.
To illustrate how slide switches function within various devices:
- In a flashlight, an SPST slide switch allows users to turn it on or off easily by sliding the lever back and forth, providing direct control over illumination without complicated mechanisms.
- Remote controls often utilize SPDT slide switches to toggle between different functions such as changing channels or adjusting volume levels seamlessly without requiring multiple buttons.
- In toys, slide switches enable children to activate sound effects or lights simply by sliding a lever, enhancing playability while maintaining safety through low-voltage operation.
In summary, slide switches are integral components in many electronic devices due to their simplicity, reliability, and versatility. Understanding how they work, their various types, applications, features, and mounting options can help you make informed decisions when selecting a switch for your projects or products. Whether used in consumer electronics or industrial machinery, slide switches provide an effective means of controlling electrical circuits with ease. Their adaptability across numerous applications makes them indispensable in both everyday gadgets and specialized equipment alike.
Slide switches control electrical circuits by sliding between on/off positions or multiple modes in devices like toys and electronics.
Yes, they are designed for durability and can handle frequent use without significant wear over time.
Slide switches can be mounted using through-hole or surface mount techniques depending on design requirements and space availability.
Yes, many manufacturers offer customizable options based on size, function, and mounting preferences to suit specific applications.
Select a switch rated for the appropriate voltage level and ensure it meets safety standards required for high-current applications.
