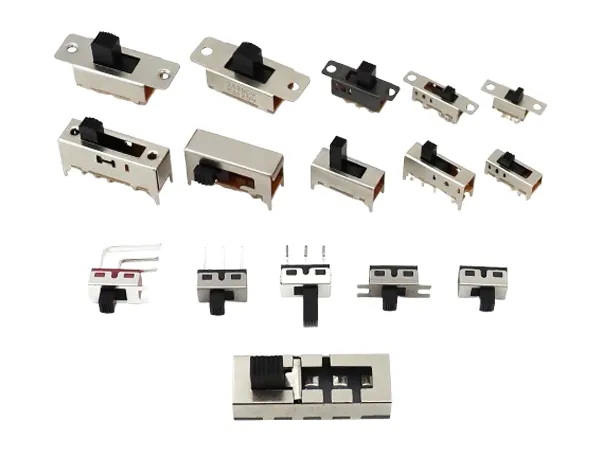

A slide switch is a mechanical device that controls the flow of electricity in an electrical circuit by sliding a lever or actuator along a linear path. This simple yet effective mechanism allows users to open or close the circuit, thereby controlling the power supply to various electronic devices. Slide switches are widely used in numerous applications, ranging from household appliances to complex industrial machinery.
Slide switches can be categorized based on their configuration, which determines how many circuits they can control and the number of positions they can assume. The most common types include:
- Single Pole Single Throw (SPST): This is the simplest form, functioning as an on/off switch that connects one input to one output.
- Single Pole Double Throw (SPDT): This type allows switching between two different circuits, featuring three terminals: one common terminal and two others.
- Double Pole Single Throw (DPST): This switch can control two circuits simultaneously, only in an on/off manner.
- Double Pole Double Throw (DPDT): The most versatile option, allowing for switching between two circuits while controlling two outputs.
The operation of a slide switch involves several key components:
1. Terminals: Typically, a slide switch has three terminals—one common terminal and two additional terminals. The common terminal connects with one of the outer terminals depending on the position of the slider.
2. Sliding Mechanism: The slider moves from one side to another. When it slides left, it connects the common terminal with the left terminal; when it slides right, it connects with the right terminal.
3. Electrical Contacts: Inside the switch, metal contacts touch each other when the slider is moved, completing or breaking the circuit as needed.
This straightforward back-and-forth action gives users control over electricity and allows devices to either be powered on or off or for different modes to be set under their control.
Slide switches are widely used across various industries due to their reliability and ease of use. Some common applications include:
- Consumer Electronics: Used in devices like remote controls, radios, and toys to turn them on/off or select different functions.
- Industrial Equipment: Employed in machinery and equipment to control electrical circuits.
- Automotive Applications: Found in vehicle systems for various controls.
- Home Appliances: Utilized in kitchen gadgets and other household items for operational control.
- Medical Devices: Used in medical equipment for controlling various functionalities.
Slide switches offer several benefits:
- Simplicity: Their straightforward design makes them easy to use for individuals with minimal technical knowledge.
- Durability: Designed to withstand mechanical stress and wear, slide switches are reliable for long-term use. They can endure repeated sliding without significant degradation in performance.
- Compact Design: Their small size allows for easy integration into various electronic devices and equipment, making them suitable for applications with limited space.
- Low Cost: Slide switches are often relatively inexpensive to manufacture, making them a cost-effective choice for basic on/off control functions.
- Visual Feedback: Some slide switches include a visual indicator, such as a colored stripe or light, to indicate the switch's position (on or off), providing immediate feedback about the device's status.
- No Power Consumption: Slide switches do not consume any power themselves; they simply establish or break a physical connection, which is advantageous in applications where minimizing power consumption is critical.
- Manual Override: They can offer a manual override option, allowing users to directly control a function or device even if automated systems are in place.
- Resistance to Accidental Activation: Compared to push-button switches, slide switches are less prone to accidental activation as they require deliberate sliding action to change their position.
Here's a more detailed look at the different types of slide switches:
| Type | Description |
|---|---|
| SPST | Basic on/off functionality; connects one input to one output. |
| SPDT | Allows connection between one input and two outputs; ideal for mode selection. |
| DPST | Controls two circuits simultaneously; useful for dual functions. |
| DPDT | Offers versatility by controlling two separate outputs from two different inputs. |
Wiring a slide switch may seem daunting at first but is relatively straightforward once you understand its configuration:
1. Identify Your Switch Type: Determine if your switch is SPST, SPDT, DPST, or DPDT.
2. Connect Terminals:
- For SPST: Connect one terminal to your power source and the other to your load.
- For SPDT: Connect the common terminal to your power source; connect each outer terminal to different loads.
- For DPST/DPDT: Follow similar principles as above but ensure you connect both circuits correctly.
3. Testing: Once wired, test the switch using a multimeter to ensure it operates correctly by checking continuity in each position.
Despite their many benefits, slide switches also have certain limitations:
- Limited Complexity: As they typically offer just two positions – ON and OFF – slide switches are not suitable for applications that require multiple states or analogue control.
- Physical Wear: As mechanical devices, slide switches are subject to wear and tear over time, which can eventually lead to failure if not maintained properly.
Slide switches require maintenance to ensure optimal performance and longevity. This typically involves cleaning the contacts to remove any accumulated dust or grime and checking mechanical parts for signs of wear. However, for most consumer applications, slide switches are generally maintenance-free for their lifespan within products.
Slide switches are fundamental components in many electronic devices due to their ability to provide simple yet effective control over electrical circuits. They allow users immediate feedback about whether a device is powered on or off and enable easy switching between different operational modes.
For instance:
- In flashlights, sliding the switch turns the light on or off.
- In remote controls for televisions or audio systems, they allow users to select different channels or modes with ease.
- In industrial machinery, they enable operators to manage complex systems effectively by providing clear visual indicators of operational status.
In summary, slide switches are essential components in both consumer electronics and industrial applications due to their simplicity and reliability. Understanding their mechanism and applications can help engineers and hobbyists alike design better electronic systems that are user-friendly and efficient. With various types available, selecting the right slide switch for specific needs enhances functionality while providing clear operational feedback. Their compact design makes them suitable for modern devices where space is at a premium while maintaining cost-effectiveness without sacrificing durability.
A slide switch is a mechanical device that controls electrical circuits by sliding its lever from one position to another, effectively opening or closing the circuit.
The main types include Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), Double Pole Single Throw (DPST), and Double Pole Double Throw (DPDT).
To wire a slide switch, identify its type, connect the appropriate terminals based on its configuration, and test it with a multimeter for functionality.
Slide switches are commonly found in consumer electronics like remote controls and toys as well as in industrial equipment and automotive applications.
Slide switches offer simplicity in operation, durability for long-term use, visual feedback indicating their current state (on/off), and resistance against accidental activation compared to other types of switches.
