A slide switch is a type of electromechanical device that allows users to control the flow of electricity in a circuit by sliding a lever or actuator from one position to another. This simple yet effective mechanism is widely used in various electronic devices, from household appliances to industrial machinery. Slide switches are known for their reliability, ease of use, and versatility, making them essential components in modern electronics.

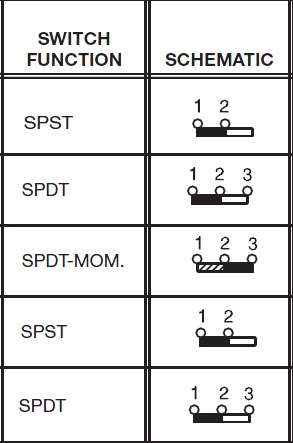

Slide switches operate by physically moving a lever, which either opens or closes an electrical circuit. They can be classified into different types based on their configuration and functionality. The most common types include:
- Single Pole Single Throw (SPST): This is the simplest form of a slide switch, featuring two positions: ON and OFF. It controls a single circuit.
- Single Pole Double Throw (SPDT): This type allows the user to connect one input to one of two outputs. It can be used for applications requiring mode selection.
- Double Pole Single Throw (DPST): This switch controls two circuits simultaneously but only offers ON and OFF functionality.
- Double Pole Double Throw (DPDT): The most versatile type, allowing control over two circuits with the ability to switch between them.
Each type serves different purposes and is selected based on the specific requirements of the application.
The operation of a slide switch is straightforward. When the user slides the lever, it moves internal contacts that either complete or break an electrical circuit. For instance, in an SPST switch, moving the lever to one position connects the circuit (ON), while moving it to the other position disconnects it (OFF).
At its core, a slide switch consists of several components:
- The Housing: This is the outer shell that protects the internal parts of the switch from physical damage and environmental conditions.
- The Terminals: These are the contact points where the switch connects to the electronic circuit.
- The Actuator: Also known as the slider, this is the part that users move to open or close the circuit.
When the slider moves, it changes the connection between terminals, thereby opening or closing the electrical circuit. This straightforward functionality makes slide switches a popular choice for many devices.
Slide switches are utilized across various industries and applications due to their simplicity and effectiveness. Some common uses include:
- Consumer Electronics: Found in devices such as remote controls, flashlights, and portable music players for power control and mode selection. The tactile feedback provided by slide switches ensures users can easily identify their current position.
- Toys: Used to turn toys on or off or to switch between different functions.
- Industrial Equipment: Employed in machinery for controlling electrical circuits.
- Automotive Applications: Used in vehicles for various control functionalities such as headlights and interior lighting.
- Home Appliances: Found in kitchen gadgets and other household devices for power management.

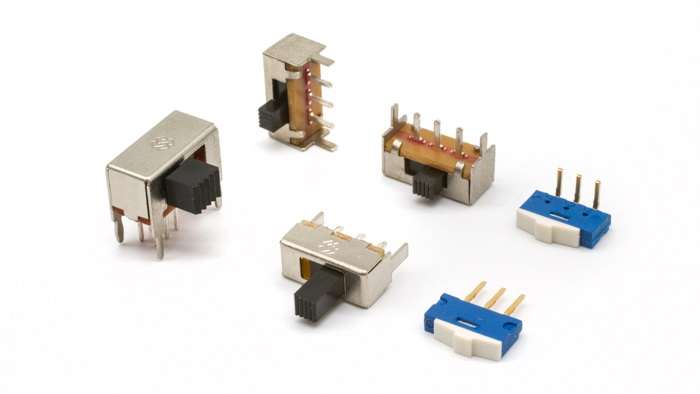

There are several types of slide switches available, each designed for specific applications:
The most basic type with two positions—ON and OFF. Ideal for simple applications where only a single circuit needs control.
Allows connection between one input and two outputs. It is commonly used in devices that require mode selection, such as fans with multiple speed settings.
Can control two independent circuits simultaneously but only has ON/OFF functionality.
This versatile switch allows switching between two circuits and can be used for more complex applications where multiple configurations are needed.
Slide switches offer several advantages that make them popular in electronic design:
- Simplicity: Their straightforward operation makes them easy to use for individuals with minimal technical knowledge.
- Durability: Made from robust materials, slide switches can withstand repeated use over time without significant wear.
- Clear Feedback: The tactile feedback provided by the sliding action ensures users can easily confirm whether the switch is in the ON or OFF position.
- Versatility: Available in various configurations and sizes, slide switches can be adapted for numerous applications.
Choosing the appropriate slide switch involves considering several factors:
1. Functionality:
Determine what you need the switch to do—whether it's simply turning a device on/off or selecting between multiple modes.
2. Electrical Specifications:
Ensure that the switch can handle the current and voltage requirements of your application.
3. Mounting Method:
Decide whether you need through-hole mounting, surface mounting, or panel mounting based on your design constraints.
4. Environmental Conditions:
If the switch will be used in harsh conditions (e.g., moisture or dust), look for sealed options with appropriate ratings (like IP ratings).
5. Size Constraints:
Depending on your device's design, you may need compact switches that fit into limited spaces.
While slide switches are generally reliable, they can encounter some common issues:
- Contact Wear: Over time, frequent use can lead to wear on internal contacts, affecting performance. Regular maintenance may be necessary to ensure longevity.
- Debris Accumulation: Dust and dirt can accumulate inside the switch, causing malfunctions. Keeping the surrounding area clean can help prevent this issue.
- Loose Mounting: If not properly mounted, slide switches may become unreliable over time. Ensuring secure installation is crucial for optimal performance.
Slide switches require minimal maintenance; however, regular checks can enhance their longevity:
- Cleaning Contacts: Dust and grime should be cleaned periodically to maintain optimal performance.
- Inspecting Mechanical Parts: Check for any signs of wear or damage that could affect functionality.
For most consumer applications, slide switches are generally maintenance-free throughout their operational lifespan within products.
In summary, slide switches are essential components in many electronic devices due to their simplicity, reliability, and versatility. Understanding their types, functionalities, and applications helps designers select the right switch for their needs effectively. Whether controlling power in consumer electronics or managing complex industrial machinery operations, slide switches play a vital role in modern technology. Their straightforward design ensures they remain user-friendly while providing durable performance across various applications.
Slide switches control electrical circuits by sliding between ON/OFF or multiple modes in devices like toys and electronics.
Yes, slide switches are designed for durability and can handle frequent use without significant wear over time.
Slide switches can be mounted using through-hole or surface mount techniques depending on your design requirements.
Yes, many manufacturers offer customization options based on size, functionality, and mounting styles to suit specific applications.
Select a switch rated for your device's voltage requirements using durable materials certified for safety standards.
