Slide switches are essential components in electronic devices, allowing users to control the flow of electricity with a simple sliding motion. Understanding the symbol for a slide switch is crucial for anyone working with schematics or designing electronic circuits. This article will delve into the details of slide switches, their symbols, and their applications, while also providing visual aids to enhance comprehension.
A slide switch is a type of mechanical switch that utilizes a slider mechanism to open or close an electrical circuit. These switches can be found in various applications, from consumer electronics to industrial machinery. The primary function of a slide switch is to control the flow of current through a circuit, either by connecting or disconnecting it.

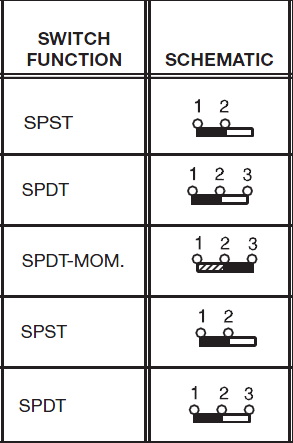

There are several configurations of slide switches, including:
- Single Pole Single Throw (SPST): This type has two terminals and can be in either an ON or OFF position.
- Single Pole Double Throw (SPDT): This configuration has three terminals and allows the user to switch between two circuits.
- Double Pole Single Throw (DPST): This type controls two circuits simultaneously but only has ON and OFF positions.
- Double Pole Double Throw (DPDT): This type can control two separate circuits simultaneously, offering more complex switching options.
Slide switches operate by moving a metal contact along a set of conductive paths. When the slider is moved to one position, it connects one terminal to another, allowing current to flow. Moving it back disconnects the circuit. This mechanical action ensures that the switch remains in its last position until manually changed.
Slide switches are widely used in various devices due to their simplicity and reliability. Common applications include:
- Consumer Electronics: Found in devices like radios, televisions, and video game consoles.
- Industrial Control Systems: Used in machinery for mode selection or emergency stops.
- Automotive Applications: Employed in dashboards for controlling lights and other features.
- Medical Devices: Utilized for controlling alarms, displays, and lights.
The versatility and robustness of slide switches make them ideal for many applications across different industries. Their high level of reliability can be attributed to their simplicity and durability, which makes them an ideal choice for various electronic equipment from consumer electronics and medical devices to industrial equipment and automotive systems[1][5].
Slide switches offer several advantages that contribute to their widespread use:
- Simple Operation: The intuitive design of slide switches makes them easy to operate, even for individuals unfamiliar with the device they're used in.
- Reliability: These switches typically have a long lifespan and can handle a large number of switching cycles without failing.
- Compactness: Due to their simple design, slide switches can be made very small, making them suitable for devices where space is at a premium.
- Versatility: They can be used in a broad range of applications, from household electronics to industrial machinery[3][9].
Despite their many benefits, slide switches also have certain limitations:
- Limited Complexity: As they typically offer just two positions – ON and OFF – slide switches are not suitable for applications that require multiple states or analogue control.
- Physical Wear: As mechanical devices, slide switches are subject to wear and tear over time, which can eventually lead to failure[7][19].
Wiring a slide switch might seem daunting at first, but it's relatively straightforward once you understand the configurations. Here's how to wire different types of slide switches:
1. Connect the power source to one terminal (typically the positive lead).
2. Connect the device you want to control (like a light or motor) to the other terminal.
3. In the “ON” position, it completes the circuit; in “OFF,” it breaks the circuit[2].
1. Connect the common terminal (usually in the center) to the power source.
2. Connect the two outer terminals to the devices you want to control.
3. This allows switching between two outputs while having an “OFF” position[4].
1. Connect one pair of terminals to the first circuit.
2. Connect another pair to the second circuit.
3. When switched “ON,” both circuits complete their connections simultaneously[2].
1. Connect each pair of terminals to two circuits you want to control.
2. The power source connects to middle common terminals.
3. This setup allows toggling between two different outputs or functions[4][10].
Slide switches require minimal maintenance due to their robust design; however, ensuring optimal performance involves:
- Cleaning contacts regularly to remove accumulated dust or grime.
- Checking mechanical parts for signs of wear over time[3][19].
For most consumer applications, slide switches are generally maintenance-free throughout their lifespan within products.
In summary, slide switches are vital components in many electronic devices, providing a straightforward method for controlling electrical circuits. Understanding their symbols—particularly for SPST and SPDT configurations—is essential for anyone involved in electronics design or repair. By recognizing these symbols and their applications, engineers and hobbyists can effectively utilize slide switches in their projects.
SPDT stands for Single Pole Double Throw. It refers to a type of switch that can connect one input to one of two outputs.
A slide switch maintains its position until manually changed, while a push button typically returns to its original position after being pressed.
Common applications include consumer electronics like radios and TVs, automotive controls, and industrial machinery.
Yes, but it's essential to select a slide switch rated for the specific voltage and current requirements of the application.
The lifespan can vary significantly based on usage but generally ranges from thousands to millions of cycles depending on the quality of the switch.
