Tactile switches, often referred to as tactile push button micro switches, are essential components in many electronic devices. They provide a momentary action that is both perceptible and user-friendly, making them ideal for a wide range of applications. This article will explore the characteristics, functions, and applications of tactile switches, along with their advantages and design features.

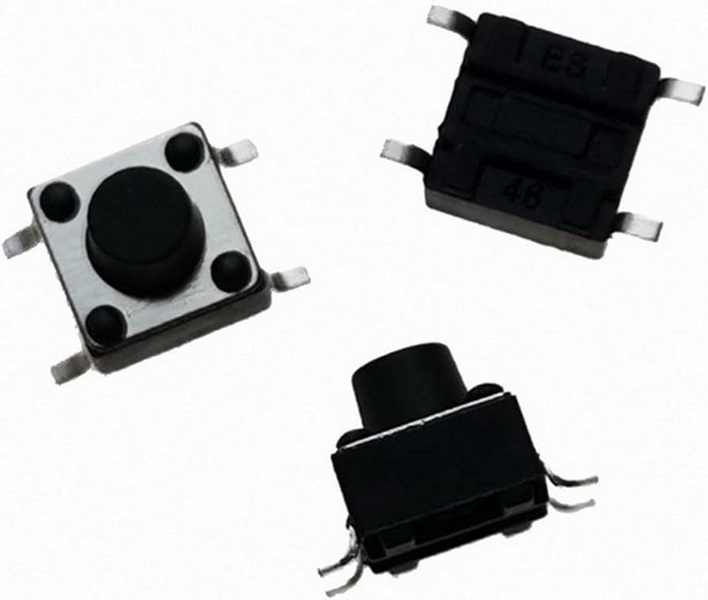

A tactile switch is a type of switch that completes an electrical circuit when pressure is applied. The defining feature of these switches is the feedback they provide to the user, typically in the form of a "click" or haptic response when activated. This feedback ensures that users know the switch has been engaged without needing to look at it.
- Momentary Action: Tactile switches are momentary devices, meaning they only maintain the circuit connection while being pressed. Once released, the circuit opens again.
- Tactile Feedback: The click sound and physical bump provide confirmation of activation, enhancing user experience.
- Size: These switches are generally small and compact, making them suitable for various electronic applications where space is limited.
- Durability: Tactile switches are designed for longevity, often rated for millions of cycles, which makes them reliable in everyday use.
The basic structure of a tactile switch consists of several key components:
1. Base: The molded resin base houses the terminals and contacts.
2. Contact Dome: This metal dome flexes under pressure, allowing current to flow when engaged.
3. Plunger: The plunger transmits the force from the user's finger to the contact dome.
4. Terminals: These connect the switch to the printed circuit board (PCB).

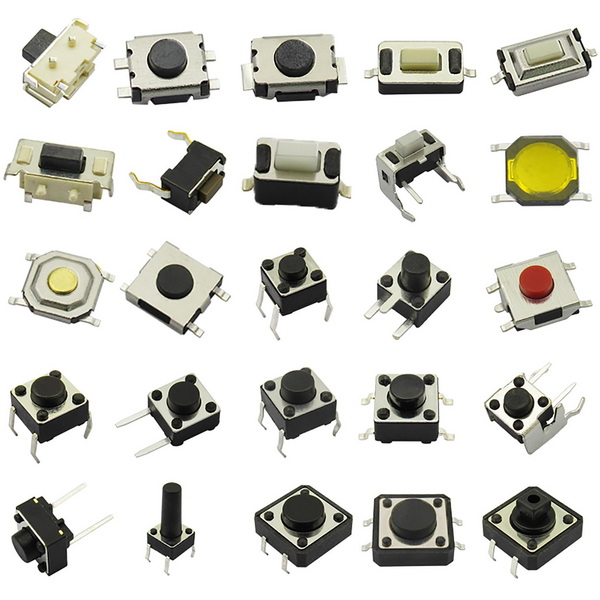

Tactile switches can be categorized based on their mounting style and design:
- PCB Insert Hole Terminals: These switches have leads that fit into holes on a PCB.
- Surface Mounted Terminals: These are mounted directly onto the surface of a PCB.
- Sealed Tactile Switches: Designed to protect against dust and moisture, these switches are ideal for outdoor or rugged applications.
Tactile switches are widely used across various industries due to their versatility. Common applications include:
- Consumer Electronics: Found in devices like keyboards, remote controls, and game controllers.
- Industrial Equipment: Used in control panels and machinery where user input is required.
- Medical Devices: Employed in equipment requiring precise control and feedback.
- Automotive Applications: Integrated into dashboards and control systems for various functionalities.
In addition to these common uses, tactile switches also find applications in:
- Home Appliances: Such as microwaves and washing machines where user input is necessary for operation.
- Gaming Devices: Providing responsive controls that enhance gameplay experiences.
- Telecommunications Equipment: Used in devices like telephones and modems for user interaction.
The advantages of tactile switches make them a preferred choice in many designs:
- User-Friendly Interface: The tactile feedback helps prevent accidental activations and improves user interaction.
- Compact Size: Their small footprint allows for more efficient designs in space-constrained environments.
- Cost-Effectiveness: Generally less expensive than other types of mechanical switches due to lower material costs and simpler manufacturing processes.
Proper installation is crucial for ensuring optimal performance from tactile switches. Here are some key considerations:
1. PCB Design Considerations:
- Ensure that the PCB holes align perfectly with the switch terminals.
- Consider using solder mask openings to prevent solder from bridging contacts unintentionally.
2. Soldering Techniques:
- Use appropriate soldering techniques to avoid damaging the switch.
- Ensure that heat is applied evenly to prevent overheating sensitive components.
3. Testing After Installation:
- Always test the switch after installation to ensure it functions correctly.
- Check for proper tactile feedback and electrical connectivity.
Despite their reliability, tactile switches can encounter issues over time. Here are some common problems and solutions:
- No Response When Pressed:
- Check for poor solder joints or broken connections on the PCB.
- Inspect the switch for physical damage or debris obstructing its movement.
- Sticky Operation:
- Ensure that there is no foreign material lodged within the switch mechanism.
- If necessary, clean around the switch with appropriate solvents (ensure compatibility).
- Inconsistent Feedback:
- Test multiple presses to determine if the issue persists.
- If feedback varies significantly, consider replacing the switch as it may be defective.
To better understand where tactile switches fit within electronic design, it's helpful to compare them with other types of switches:
| Feature | Tactile Switch | Push Button Switch | Toggle Switch |
|---|---|---|---|
| Feedback | Yes (tactile click) | Yes (audible click) | Yes (audible click) |
| Momentary Action | Yes | Yes | No |
| Size | Compact | Varies | Larger |
| Durability | High | Moderate | High |
| Typical Applications | Consumer electronics | General use | Industrial control |
As technology evolves, so does the design and functionality of tactile switches. Future trends may include:
- Smart Sensors Integration: Incorporating touch-sensitive technology alongside traditional tactile feedback could enhance usability in smart devices.
- Sustainability Initiatives: Manufacturers may focus on eco-friendly materials and processes to reduce environmental impact during production.
- Customization Options: Increased demand for personalized user experiences may lead manufacturers to offer customizable tactile feedback options based on user preference.
Tactile tact push button micro switches play a crucial role in modern electronics by providing reliable performance and user-friendly feedback. Their momentary action design coupled with tactile feedback makes them suitable for various applications across multiple industries. As technology continues to evolve, the demand for these versatile switches is likely to grow even further. With proper installation techniques and troubleshooting knowledge, users can maximize their effectiveness in any application they choose to implement them in.
Tactile switches are used primarily as input devices in consumer electronics, industrial equipment, medical devices, and automotive applications where user interaction is required.
A tactile switch operates by completing an electrical circuit when pressed down. The contact dome inside flexes under pressure, allowing current to flow until the switch is released.
Tactile switches offer benefits such as compact size, cost-effectiveness, durability, and user-friendly feedback through audible clicks and haptic responses.
Yes, sealed tactile switches are designed to withstand dust and moisture, making them suitable for outdoor applications.
Tactile switches are typically rated for millions of cycles, ensuring long-term reliability in various applications.
