Micro switches, also known as miniature snap-action switches, are essential components in various electronic devices and industrial applications. They are designed to operate with minimal physical force, making them ideal for applications requiring precise control and reliability. One of the critical features that enable their efficient operation is the spring-loaded mechanism that governs the contacts within the switch. In this article, we will explore why micro switch contacts are spring-loaded, how they function, their applications, and much more.

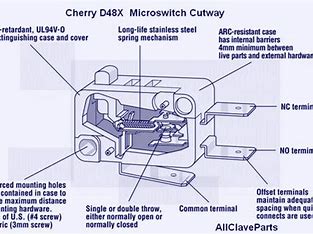

The primary role of the spring in a micro switch is to provide the necessary force to open and close the electrical contacts. When an external force is applied to the actuator of the micro switch, it compresses the spring. This compression is essential for the switch's operation, as it allows for quick and reliable switching action.
- Snap-Action Mechanism: The spring-loaded design contributes to a snap-action mechanism, which means that once a certain threshold force is applied, the switch rapidly changes state from open to closed or vice versa. This rapid action minimizes arcing and wear on the contacts, enhancing durability.
- Resetting Mechanism: After the external force is removed, the spring returns the actuator to its original position, thereby opening or closing the contacts as needed. This automatic resetting feature is crucial for applications where continuous operation is required without manual intervention.

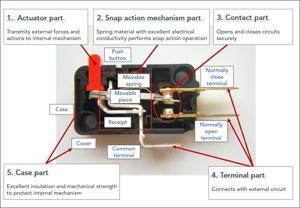

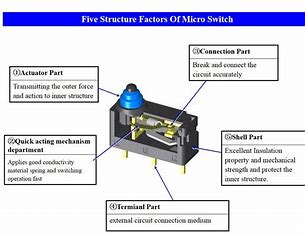

Micro switches operate based on a simple principle: a small mechanical movement at the actuator results in a significant movement at the electrical contacts. This relationship allows for effective switching with minimal effort.
1. Actuation: When pressure is applied to the actuator (often a lever or button), it compresses the internal spring.
2. Contact Movement: As the actuator moves, it causes the contacts within the switch to either make or break an electrical connection.
3. Spring Action: The spring's tension ensures that when pressure is released, it quickly returns the actuator to its neutral position, thus restoring the original state of the contacts.
The use of spring-loaded contacts in micro switches offers several advantages:
- Precision and Reliability: The spring mechanism ensures consistent contact pressure, which leads to reliable operation over millions of cycles.
- Reduced Arcing Damage: The snap-action design minimizes arcing during switching operations, reducing wear and prolonging switch life.
- Compact Design: Spring-loaded mechanisms allow for smaller switch designs without sacrificing performance.
- Versatility: Micro switches can be configured for various applications due to their ability to handle different actuation forces and contact configurations.
Micro switches come in various types, each designed for specific applications and operational requirements:
- Single Pole Single Throw (SPST): This type has one input and one output, making it suitable for simple on/off applications.
- Single Pole Double Throw (SPDT): SPDT switches can connect one input to one of two outputs, allowing for more complex control systems.
- Double Pole Double Throw (DPDT): These switches can control two separate circuits simultaneously and can be used for reversing motors or other functions requiring dual control.
- Momentary vs. Maintained: Momentary switches only remain in their active state while being pressed, while maintained switches stay in their active state until manually reset.
Micro switches are widely used across various industries due to their reliability and compact size. Some common applications include:
- Home Appliances: Used in devices like washing machines, microwaves, and refrigerators to detect door positions and ensure safe operation.
- Industrial Equipment: Employed in machinery for safety interlocks and limit detection in conveyor systems.
- Automotive Systems: Utilized in car door locks, seatbelt sensors, and brake light switches for safety features.
- Consumer Electronics: Found in devices like gaming controllers and remote controls where precise input detection is required.
Micro switches play a crucial role in safety systems across various industries. Their ability to provide reliable feedback on mechanical positions makes them indispensable in ensuring equipment operates safely. For example:
- In industrial settings, micro switches are often used as safety interlocks that prevent machinery from operating when guards or covers are not securely closed. This helps protect workers from potential injuries caused by moving parts.
- In automotive applications, micro switches are employed in critical safety features like seatbelt reminders and airbag deployment systems. They ensure that safety measures are activated only when necessary conditions are met.
When designing systems that incorporate micro switches, several factors must be considered:
1. Actuation Force: The force required to actuate a micro switch should be appropriate for its intended application. Too much force can lead to user fatigue or equipment damage; too little can result in unintentional actuation.
2. Environmental Conditions: Micro switches may be exposed to harsh environmental conditions such as moisture, dust, or extreme temperatures. Selecting switches with appropriate sealing and material properties is essential for longevity.
3. Electrical Ratings: It's crucial to choose micro switches that can handle the voltage and current levels of your application without risk of failure or arcing.
4. Mounting Options: Depending on installation requirements, micro switches come with various mounting options such as panel mount or PCB mount configurations.
5. Lifecycle Expectations: Understanding how often a switch will be actuated can help determine which type of micro switch will best meet performance expectations over time.
As technology continues to evolve, so do micro switches. Some notable trends include:
- Smart Sensors Integration: With advancements in IoT (Internet of Things), micro switches may increasingly incorporate smart sensor technology that allows them to communicate data about their status or performance remotely.
- Miniaturization: As devices become smaller and more compact, there is a growing demand for miniaturized micro switches that maintain high performance while occupying less space.
- Enhanced Durability: Innovations in materials science may lead to even more robust designs capable of withstanding extreme conditions while maintaining reliability over extended periods.
In conclusion, the spring-loaded mechanism of micro switches plays a vital role in their functionality and reliability. By ensuring quick actuation and consistent contact pressure, springs enable these switches to perform effectively across a wide range of applications. Their unique design features make them indispensable components in modern electronics and industrial machinery. As technology advances, we can expect further innovations that enhance their capabilities and broaden their applications even more.
A micro switch is a small electrical switch that operates with minimal force through a snap-action mechanism. It is commonly used for precise control in various devices.
Micro switches work by using an actuator that compresses a spring when pressed. This action causes internal contacts to either make or break an electrical connection rapidly.
Micro switches are used in home appliances (like refrigerators), industrial equipment (like conveyor systems), automotive systems (like door locks), and consumer electronics (like gaming controllers).
Micro switches are preferred due to their precision, reliability, compact size, quick response time, and ability to withstand millions of cycles without failure.
Yes, manufacturers offer customization options for micro switches regarding actuator types, contact configurations, and operating forces to meet specific application requirements.
