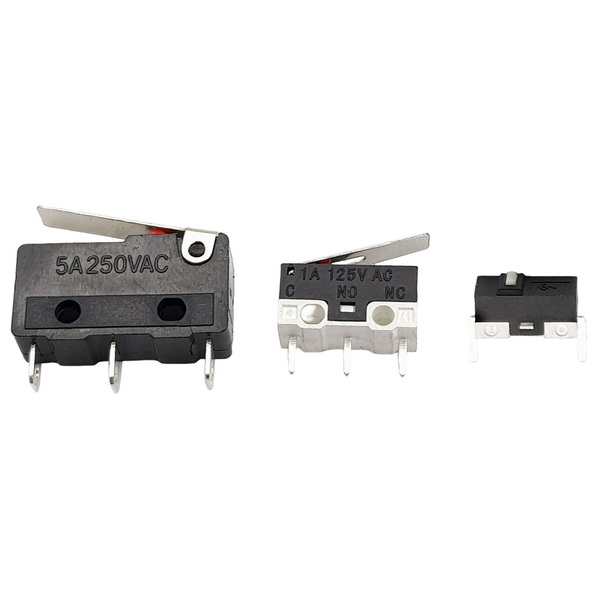

Micro switches are essential components in various electronic devices, including monitors. They serve as the on/off switches that control power and functionality. Given their critical role, a common question arises: Are all monitor micro switches interchangeable? This article explores the intricacies of micro switches, their types, compatibility, and factors that influence interchangeability.

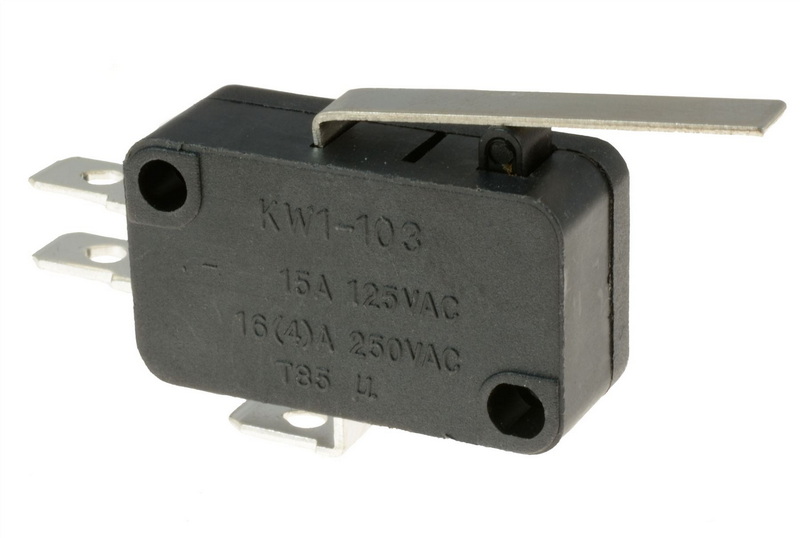

Micro switches, also known as snap-action switches, are electromechanical devices that open or close a circuit when a small force is applied to their actuator. They are widely used due to their reliability and precision in controlling electrical circuits.

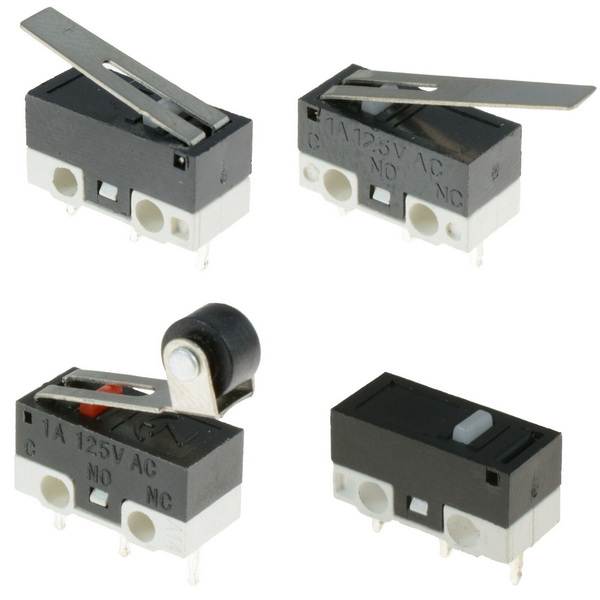

Micro switches come in various types, each designed for specific applications:
- Basic Micro Switch: The most common type, used in a wide range of applications.
- Sealed Micro Switch: Designed for harsh environments, protecting against dust and moisture.
- Subminiature Micro Switch: Ideal for applications with limited space, such as in medical devices.
- Snap Action Micro Switch: Features a spring-loaded actuator for quick switching.
While many micro switches may appear similar, several factors determine whether they are interchangeable:
1. Electrical Ratings: Each micro switch has specific voltage and current ratings. Using a switch with inappropriate ratings can lead to device failure or safety hazards.
2. Actuator Type: The actuator's design (lever, roller, push-button) affects how the switch interacts with other components. Different actuators may not function correctly in the same application.
3. Physical Dimensions: The size and mounting configuration of micro switches can vary significantly. A switch that fits physically may not operate effectively if its internal mechanics differ.
4. Operating Force: The amount of force required to actuate the switch can vary between models. Using a switch with a different operating force may lead to malfunction.
5. Temperature Ratings: Some micro switches are rated for higher temperatures than others. Using a lower-rated switch in high-temperature environments can reduce its lifespan or cause failure.
When considering whether micro switches are interchangeable, it's crucial to assess compatibility based on the factors mentioned above. Here's how to evaluate:
- Check Specifications: Always refer to the technical specifications of both the original and replacement switches. Look for matching voltage, current ratings, and physical dimensions.
- Consult Manufacturer Guidelines: Many manufacturers provide compatibility charts or guidelines for their products.
- Test Functionality: If possible, test the replacement switch in a controlled environment before full implementation.
Micro switches are used in various functions within monitors:
- Power Control: Turning the monitor on or off.
- Input Selection: Switching between different input sources (HDMI, VGA).
- Safety Features: Ensuring that the monitor operates only when certain conditions are met (e.g., door closed).

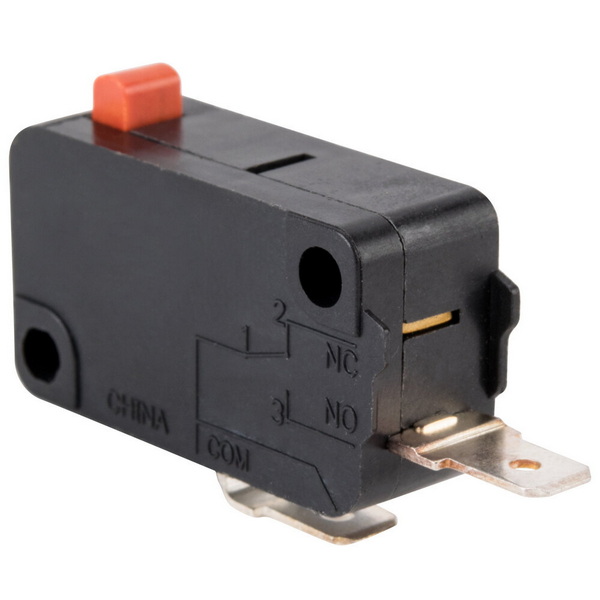

Micro switches operate using a simple mechanism that involves an actuator and internal contacts. When the actuator is pressed or moved, it triggers an internal mechanism that changes the state of the contacts from open to closed or vice versa. This snap-action mechanism allows for quick switching with minimal movement, making micro switches highly effective for various applications.
Maintaining micro switches is essential to ensure their longevity and reliable operation. Here are some steps you can follow:
- Keep It Clean: Dust and debris can affect performance. Use a dry cloth to wipe the surface periodically.
- Avoid Harsh Environments: Do not expose micro switches to explosive or flammable gases that could damage them.
- Inspect Contact Parts: Regularly check the contacts for wear and ensure they function correctly within their specified limits.
- Monitor Voltage and Current: Regularly check circuit voltage and current to prevent damage due to overloads.
- Periodic Maintenance: Schedule inspections every few months to identify potential issues before they lead to failure.
If you encounter problems with micro switches in monitors, consider these troubleshooting steps:
1. Identify the Problem: Determine if the switch is not making proper contact or if it's entirely unresponsive.
2. Disassemble the Switch: Open up the switch by removing its cover carefully.
3. Inspect Components: Look for any visible damage or wear on internal parts.
4. Clean Contacts: Use isopropyl alcohol on contacts if they appear dirty or corroded.
5. Replace Damaged Parts: If any components are beyond repair, replace them accordingly.
6. Reassemble and Test: After repairs, reassemble the switch and test it thoroughly before reinstalling it in your monitor.
- High reliability with long operational life.
- Accurate performance with minimal maintenance required.
- Versatile applications across various industries.
- Resistant to dust and moisture when properly sealed.
- Cost-effective solutions for many electronic devices.
- Potential for failure if low-quality components are used.
- Sensitivity to environmental conditions; harsh environments can lead to premature failure.
- Repairing micro switches can be complex and may require specialized knowledge or tools.
In conclusion, while many monitor micro switches may look similar and share some functional characteristics, they are not universally interchangeable. Factors such as electrical ratings, actuator types, physical dimensions, operating force, and temperature ratings must be carefully considered before replacing any micro switch in a monitor. Always consult specifications and manufacturer guidelines to ensure compatibility and safety.
Most micro switches have a lifespan ranging from 1 million to 10 million cycles depending on usage conditions.
Not necessarily; ensure that the replacement switch matches the original's specifications for voltage, current rating, and actuator type.
Signs include inconsistent operation, physical damage, or failure to engage/disengage properly.
While some manufacturers offer universal models, it's essential to verify compatibility with your specific application.
Regular inspection for dust accumulation and ensuring proper electrical connections can help maintain functionality.
