Micro switches are essential components in various electronic devices, providing reliable and precise switching actions. Whether you're working on a household appliance, an arcade machine, or any other device that utilizes micro switches, knowing how to properly remove wires from these switches is crucial for maintenance, repair, or replacement. This guide will walk you through the steps to safely and effectively remove wires from a micro switch, along with tips and best practices to ensure a successful operation.

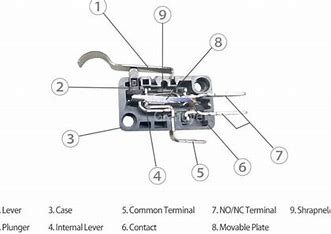

Before diving into the removal process, it's important to understand what a micro switch is and how it functions. A micro switch is a small, fast-acting switch that operates based on mechanical action. It consists of:
- Actuator: The part that you physically interact with, which can be a button or lever.
- Contacts: Internal components that open or close the electrical circuit when the actuator is pressed.
- Housing: The outer casing that protects the internal components.
Micro switches are commonly used in applications such as:
- Home appliances (ovens, washing machines)
- Automotive systems (door locks, seatbelt sensors)
- Industrial equipment (safety interlocks, limit switches)
To safely remove wires from a micro switch, you will need the following tools:
- Needle-nose pliers
- Flathead screwdriver
- Wire cutters (if necessary)
- Soldering iron (if the wires are soldered)
- Multimeter (for testing connections)
Before starting any work on electrical components, ensure that the device is unplugged or powered off. This will prevent any accidental shocks or short circuits.
Depending on the device you are working on, you may need to disassemble parts of it to access the micro switch. This often involves:
- Removing screws or clips securing the device's casing.
- Gently prying apart sections of the device without damaging any components.
Once you have access to the micro switch, take a moment to identify how the wires are connected. Most micro switches have three terminals:
- Common (COM): The main terminal where power enters.
- Normally Open (NO): The terminal that connects when the switch is activated.
- Normally Closed (NC): The terminal that remains connected until the switch is activated.
To remove wires from the micro switch:
1. If Wires are Connected via Terminals:
- Use needle-nose pliers to gently grasp the connector attached to the wire.
- Pull directly on the connector rather than the wire itself to avoid damage.
- If necessary, use a flathead screwdriver to gently pry off stubborn connectors.
2. If Wires are Soldered:
- Heat your soldering iron and carefully apply it to the solder joint connecting the wire to the terminal.
- Once the solder melts, use tweezers or pliers to lift away the wire.
- Be cautious not to overheat surrounding components.
3. If Using Wire Connectors:
- Follow similar steps as above by gripping and pulling on the connector.
After removing the wires, it's advisable to test connections using a multimeter. This ensures that there are no short circuits and that all components are functioning correctly.
- Always pull on connectors rather than wires to avoid damage.
- Keep track of where each wire connects for easy reassembly later.
- Use heat shrink tubing or electrical tape to cover exposed wire ends if they will be left disconnected temporarily.
While removing wires from micro switches is generally straightforward, some issues may arise:
- Stubborn Connectors: If connectors are difficult to remove, ensure you're not pulling on wires directly. Use tools like pliers for better grip.
- Soldering Challenges: If you're inexperienced with soldering, practice on scrap material first. Ensure your soldering iron is properly tinned for clean removal.
Removing wires from a micro switch can be accomplished safely with proper tools and techniques. By following this guide, you can ensure that your repairs or replacements proceed smoothly without damaging any components. Remember always to prioritize safety by disconnecting power before working on electrical devices.
A micro switch is a small, fast-acting switch used in various applications for precise control of electrical circuits.
Common signs include unresponsive controls, inconsistent operation, or visible damage such as burnt contacts.
Yes, with basic tools and careful handling, most users can replace a micro switch without professional help.
Essential tools include needle-nose pliers, flathead screwdriver, wire cutters, and possibly a soldering iron if wires are soldered.
Always ensure power is disconnected before working on electrical components and use insulated tools when necessary.
