Golf carts have become a popular mode of transportation on golf courses and in residential communities. A critical component of these vehicles is the micro switch, which plays a crucial role in various functions, including speed control and safety features. Understanding how to test your golf cart's micro switch can help ensure your vehicle operates smoothly and efficiently. This article will provide a comprehensive guide on testing micro switches in golf carts, including step-by-step instructions, troubleshooting tips, and frequently asked questions.
Micro switches are small electromechanical devices that open or close circuits when a specific force is applied. In golf carts, they are commonly used in the following applications:
- Accelerator Pedal: Activates the motor when the accelerator pedal is pressed.
- Brake Lights: Engages the brake lights when the brake pedal is pressed.
- Reverse Alarm: Triggers an alarm when the cart is put into reverse.

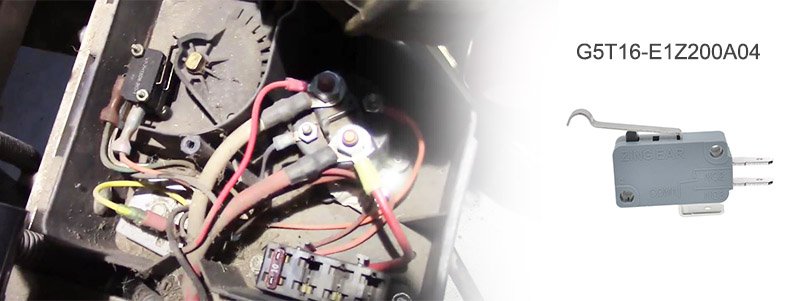

A micro switch operates on the principle of mechanical action and electrical conductivity. It consists of a movable actuator (often called an actuating lever) and a fixed contact point.
- Mechanical Action: When an external force is applied to the actuator, it moves or flexes slightly, triggering the micro switch.
- Electrical Conductivity: The movement produced in the actuator causes the movable contact point to either touch or move away from the fixed contact point within the switch. When contacts touch, it completes an electrical circuit, allowing current to flow through; this state is referred to as the “closed” position.
Before testing, it's essential to recognize signs that indicate a micro switch may be malfunctioning:
- Lack of Response: The cart does not move when the accelerator pedal is pressed.
- Brake Light Issues: Brake lights do not illuminate when the brake pedal is pressed.
- Reverse Alarm Malfunction: The reverse alarm does not sound or sounds continuously.
To test a micro switch, you will need:
- A digital or analog multimeter
- Basic hand tools (screwdriver, pliers)
- Safety gloves and goggles
Before starting any work on your golf cart, ensure that:
- The power is turned off.
- The key switch is in the "off" position.
This prevents any accidental activation while you are working on electrical components.
Identify the location of the micro switch you want to test. Common locations include:
- Under the accelerator pedal
- Near the brake pedal
- In the wiring harness for reverse alarms
Carefully disconnect the wires from the micro switch. It's important to label them if necessary to ensure correct reconnection later.
Set your multimeter to measure resistance (ohms). If your multimeter has a continuity setting, you can use that instead.
1. Check Open Circuit: Place one probe on one terminal of the micro switch and the other probe on the opposite terminal. The multimeter should show infinite resistance (open circuit) when the switch is not activated.
2. Activate the Switch: Manually press or trigger the switch. The multimeter should now show low resistance (closed circuit), indicating that the switch is functioning correctly.
If you find that the micro switch is not functioning correctly, visually inspect it for any signs of wear or damage, such as:
- Cracked casing
- Burnt contacts
- Dirt or debris accumulation
Cleaning contacts with electrical contact cleaner may restore functionality if dirt is an issue.
After testing and cleaning or replacing as necessary, reconnect all wires securely. Turn on the power and test all functions associated with that micro switch (accelerator, brake lights, etc.) to ensure everything operates correctly.
If your tests indicate that a micro switch is faulty but cleaning did not resolve the issue, consider these troubleshooting steps:
- Replace with New Switch: If cleaning does not work, replacing the micro switch may be necessary.
- Check Wiring: Inspect all wiring connected to the micro switch for frays or corrosion that could affect performance.
- Consult Manual: Refer to your golf cart's service manual for specific testing procedures related to your model.
Regular maintenance of your golf cart's micro switches can prevent potential issues before they escalate into more significant problems. Here are some maintenance tips:
- Routine Inspections: Regularly check all electrical components for wear and tear.
- Clean Connections: Keep all connections clean and free from corrosion.
- Lubricate Moving Parts: If applicable, lubricate any moving parts associated with micro switches to ensure smooth operation.
Understanding different types of micro switches can help you choose replacements more effectively:
- Subminiature Micro Switches: These are smaller switches used in compact spaces like electronic devices.
- Standard Micro Switches: These are commonly found in household appliances and automotive systems.
- Heavy-Duty Micro Switches: Designed for high durability and robustness in demanding applications.
Testing your golf cart's micro switches is a straightforward process that can save you time and money by identifying issues early. Regular maintenance of these components ensures safe operation and prolongs the life of your golf cart. If you encounter persistent issues despite testing and cleaning, consider consulting a professional technician for further assistance.
You will need a multimeter, basic hand tools (like screwdrivers), and safety gear such as gloves and goggles.
Signs include lack of response from pedals, malfunctioning brake lights, or issues with reverse alarms.
Yes, cleaning contacts may restore functionality if dirt or debris is causing issues. However, if damage is present, replacement may be necessary.
Replacement switches can be found at local auto parts stores or online retailers specializing in golf cart parts.
Always ensure power is off before working on electrical components to prevent accidents.
