The Single Pole Double Throw (SPDT) micro switch is a versatile and widely used component in electronic circuits. It serves as a crucial element for controlling the flow of electricity in various applications, from household appliances to industrial machinery. This article will delve into the workings of an SPDT micro switch, its construction, wiring, applications, and troubleshooting tips.

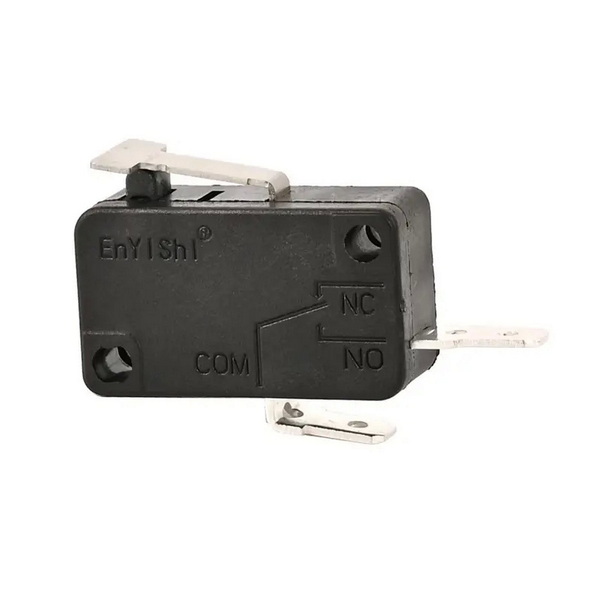

An SPDT micro switch has three terminals:
- Common (C): The central terminal where the input voltage is applied.
- Normally Open (NO): This terminal is disconnected from the common terminal when the switch is in its resting position.
- Normally Closed (NC): This terminal is connected to the common terminal when the switch is not activated.
The operation of an SPDT micro switch involves switching between two states—connecting the common terminal to either the NO or NC terminal depending on the position of the actuator.
When the actuator of an SPDT micro switch is pressed:
1. The common terminal (C) connects to the normally open terminal (NO), allowing current to flow through this path.
2. When the actuator is released, the common terminal reconnects with the normally closed terminal (NC), stopping current flow through the NO path.
This mechanism allows for seamless control over electrical circuits, making it ideal for applications that require switching between two different outputs.
Understanding the internal components of an SPDT micro switch can help clarify how it operates:
- Actuator: This is usually a lever or button that initiates the switching action.
- Movable Contact: A metal piece that moves to connect with either NO or NC terminals.
- Fixed Contacts: These are stationary contacts that remain in place and are connected to either NO or NC terminals.
- Spring Mechanism: A spring returns the movable contact to its default position when pressure on the actuator is released.
The construction ensures that even a small force on the actuator can change the state of the circuit, providing reliable and quick operation.
Wiring an SPDT micro switch correctly is vital for its operation. Here's a simple guide:
1. Identify Terminals:
- Common (C)
- Normally Open (NO)
- Normally Closed (NC)
2. Connect Wires:
- Connect one wire to the Common terminal.
- Connect another wire to either NO or NC depending on your application needs.
3. Insulate Connections:
- Use electrical tape or heat shrink tubing to prevent shorts.
4. Test the Switch:
- Ensure that when you press the actuator, it correctly toggles between NO and NC states.
SPDT micro switches are used in various applications due to their flexibility:
- Household Appliances: Such as washing machines and microwaves where they control different operations.
- Industrial Equipment: Used in assembly lines for detecting positions of mechanical parts.
- Automotive Applications: For controlling lights and other electrical components in vehicles.
- Robotics: To provide feedback on mechanical positions and states.
If you encounter problems with your SPDT micro switch, consider these troubleshooting tips:
- Intermittent Connections: Check for loose wires at terminals; ensure they are securely connected.
- Switch Not Activating: Test if the actuator moves freely and listen for a clicking sound indicating engagement.
- Incorrect Wiring: Double-check your connections against wiring diagrams to ensure proper setup.
- Overheating: If you notice any burning smell, disconnect power immediately and inspect for short circuits or overloads.
SPDT micro switches are essential components in modern electronics, allowing for efficient control over electrical circuits. Their simple design enables them to be used in a wide range of applications, making them invaluable in both consumer products and industrial systems. Understanding their operation, wiring, and troubleshooting can enhance your ability to work with these switches effectively.
An SPDT micro switch is a type of electrical switch that has one input terminal and two output terminals, allowing it to connect to either output based on its position.
To wire an SPDT micro switch, connect one wire to the common terminal, another wire to either NO or NC depending on your application, and ensure all connections are insulated properly.
Common applications include household appliances, industrial machinery, automotive systems, and robotics where switching between two states is required.
Check for loose connections, ensure proper actuator movement, verify wiring against diagrams, and look for signs of overheating or damage.
An SPDT switch has one common terminal that can connect to either of two output terminals (NO or NC), while other switches like SPST only have one output option.
