Micro switches, also known as miniature snap-action switches, are essential components in many electronic devices and systems. They are designed to operate quickly and efficiently with minimal mechanical force. This article will delve into the workings of micro switches, their types, applications, advantages, maintenance tips, and more. Additionally, we will include images and videos to enhance understanding.

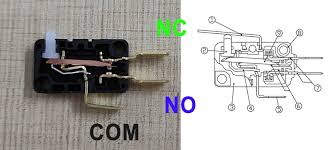

A micro switch is an electromechanical device that opens or closes an electrical circuit when a mechanical force is applied. It typically contains an actuating plunger that travels a short distance to trigger the contact sequence. The design of micro switches allows them to provide precise control in various applications.
The operation of a micro switch is based on the principle of snap-action. When a mechanical force is applied to the actuator (plunger), it moves a short distance before activating the switch. This movement causes the internal contacts to either open or close, allowing or interrupting the flow of electricity.
1. Actuator Movement: The actuator is pushed down by an external force.
2. Snap Action: Once the actuator reaches a specific point, it triggers a rapid change in the position of the internal contacts.
3. Circuit Activation: The movement either completes the circuit (Normally Open) or interrupts it (Normally Closed).
4. Return to Original State: When the force is removed, the actuator returns to its original position, resetting the switch.
Micro switches come in various types, each suited for specific applications:
- Subminiature Micro Switch: Ideal for compact spaces, often used in small electronic devices.
- Standard Micro Switch: Commonly found in household appliances and industrial equipment due to its balance between size and robustness.
- Heavy-Duty Micro Switch: Designed for high durability and load capacity, suitable for demanding environments.
- Sealed Micro Switch: These switches are designed to withstand harsh environmental conditions such as dust and moisture, making them ideal for outdoor applications.
- Tactile Micro Switch: Often used in keyboards and remote controls, these provide feedback when activated, enhancing user experience.
Micro switches are versatile and can be found in numerous applications:
- Consumer Electronics: Used in devices like microwaves, washing machines, and coffee makers.
- Automotive Systems: Implemented in safety features such as seatbelt sensors and door switches.
- Industrial Equipment: Utilized in machinery for safety interlocks and limit detection.
- Home Appliances: Found in refrigerators for door alarms and air conditioning units for temperature control.
- Medical Devices: Used in various medical equipment for patient monitoring systems and safety mechanisms.
Micro switches offer several benefits:
- High Precision: They provide accurate switching with minimal actuation force.
- Compact Size: Their small form factor allows integration into tight spaces.
- Durability: Designed for millions of operations, they are reliable in various environments.
- Cost-Effectiveness: Due to their simple design and widespread use, micro switches are generally affordable compared to other types of switches.
- Versatility: They can be used in a wide range of applications across different industries due to their adaptability.
To ensure optimal performance and longevity of micro switches:
- Regular Inspection: Check for wear and tear on actuators and contacts. Look for signs of corrosion or damage that may affect functionality.
- Cleanliness: Keep switches free from dust and moisture that could affect operation. Use appropriate cleaning agents that won't damage the switch components.
- Proper Selection: Choose micro switches based on voltage and current ratings suitable for your application. Ensure they meet environmental standards if used outdoors or in harsh conditions.
- Avoid Overloading: Ensure that the switch is not subjected to loads beyond its rated capacity to prevent premature failure.
- Testing Functionality: Periodically test the functionality of micro switches in critical applications to ensure they operate correctly under expected conditions.
While micro switches are reliable components, they can encounter several issues:
1. Mechanical Wear: Continuous use can lead to wear on the actuator or contacts, resulting in failure over time.
2. Environmental Damage: Exposure to moisture or corrosive substances can damage internal components.
3. Incorrect Installation: Misalignment during installation can prevent proper actuation, leading to malfunction.
4. Electrical Overload: Exceeding voltage or current ratings can cause overheating and failure.
5. Debris Accumulation: Dust or debris can obstruct the actuator's movement, affecting performance.
Recent advancements have led to innovations in micro switch technology:
- Smart Micro Switches: Some modern micro switches come equipped with sensors that allow them to communicate with other devices wirelessly, enhancing automation capabilities.
- Enhanced Durability Materials: New materials are being developed that improve resistance to environmental factors such as extreme temperatures and humidity.
- Miniaturization Trends: As electronics become smaller and more compact, micro switches are being designed with even smaller footprints while maintaining functionality.
Micro switches play a crucial role in modern electronics by providing reliable switching mechanisms with minimal mechanical force. Understanding how they work, their types, applications, advantages, maintenance practices, common issues, and recent innovations can help users make informed decisions when selecting these components for their projects.
Micro switches are designed to turn circuits on or off based on minimal actuation force, while limit switches detect the presence or absence of objects through direct mechanical action.
Consider factors such as electrical ratings (voltage and current), actuator type (lever or roller), environmental conditions (temperature range), and required durability.
Micro switches typically have limited voltage and current ratings; therefore, they may not be suitable for high-voltage applications without proper specifications.
Common failures include mechanical wear due to repeated use, contamination from dust or moisture, and incorrect specifications leading to overload conditions.
Regularly inspect for signs of wear, keep them clean from dust and moisture, and ensure they are selected appropriately based on their operational environment
