Micro switches are essential components in various electrical systems, particularly in applications requiring precise control of motor direction. This article explores the functioning of forward-reverse micro switches, their construction, applications, and troubleshooting tips.
A micro switch, also known as a snap-action switch, is a small electromechanical device that opens or closes an electrical circuit when a mechanical force is applied. They are characterized by their quick response time and reliability, making them ideal for applications where precise control is necessary.
The operation of a micro switch is based on the principle of mechanical action. When an external force is applied to the actuator (often a lever or button), it displaces a spring-loaded mechanism that either connects or disconnects electrical contacts. This action allows current to flow or stop flowing through the circuit.
The forward-reverse micro switch typically consists of several key components:
- Actuator: The part that the user interacts with, usually in the form of a lever or button.
- Contacts: The conductive parts that open or close the circuit. There are usually three terminals: Common (C), Normally Open (NO), and Normally Closed (NC).
- Spring: Provides the necessary force to return the actuator to its original position after release.
- Housing: Protects internal components from dust and moisture.
- Terminal Block: Facilitates easy connection to external wiring, ensuring secure electrical connections.

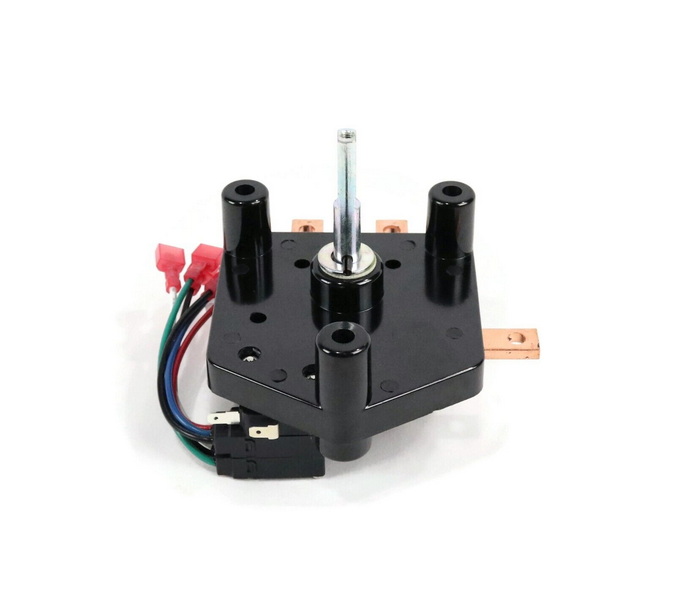

Forward-reverse micro switches are used primarily in applications where motors need to change direction. Here's how they work:
1. Initial State: When the switch is in its neutral position, both contacts remain open, preventing current flow.
2. Forward Operation: When the actuator is pressed in one direction, it closes the NO contact while opening the NC contact. This allows current to flow to the motor in one direction (forward).
3. Reverse Operation: Pressing the actuator in the opposite direction opens the NO contact and closes the NC contact, reversing the current flow and causing the motor to rotate in the opposite direction (reverse).
4. Safety Mechanism: Most forward-reverse micro switches include safety features that prevent accidental switching between forward and reverse while the motor is running. This is crucial for preventing damage to motors and connected systems.
5. Feedback Mechanism: Some advanced models incorporate feedback mechanisms that signal when the switch has been activated, providing additional safety and operational assurance.
Forward-reverse micro switches are widely used across various industries due to their reliability and precision. Common applications include:
- Electric Vehicles: Used in golf carts and electric scooters for controlling movement direction.
- Industrial Machinery: Employed in conveyor systems to control material flow direction.
- Home Appliances: Found in devices like garage door openers and window blinds for directional control.
- Robotics: Utilized in robotic arms for precise movement control.
- Aerospace Applications: In aircraft systems for controlling flaps and landing gear operations.
- Consumer Electronics: Used in devices such as printers and scanners where directional movement is required.
Understanding how to wire these switches correctly is essential for proper functioning. Below are typical wiring configurations:
1. Basic Wiring Diagram:
- Connect the power supply to the Common terminal.
- Connect one motor terminal to the NO contact for forward movement.
- Connect another motor terminal to the NC contact for reverse movement.
2. Control Circuit Wiring:
- Integrate push buttons for manual operation.
- Use limit switches at end positions to stop motor operation automatically.
- Implement relay circuits if higher voltage or current loads are involved.
3. Example Wiring Setup:
Power Supply ----> Common Terminal
|
+-----> NO Contact -----> Motor Terminal A (Forward)
|
+-----> NC Contact -----> Motor Terminal B (Reverse)
If a forward-reverse micro switch fails, it can lead to operational issues. Here are some common troubleshooting steps:
- Check Connections: Ensure all wires are securely connected and free from corrosion.
- Inspect Actuator: Verify that the actuator moves freely without obstruction.
- Test Contacts: Use a multimeter to check if contacts are functioning correctly when actuated.
- Check Mechanical Components: Examine springs and levers for wear or damage that could affect performance.
- Replace if Necessary: If internal components are damaged or worn out, consider replacing the micro switch entirely.
- Compact Size: Their small footprint allows them to fit into tight spaces where larger switches cannot.
- Quick Response Time: They provide almost instantaneous switching action, which is critical in high-speed applications.
- Durability: Designed for high cycle life, they can withstand millions of operations without failure.
- Versatility: Available in various configurations suitable for different applications and environments.
- Cost-Effectiveness: Generally inexpensive compared to other types of switches while providing reliable performance.
While forward-reverse micro switches offer numerous advantages, they also have limitations:
- Mechanical Wear Over Time: Continuous use can lead to wear on mechanical parts, necessitating periodic replacement.
- Sensitivity to Environmental Conditions: Extreme temperatures or exposure to moisture can affect performance unless properly housed.
- Limited Current Capacity: May not be suitable for high-power applications without additional relays or contactors.
To ensure optimal performance from forward-reverse micro switches, consider these best practices during installation:
- Proper Mounting: Ensure that switches are mounted securely to avoid vibration-induced failures during operation.
- Environmental Protection: Use enclosures or protective covers if installed in harsh environments to prolong lifespan.
- Regular Maintenance Checks: Schedule routine inspections to identify wear early and replace components as needed before failure occurs.
Forward-reverse micro switches play a crucial role in controlling motor direction across various applications. Understanding their operation, construction, troubleshooting techniques, advantages, limitations, and best practices can help ensure reliable performance in any system they are integrated into. By leveraging these insights, engineers and technicians can enhance system efficiency and longevity while minimizing downtime due to switch failures.
A micro switch is a small electromechanical device that opens or closes an electrical circuit when an external force is applied to its actuator.
A forward-reverse micro switch specifically controls motor direction by providing two distinct paths for current flow, while regular switches typically only open or close a single circuit.
They are commonly used in electric vehicles, industrial machinery, home appliances, robotics, aerospace applications, and consumer electronics for directional control of motors.
Check connections for security, inspect the actuator for obstructions, test contacts with a multimeter, check mechanical components for wear, and replace if necessary.
Yes, many designs include mechanisms that prevent accidental switching between forward and reverse while the motor is running to avoid damage.
