Micro switches are essential components in many electronic devices, providing precise control and reliable operation. This article will explore the wiring diagrams for micro switch tactile push button switches, detailing how they function, their components, and practical applications. By the end, you will have a comprehensive understanding of how to wire these switches effectively.

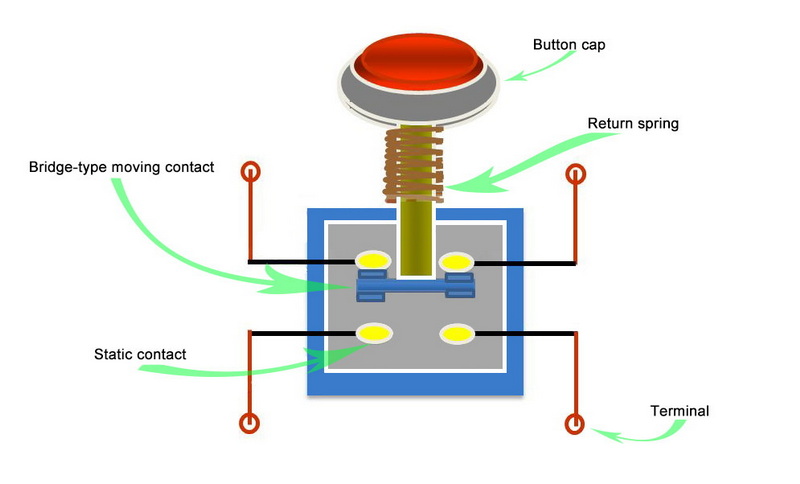

A micro switch, also known as a snap-action switch, is an electromechanical device that opens or closes a circuit when a small physical force is applied. These switches are designed to operate with minimal movement and are highly reliable, making them suitable for various applications, from household appliances to industrial machinery.
- Actuator: The part that the user interacts with; it can be a button or lever.
- Contacts: Internal components that open or close the circuit.
- Spring Mechanism: Ensures the switch snaps back to its original position after being activated.
- Terminals: Connection points for wiring; typically include Common (COM), Normally Open (NO), and Normally Closed (NC).
When the push button on a micro switch is pressed, it applies force to the actuator. This action causes the internal mechanism to switch positions, either completing or breaking an electrical circuit. Releasing the button allows the switch to return to its original state.

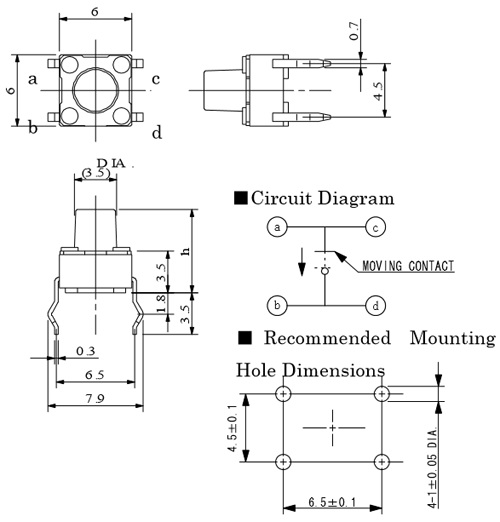

Understanding the wiring diagram is crucial for correctly implementing micro switches in your projects. The basic configuration involves three terminals:
- Common (COM): The main connection point for power.
- Normally Open (NO): The circuit is open until the switch is pressed.
- Normally Closed (NC): The circuit is closed until the switch is pressed.

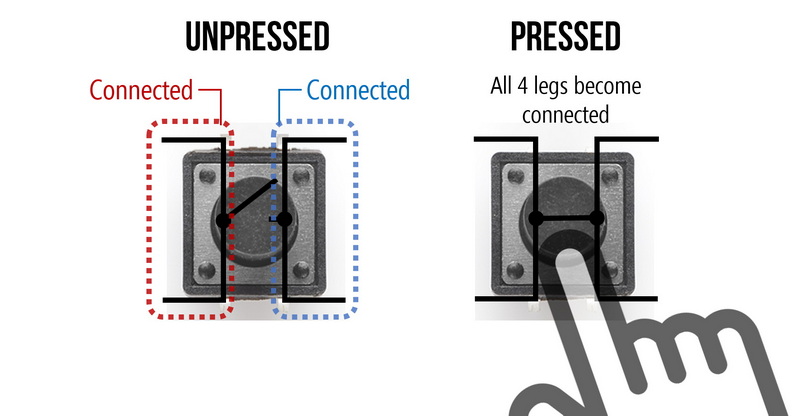

Here's a basic wiring diagram for a micro switch:
+ Power Source
|
|
COM
|
NO
|
Load

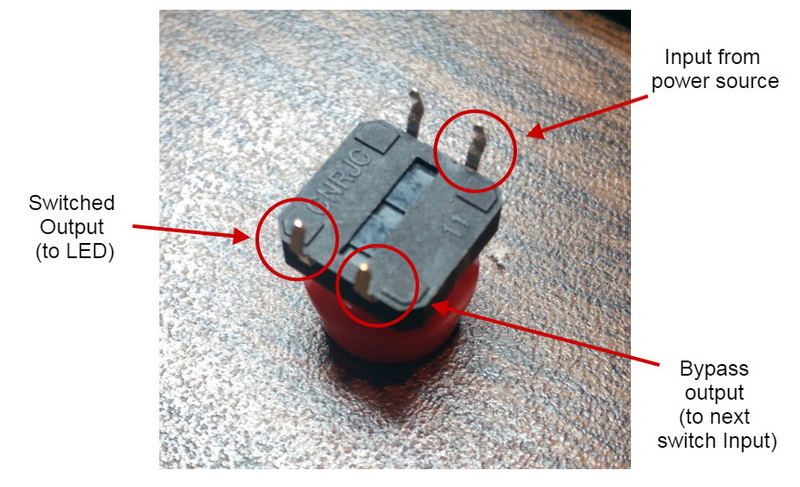

1. Identify Terminals: Determine which terminal corresponds to COM, NO, and NC on your micro switch.
2. Connect Wires:
- Connect the power source's positive wire to the COM terminal.
- Connect the load wire (e.g., an LED or motor) to either the NO or NC terminal based on desired functionality.
3. Secure Connections: Ensure all connections are secure to prevent accidental disconnections.
4. Test Operation: Press the push button to verify that the micro switch operates as expected.
For more complex applications, you can integrate additional components into your micro switch wiring:
- Debouncing Circuits: Use capacitors or specialized ICs to eliminate contact bounce and ensure clean signals.
- LED Indicators: Integrate LEDs for visual feedback on the switch status.
- Protective Components: Use diodes to protect against voltage spikes.
Micro switches are widely used in various devices due to their reliability and precision. Common applications include:
- Home Appliances: Used in washing machines and microwaves for door safety interlocks.
- Automotive Systems: Employed in vehicle doors and seatbelt reminders.
- Industrial Equipment: Used in conveyor systems and safety guards.
When working with micro switches, you may encounter some common issues:
- Intermittent Operation: Check for loose connections or corrosion on terminals.
- Unresponsive Switch: Inspect for mechanical failure or verify that power supply connections are intact.
Micro switches with tactile push buttons are versatile components that provide reliable operation in various applications. Understanding their wiring diagrams and configurations allows users to implement them effectively in projects ranging from simple circuits to complex industrial systems.
The Normally Open (NO) terminal allows current to flow only when the switch is pressed, while the Normally Closed (NC) terminal allows current to flow until the switch is activated.
Micro switches are generally designed for low-power applications. For high-power needs, consider using relays or contactors instead.
Common signs of a faulty micro switch include intermittent operation, unresponsiveness when pressed, or visible physical damage.
You will typically need wire strippers, screwdrivers, soldering tools (if applicable), and possibly multimeters for testing connections.
Yes, integrating LED indicators is common practice for providing visual feedback when a micro switch is activated.
