Connecting a 4-way push switch can seem daunting, especially for those who are not experienced with electrical wiring. However, with the right guidance and understanding of the components involved, it can be a straightforward task. This article will provide a comprehensive guide on how to connect a 4-way push switch, including necessary tools, wiring diagrams, and safety precautions.

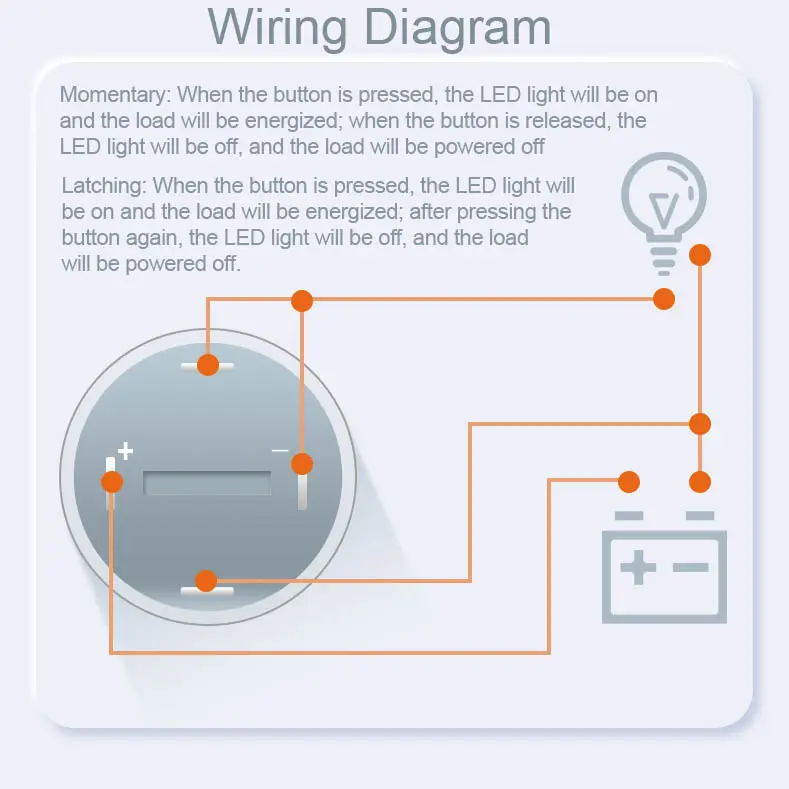

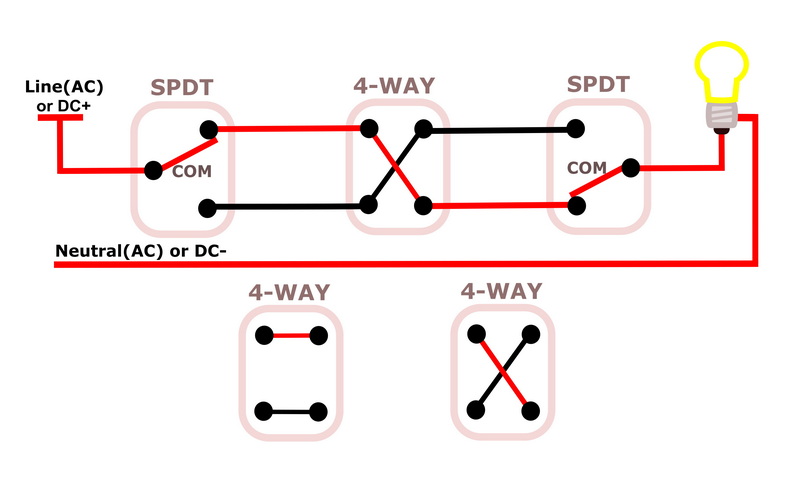

A 4-way switch is used in conjunction with two 3-way switches to control a light or a set of lights from three or more locations. The key features of a 4-way switch include:
- Four terminals: Two pairs of terminals are used for connecting traveler wires.
- Two positions: The switch can toggle between two sets of connections, allowing current to flow through different paths.
Before starting the wiring process, gather the following tools and materials:
- Tools:
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Lineman's pliers
- Voltage tester
- Utility knife
- Materials:
- Two 3-way switches
- One 4-way switch
- Electrical wire (14/3 or 12/3 NM cable)
- Wire nuts
- Grounding wire (if not already included in the cable)
Always begin by ensuring your safety:
1. Turn off the power at the circuit breaker or fuse box.
2. Use a voltage tester to confirm that the power is off in the circuit you will be working on.

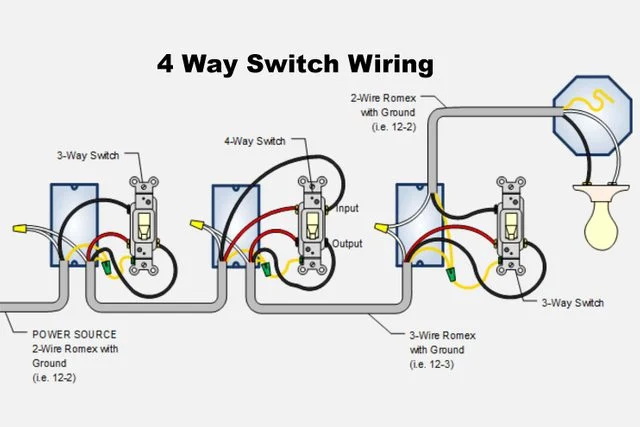

Understanding how your switches will be connected is crucial:
- The first and last switches in the circuit will be 3-way switches.
- The middle switch will be the 4-way switch.
1. Connect the power source to the common terminal (usually black) of the first 3-way switch.
2. Attach two traveler wires (typically red and black) from this switch to the input terminals of the 4-way switch.
1. Identify the input and output terminals on your 4-way switch:
- The input terminals are where you connect wires from the first 3-way switch.
- The output terminals are where you connect wires to the second 3-way switch.
2. Connect the traveler wires coming from the first 3-way switch to the input terminals on the 4-way switch.
3. Connect another pair of traveler wires from the output terminals of the 4-way switch to the traveler terminals on the second 3-way switch.
1. Connect the common terminal of this second switch to your light fixture.
2. Ensure that all traveler wires are connected correctly according to their respective terminals.
1. Connect all ground wires together using wire nuts.
2. Attach pigtails (short pieces of grounding wire) from this bundle to each switch's ground terminal.
Once everything is connected:
1. Double-check all connections for security and correctness.
2. Turn on the power at the circuit breaker.
3. Test each switch to ensure that they all control the light as intended.
- Incorrect Terminal Connections: Ensure that traveler wires are connected correctly between switches.
- Neglecting Ground Connections: Always connect ground wires for safety.
- Assuming Wire Colors: While black and red are common colors for travelers, verify connections using a multimeter if unsure.
Connecting a 4-way push switch is an effective way to control lighting from multiple locations in your home. By following this guide, you can successfully wire your switches while ensuring safety and functionality. Remember that if you feel uncertain at any point, consulting with a licensed electrician is always advisable.
A four-way switch allows you to control a light fixture from three or more locations by working in conjunction with two three-way switches.
No, you must use specifically labeled four-way switches for this purpose; they have four terminals designed for this configuration.
Typically, four-way switches have two pairs of terminals labeled as "IN" (input) and "OUT" (output). Check your manufacturer's instructions for specific details.
If connected incorrectly, your lights may not function properly or could remain permanently off or on. It's essential to follow wiring diagrams closely.
If you have experience with electrical work, it can be safe; however, if you're unsure, it's best to hire a licensed electrician.
