Tinkercad is a popular online platform for creating 3D designs and simulating electronic circuits. One of the fundamental components in electronic circuits is the slide switch, which allows users to control the flow of electricity in their projects. This comprehensive guide will walk you through the process of connecting a slide switch in Tinkercad, providing you with the knowledge and skills to incorporate this versatile component into your virtual circuits.
Before diving into the connection process, it's essential to understand what a slide switch is and how it functions. A slide switch is a mechanical device that allows you to control the flow of electricity in a circuit by sliding a small lever or button from one position to another. Unlike momentary switches like push buttons, slide switches maintain their position until manually changed, making them ideal for applications that require a constant on or off state.
A typical slide switch in Tinkercad has three pins:
1. Common pin (middle)
2. Terminal 1 (left)
3. Terminal 2 (right)
The common pin is always connected, while the switch alternates the connection between Terminal 1 and Terminal 2 based on the slider's position.
To begin connecting a slide switch in Tinkercad, follow these steps:
1. Log in to your Tinkercad account
2. Create a new circuit by clicking on "Create new design" and selecting "Circuits"
3. Once in the circuit editor, you'll see a blank workspace with a components panel on the right side
Before connecting the slide switch, you'll need to add the necessary components to your circuit. For this tutorial, we'll create a simple LED circuit controlled by a slide switch.
1. From the components panel, drag and drop the following onto your workspace:
- 9V battery
- Slide switch
- LED
- 220Ω resistor
2. Arrange the components in a logical order on the breadboard
Now that you have all the components in place, it's time to connect the slide switch to control the LED circuit.
1. Connect the positive terminal of the 9V battery to the positive rail of the breadboard
2. Connect the negative terminal of the 9V battery to the negative rail of the breadboard
1. Place the slide switch on the breadboard, ensuring that each pin is in a separate row
2. Connect a wire from the positive rail to the common pin (middle) of the slide switch
1. Connect a wire from Terminal 1 (left pin) of the slide switch to one leg of the 220Ω resistor
2. Connect the other leg of the resistor to the anode (longer leg) of the LED
3. Connect the cathode (shorter leg) of the LED to the negative rail of the breadboard
Once you've completed the connections, it's time to test your circuit:
1. Click the "Start Simulation" button in Tinkercad
2. Move the slider on the switch to the left position (connecting the common pin to Terminal 1)
3. Observe that the LED lights up
4. Move the slider to the right position (connecting the common pin to Terminal 2)
5. Observe that the LED turns off
If the LED behaves as expected, congratulations! You've successfully connected a slide switch in Tinkercad.
Now that you've mastered the basics of connecting a slide switch, let's explore some advanced applications:
You can use a slide switch to alternate between two different LEDs:
1. Add a second LED to your circuit
2. Connect the anode of the second LED to Terminal 2 of the slide switch
3. Connect the cathode of the second LED to the negative rail through a resistor
Now, sliding the switch will alternate between the two LEDs.

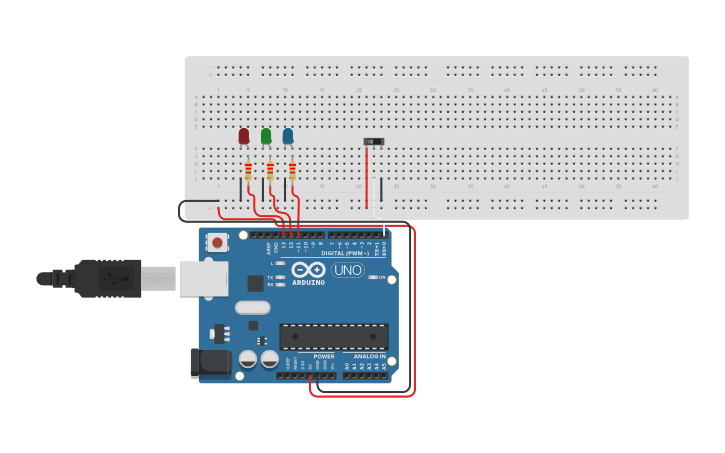

Tinkercad also allows you to simulate Arduino projects. Here's how you can use a slide switch with an Arduino:
1. Add an Arduino board to your workspace
2. Connect the common pin of the slide switch to a digital pin on the Arduino (e.g., pin 7)
3. Connect Terminal 1 of the switch to the 5V output of the Arduino
4. Connect Terminal 2 of the switch to the ground (GND) of the Arduino
To ensure the best results when working with slide switches in Tinkercad, keep these tips in mind:
1. Always use appropriate resistors to protect your LEDs and other components
2. Double-check your connections before starting the simulation
3. Experiment with different circuit configurations to understand the versatility of slide switches
4. Use color-coded wires to make your circuits easier to understand and debug
5. Take advantage of Tinkercad's labeling feature to add notes and explanations to your circuits
If you encounter problems with your slide switch circuit, consider the following:
1. Ensure that the switch is properly connected to the correct pins
2. Check for any loose connections or misplaced components
3. Verify that your power source is connected correctly
4. Make sure you're using the appropriate resistor values for your LEDs
5. If using an Arduino, confirm that you've selected the correct pin in your code
Connecting a slide switch in Tinkercad is a fundamental skill that opens up a world of possibilities for your virtual circuit designs. By following this guide, you've learned how to integrate a slide switch into a basic LED circuit, control multiple LEDs, and even use it with an Arduino simulation. As you continue to explore Tinkercad's features, you'll find that slide switches are versatile components that can be used in a wide range of projects, from simple on/off controls to more complex switching mechanisms.
Remember to experiment with different configurations and applications to fully grasp the potential of slide switches in your designs. With practice, you'll become proficient in incorporating these useful components into your Tinkercad projects, enhancing your skills as a virtual circuit designer.
A slide switch maintains its position until manually changed, allowing for constant on or off states. A push button, on the other hand, is a momentary switch that only completes the circuit when pressed and returns to its original position when released. Slide switches are ideal for applications requiring a sustained state, while push buttons are better for temporary activation.
Yes, you can use multiple slide switches in a single Tinkercad circuit. This allows for more complex control schemes and can be useful for projects that require multiple independent on/off controls or for selecting between different circuit paths.
Tinkercad doesn't have a built-in DPDT slide switch component. However, you can simulate one by using two single-pole, double-throw (SPDT) slide switches and connecting them so that they move together. This arrangement allows you to control two separate circuits simultaneously with a single switch action.
While Tinkercad provides a good simulation of slide switch behavior, it may not account for all real-world factors such as switch bounce, contact resistance, or mechanical wear. Additionally, Tinkercad's component library might not include all types of slide switches available in the physical world. However, for most basic to intermediate circuit designs, Tinkercad's slide switch simulation is more than adequate.
To incorporate a slide switch into a more complex project like a home automation system, you can use it as an input device for an Arduino or other microcontroller. The switch state can be read by the microcontroller and used to trigger various actions, such as turning on lights, adjusting thermostats, or activating security systems. You can simulate these scenarios in Tinkercad by combining the slide switch with other components and programming the Arduino accordingly.
