Micro switches are small, highly sensitive switches that are commonly used in various electronic devices, appliances, and machinery. They play a crucial role in controlling electrical circuits and ensuring the proper functioning of many devices. Understanding how to open a micro switch safely and effectively is essential for maintenance, repair, or replacement. This article will guide you through the process of opening a micro switch, including the tools needed, step-by-step instructions, and some tips to avoid damage.
Before diving into the disassembly process, it's important to understand what a micro switch is and how it operates.
- Components: A typical micro switch consists of several key components:
- Actuator: This is the part that is physically pressed or activated.
- Housing: The outer shell that protects the internal components.
- Terminals: Connection points for electrical circuits.

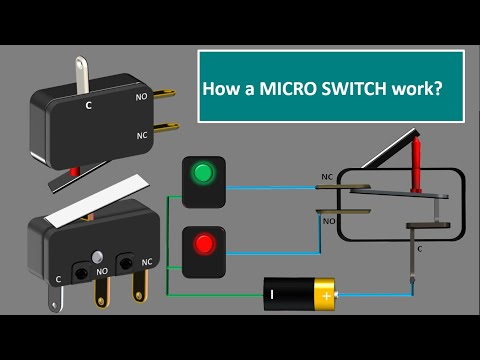

- Functionality: Micro switches operate on the principle of mechanical action. When an external force is applied to the actuator, it moves a contact point within the switch, either completing or breaking an electrical circuit.
Micro switches are widely used in various applications due to their reliability and sensitivity. Some common uses include:
- Home Appliances: They are found in devices like washing machines, microwaves, and refrigerators to control functions such as door locks and safety interlocks.
- Industrial Equipment: In manufacturing settings, micro switches are used for limit sensing in machinery, ensuring that equipment operates within safe parameters.
- Automotive Applications: They can be found in vehicles for functions like seatbelt reminders and door ajar alerts.
- Consumer Electronics: Many electronic devices utilize micro switches for user interface controls.
Understanding these applications can help you appreciate the importance of maintaining these switches and knowing how to open them when necessary.
To open a micro switch safely, you will need a few basic tools:
- Flat-blade screwdriver: Useful for prying open the housing.
- Thin blade or wire: To help disengage clips or tabs.
- Tweezers: For handling small components.
- Multimeter (optional): To test functionality after reassembly.
- Magnifying glass (optional): Helpful for inspecting small parts closely.
Ensure you have a clean and well-lit workspace. Gather all necessary tools and ensure that you have ample space to work without distractions.
Before starting any work on electrical components, always disconnect power to prevent electric shock. If the micro switch is part of an appliance, unplug it from the wall outlet. If it's integrated into machinery, ensure that all power sources are turned off.
Most micro switches are held together by clips or screws. Inspect your switch carefully to determine how it is assembled. Look for:
- Screws: If present, use your screwdriver to remove them.
- Clips: These may require gentle prying with your flat-blade screwdriver or thin blade.
Using your screwdriver or thin blade, gently pry open the housing at the designated opening point. Be cautious not to apply too much force as this can damage the plastic casing.
Once you have access to the inside of the micro switch:
1. Take note of how components are arranged. This will help during reassembly.
2. Carefully lift out the actuator and any other internal parts. Use tweezers if necessary.
Check all components for signs of wear or damage. Look for:
- Corrosion on terminals
- Broken springs
- Worn-out contacts
If any parts are damaged beyond repair, consider replacing them instead of attempting to fix them.
If you notice dirt or corrosion on any components:
- Use a cotton swab dipped in isopropyl alcohol to clean contacts and terminals.
- Allow parts to dry completely before reassembling.
To reassemble:
1. Place all internal components back in their original positions.
2. Snap or screw the housing back together carefully.
3. Ensure that all clips are securely fastened.
After reassembling, reconnect power and test the micro switch using a multimeter to ensure it operates correctly. Check both normally open and normally closed configurations as applicable.
- Always handle components gently to avoid breaking delicate parts.
- Keep track of all screws and small pieces during disassembly; using a small container can help prevent loss.
- If you're unsure about any step, consult a diagram or guide specific to your micro switch model.
Micro switches can encounter several issues over time due to wear and tear or environmental factors. Here are some common problems:
- Failure to Activate: This could be due to dirt accumulation on contacts or mechanical failure within the actuator.
- Intermittent Operation: If a micro switch works sporadically, it may indicate worn contacts or loose connections.
- Physical Damage: Cracks in the housing or broken actuators can render a micro switch non-functional.
Understanding these issues can help you diagnose problems quickly when they arise.
To prolong the lifespan of your micro switches and reduce the need for frequent repairs:
- Regularly inspect switches for signs of wear or damage.
- Keep areas around switches clean and free from dust or debris that could interfere with operation.
- Avoid applying excessive force when using devices that contain micro switches; gentle handling is key.
Opening a micro switch can be straightforward if done with care and attention to detail. By following these steps and using the right tools, you can successfully disassemble, inspect, clean, and reassemble your micro switch without damaging it. Regular maintenance can extend its lifespan and ensure reliable operation in your devices.
Micro switches are used in various applications such as appliances (like refrigerators), industrial equipment, and safety devices due to their reliability in controlling electrical circuits.
Yes, depending on the damage level. If only minor issues like dirt or corrosion exist, cleaning may suffice. However, if major components are broken, replacement might be necessary.
You can test it with a multimeter for continuity when activated; no continuity indicates a faulty switch.
Yes, there are various types based on actuator design (e.g., lever type, plunger type) and contact configuration (normally open vs normally closed).
Yes, as long as you disconnect power before starting work and handle all components carefully during disassembly.
