When it comes to maintaining your Winnebago, understanding how to remove and replace the slide switch is essential. The slide switch controls the extension and retraction of the slide-out rooms, which are critical for maximizing living space in your RV. This guide will walk you through the process step-by-step, ensuring that you can safely and effectively remove the slide switch when necessary.
What is a Slide Switch?
A slide switch in a Winnebago is typically a double-pole double-throw (DPDT) switch. It reverses the polarity to the motor that operates the slide-out mechanism, allowing it to extend or retract. Understanding its function is crucial before attempting any repairs or replacements.
Before you begin, gather the following tools and materials:
- Screwdriver (flathead and Phillips)
- Wire cutters/strippers
- Electrical tape
- Replacement slide switch (if necessary)
- Safety gloves
Ensure that your RV is parked on a level surface with the parking brake engaged. Disconnect the battery or turn off the power to prevent any electrical shorts during the process.
The slide switch is usually located near the entrance of your RV or on the control panel. Refer to your Winnebago manual for specific locations based on your model.
Using a screwdriver, carefully remove any screws holding the cover plate in place. Gently lift off the cover to expose the switch.
Take note of how the wires are connected to the back of the switch. It's helpful to take a picture for reference later.
- Disconnect each wire by either unscrewing them or gently pulling them out of their connectors.
If wires are damaged or corroded, consider cutting and stripping them back for better connections later.
Once all wires are disconnected, unscrew any screws holding the switch in place. Carefully pull it out from its housing.
If you're replacing an old switch, follow these steps:

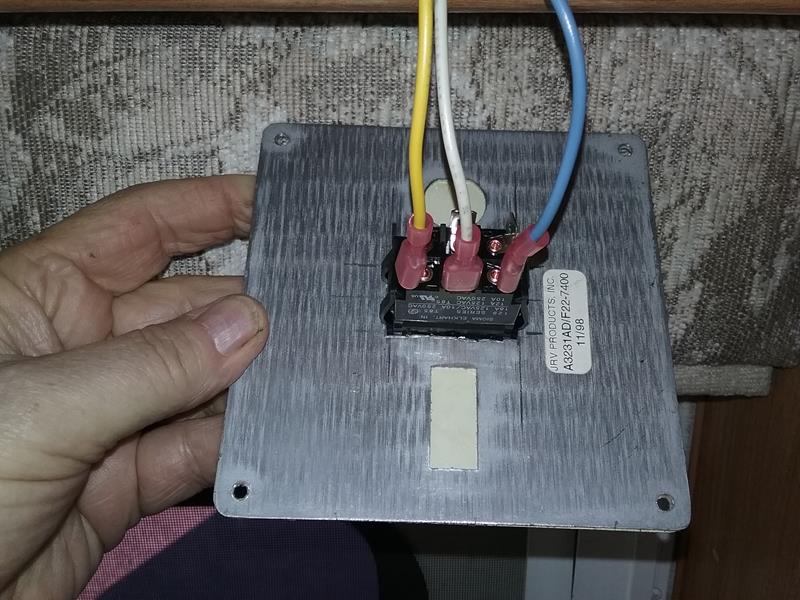

Referencing your earlier notes or pictures, connect each wire to the corresponding terminal on the new switch.
- Use electrical tape to secure any exposed wire connections for safety.
Insert the new switch into its housing and secure it with screws.
Reattach any cover plates that were removed earlier, ensuring everything is snugly fit.
After installation, reconnect your battery or restore power. Test the new slide switch by pressing it to extend and retract the slide-out rooms. Ensure that everything operates smoothly without any unusual noises or resistance.
Even after replacing your slide switch, you may encounter issues with your slide-outs. Here are some common problems and troubleshooting tips:
- Slide Won't Extend/Retract: If your slide-out fails to operate, check if there's adequate power supply. Ensure that your RV's engine is running while operating slide-outs, as this provides necessary voltage from the alternator[5].
- Partial Extension: If your slide-out only extends partially, it could be jammed due to an obstruction inside or outside. Inspect both areas carefully and clear any debris before attempting to operate again[6].
- Noisy Operation: A grinding noise during operation may indicate misalignment or lack of lubrication. Regularly maintain moving parts by applying appropriate lubricants as recommended in your RV manual[5].
In case your slide-out gets stuck either extended or retracted, knowing how to manually override it can save you from significant inconvenience:
1. Locate Manual Override: Most RVs come with a manual override feature that allows you to bring in or out slides manually using a crank or wrench.
2. Release Hydraulic Pressure: If you have a hydraulic system, ensure that hydraulic pressure is released before attempting manual operation[4].
3. Use Crank Handle: For rack-and-pinion systems, use a crank handle designed for your model; ensure you have it on hand before heading out on trips[4].
4. Consult Manual: Always refer to your owner's manual for specific instructions tailored to your model as procedures can vary significantly between different systems[6].
To prevent issues with your slide-outs in the future, consider these maintenance tips:
- Regular Inspections: Check seals and gaskets for wear and tear regularly; replace them if necessary to prevent water leaks.
- Clean Seals: Keep seals clean using mild soap and water; avoid harsh chemicals that could degrade material quality[5].
- Lubricate Mechanisms: Apply lubricant on moving parts at least twice a year; this ensures smooth operation and prevents wear[5].
- Check Electrical Connections: Periodically inspect electrical connections for corrosion or loose wiring; this ensures reliable operation of switches and motors[6].
Removing and replacing a Winnebago slide switch is a straightforward task that can be accomplished with basic tools and knowledge. Regular maintenance of your RV's electrical components, including slide switches, ensures that you can enjoy your travels without unexpected issues. Understanding how to troubleshoot common problems can further enhance your experience as an RV owner.
Check for loose connections or damaged wires first. If everything looks good but it still doesn't work, consider replacing the switch.
It's recommended to inspect your slide-out mechanisms at least once every six months for wear and tear.
No, slide-outs require electrical power to operate. Always ensure that your RV's battery is charged before attempting to extend or retract them.
Yes, as long as you follow safety precautions and have basic electrical knowledge. If unsure, consult a professional.
Refer to your Winnebago manual or consult with an RV parts dealer for specifications on compatible switches for your model.
