Soldering a 6 pin micro switch is a crucial skill for electronics enthusiasts and professionals alike. This comprehensive guide will walk you through the process step-by-step, providing valuable insights and tips to ensure a successful soldering experience. Whether you're working on a DIY project or repairing electronic devices, mastering this technique will prove invaluable.

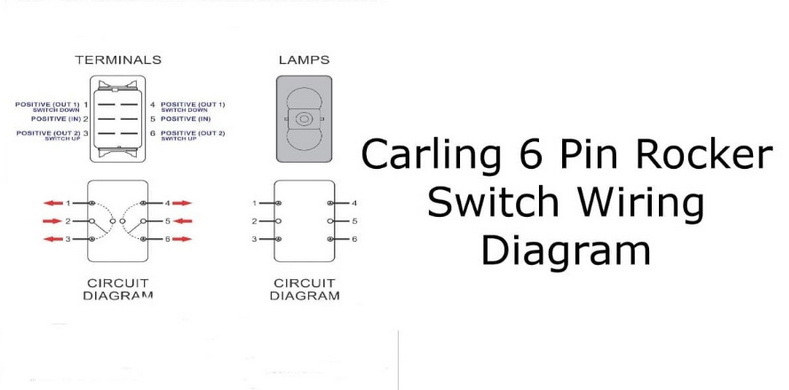

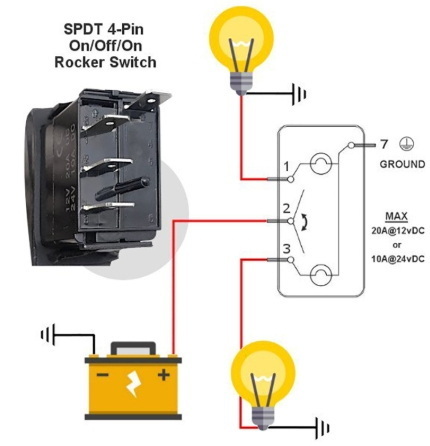

Before diving into the soldering process, it's essential to familiarize yourself with the 6 pin micro switch. These switches are commonly used in various electronic applications, including computer peripherals, automotive systems, and industrial equipment. The six pins typically consist of two sets of three pins each, corresponding to two separate circuits within the switch.
To solder a 6 pin micro switch effectively, you'll need the following tools and materials:
- Soldering iron (30 watts recommended)
- Solder (preferably 60/40 or 63/37 rosin-core)
- Flux (optional, but recommended)
- Solder wick or desoldering pump
- Wire strippers
- Needle-nose pliers
- Multimeter
- Safety glasses
- Ventilation fan or fume extractor
- Heat-resistant work surface
- Cleaning solution (isopropyl alcohol)
- Cotton swabs or lint-free cloth
Before you begin soldering, it's crucial to set up a proper workspace:
1. Choose a well-ventilated area to work in.
2. Use a heat-resistant work surface to protect your table or desk.
3. Ensure proper lighting to see small details clearly.
4. Keep your soldering iron in a stand when not in use.
5. Have a damp sponge or brass wool nearby for cleaning the soldering iron tip.
Begin by carefully examining the 6 pin micro switch. Ensure that all pins are straight and free from any debris or oxidation. If necessary, clean the pins using isopropyl alcohol and a cotton swab.
Set your soldering iron to the appropriate temperature, typically around 315°C to 370°C (600°F to 700°F). Allow it to heat up fully before use. Clean the tip of the iron using a damp sponge or brass wool to ensure optimal heat transfer.
While many modern solders contain flux, applying additional flux can improve solder flow and adhesion. Use a small brush or flux pen to apply a thin layer of flux to each pin of the micro switch.
Melt a small amount of solder onto the tip of the soldering iron. This process, known as "tinning," helps improve heat transfer and prevents oxidation of the tip.
Secure the 6 pin micro switch in place using a helping hand tool or PCB holder. Ensure that the pins are easily accessible and that the switch is stable during the soldering process.
1. Touch the tinned soldering iron tip to both the pin and the pad simultaneously.
2. Hold for 2-3 seconds to allow heat transfer.
3. Introduce solder to the joint, allowing it to flow evenly.
4. Remove the solder and then the iron, keeping the joint still until it cools.
Repeat the process for the remaining five pins, taking care to maintain consistent heat and solder application across all joints.
After soldering all six pins, carefully inspect each joint. Look for:
- Smooth, shiny solder joints
- Concave solder fillet shape
- No excess solder or bridges between pins
Use isopropyl alcohol and a cotton swab or lint-free cloth to clean any flux residue from the soldered area. This step helps prevent corrosion and ensures a clean finish.
Use a multimeter to test the continuity and functionality of the micro switch. Ensure that all connections are working as expected and that there are no short circuits between pins.
If you need to remove or replace a 6 pin micro switch, follow these steps:
1. Apply fresh solder to each joint to help with heat transfer.
2. Use a desoldering pump or solder wick to remove the old solder.
3. Gently wiggle the switch while applying heat to free it from the board.
4. Clean the pads thoroughly before soldering a new switch in place.
For surface mount 6 pin micro switches:
1. Apply solder paste to the pads using a stencil or syringe.
2. Carefully place the switch onto the pads.
3. Use a hot air rework station or reflow oven to melt the solder paste.
4. Allow the assembly to cool slowly to avoid thermal stress.
1. Keep your soldering iron tip clean and well-tinned throughout the process.
2. Use the appropriate amount of solder – not too much, not too little.
3. Work quickly but carefully to avoid overheating the switch or surrounding components.
4. Practice on spare components or scrap boards before working on your actual project.
5. Invest in quality tools and materials for better results and longevity.
Soldering involves high temperatures and potentially harmful fumes. Always follow these safety guidelines:
- Wear safety glasses to protect your eyes from solder splatter.
- Work in a well-ventilated area or use a fume extractor.
- Never touch the hot end of the soldering iron.
- Wash your hands after handling solder and flux.
- Keep your work area clean and organized to prevent accidents.
If you notice dull, grainy solder joints, you may have a cold joint. This occurs when the solder doesn't fully melt or adhere properly. To fix:
1. Reapply heat to the joint.
2. Add a small amount of fresh solder if needed.
3. Allow the joint to cool undisturbed.
Solder bridges occur when excess solder connects adjacent pins. To remove:
1. Apply flux to the bridged area.
2. Use solder wick to remove the excess solder.
3. Clean the area and inspect for proper separation between pins.
If a pad lifts from the board during desoldering:
1. Clean the area thoroughly.
2. Use epoxy to reattach the pad if possible.
3. Create a jumper wire to bypass the damaged pad if necessary.
Soldering a 6 pin micro switch requires patience, precision, and practice. By following this comprehensive guide and adhering to proper techniques, you'll be well-equipped to tackle this task with confidence. Remember to prioritize safety, maintain a clean work environment, and take your time to ensure high-quality results. With experience, you'll find that soldering these switches becomes second nature, opening up a world of possibilities for electronic projects and repairs.
The ideal temperature for soldering micro switches is typically between 315°C to 370°C (600°F to 700°F). This range provides sufficient heat for effective soldering without risking damage to the switch or surrounding components. Always refer to the manufacturer's recommendations for specific temperature guidelines.
To prevent damage to the micro switch during soldering:
- Use the appropriate soldering iron temperature
- Work quickly to avoid overheating
- Apply heat to both the pin and pad simultaneously
- Use flux to improve solder flow and reduce heat exposure time
- Avoid applying excessive pressure to the switch or pins
For micro switches, it's best to use a thin diameter (0.5mm to 0.8mm) rosin-core solder with a 60/40 or 63/37 tin-lead ratio. Lead-free alternatives are also available for compliance with environmental regulations. Choose a high-quality solder specifically designed for electronics to ensure reliable connections.
A good solder joint on a micro switch pin should have the following characteristics:
- Smooth, shiny surface
- Concave fillet shape (like a small mountain)
- Complete wetting of both the pin and the pad
- No excess solder or voids
- No signs of overheating (burnt flux residue or discoloration)
While flux core solder can be used without additional flux in many cases, applying extra flux can improve solder flow and joint quality, especially for delicate components like micro switches. Using a small amount of no-clean flux can make the soldering process easier and result in more reliable connections.
