Golf carts are essential vehicles for navigating golf courses and other recreational areas. One critical component of many golf carts is the micro switch, which plays a vital role in the vehicle's electrical system. Understanding how to test a golf cart micro switch can help you diagnose issues and maintain your cart effectively. This article will provide a comprehensive guide on testing micro switches in golf carts, including tools needed, step-by-step instructions, and troubleshooting tips.

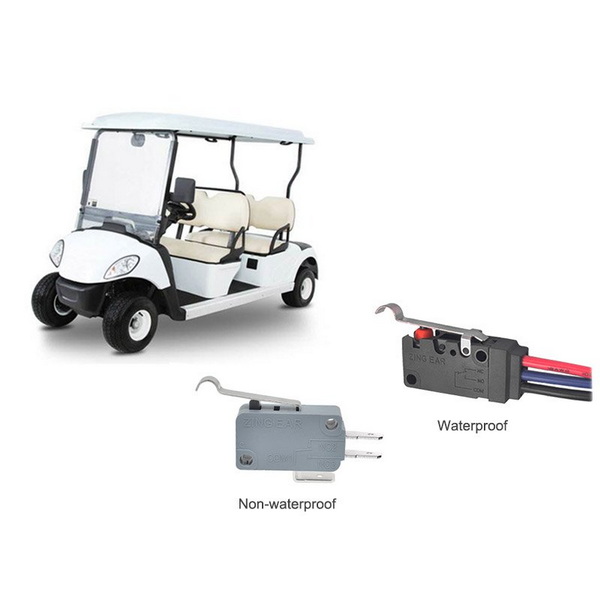

A micro switch is a small, electromechanical switch that is activated by a physical force, such as pressing or releasing a lever. In golf carts, micro switches are commonly used in various applications, including:
- Accelerator Pedal: Signals the controller to engage the motor when the pedal is pressed.
- Brake Lights: Activates the brake lights when the brake pedal is pressed.
- Reverse Alarm: Engages an alarm when the cart is put into reverse.
- Seat Switch: Detects when a driver is seated, enabling the cart to move.
- Charger Interlock: Prevents the cart from moving while it's being charged.
Micro switches are essential for ensuring that these systems function correctly, and any malfunction can lead to operational issues or safety concerns.
Regular testing of micro switches is crucial for several reasons:
1. Safety: Properly functioning micro switches ensure that critical safety features like brake lights and reverse alarms work correctly.
2. Performance: A faulty micro switch can lead to poor acceleration, unresponsive controls, or unexpected behavior.
3. Preventive Maintenance: Identifying issues early can prevent more extensive and costly repairs down the line.
4. Longevity: Regular checks and maintenance can extend the life of your golf cart and its components.
Before you begin testing your golf cart's micro switch, gather the following tools:
- Digital or Analog Multimeter: To measure voltage and continuity.
- Screwdriver Set: For removing any panels or components covering the micro switch.
- Wrench Set: To disconnect any wiring if necessary.
- Safety Gear: Gloves and safety glasses to protect yourself during testing.
- Flashlight: For better visibility in tight spaces.
- Wire Brush: To clean corroded contacts if necessary.
- Electrical Tape: For insulating exposed wires during testing.
Before diving into the testing process, it's important to prepare properly:
1. Read the Manual: Familiarize yourself with your golf cart's specific model and electrical system layout.
2. Clear Workspace: Ensure you have a clean, well-lit area to work in.
3. Document Initial State: Take photos or notes of the wiring and component positions before disassembly.
Before starting any work on your golf cart, ensure that it is powered off. Disconnect the battery to prevent any accidental electrical shocks or shorts. This typically involves removing the negative terminal first, followed by the positive terminal.
Identify the location of the micro switch in your golf cart. Common locations include:
- Under the accelerator pedal
- Near the brake pedal
- In the wiring harness connected to the controller
- Beneath the seat (for seat switches)
- Near the charging port (for charger interlock switches)
Refer to your golf cart's manual for specific locations if you are unsure. Some switches may be hidden behind panels or under the cart's body.
Using your screwdriver and wrench set, carefully remove any panels or components obstructing access to the micro switch. Once you have access, disconnect the wiring connected to the switch. Make sure to label wires if necessary for easy reconnection later.
When removing the switch, pay attention to its orientation and mounting. Some switches are direction-sensitive and must be reinstalled in the same position to function correctly.
Before testing with a multimeter, perform a visual inspection of the micro switch:
- Look for signs of physical damage, such as cracks or bent actuators.
- Check for corrosion on the terminals or contacts.
- Ensure the spring mechanism (if visible) is intact and not damaged.
If you notice any visible issues, it may be more efficient to replace the switch outright rather than continuing with electrical testing.
Set your multimeter to measure continuity or resistance (Ohms). If your multimeter has a beeping function for continuity testing, activate it for easier testing. Familiarize yourself with the multimeter's settings and how to read its display.
1. Connect one probe of the multimeter to one terminal of the micro switch and the other probe to the second terminal.
2. Press the actuator (the button or lever) on the micro switch while observing the multimeter reading.
3. A functioning micro switch will show continuity (a beep or a low resistance reading) when activated and will not show continuity when released.
Repeat this test several times to ensure consistent results. Some micro switches have three terminals: common (COM), normally open (NO), and normally closed (NC). In this case, test between COM and NO, and COM and NC separately.
If you want to check whether the micro switch is functioning correctly under load:
1. Reconnect the wiring temporarily without fully reassembling everything.
2. Reconnect the battery and power on your golf cart.
3. Use your multimeter to measure voltage at the output side of the micro switch while activating it.
4. You should see voltage present when activated and no voltage when released.
Be extremely cautious when working with live electrical systems. Ensure your hands and the surrounding area are dry to prevent electrical hazards.
Understanding your test results is crucial for diagnosing issues:
- Continuity Test:
- Positive Result: The switch shows continuity when activated and no continuity when released.
- Negative Result: No change in continuity regardless of switch position, or inconsistent readings.
- Voltage Test:
- Positive Result: Voltage is present when the switch is activated and absent when released.
- Negative Result: No voltage change, or inconsistent voltage readings.
If you find that your micro switch is not functioning correctly, consider these troubleshooting tips:
- No Continuity: If there is no continuity when pressing the actuator, replace the micro switch as it may be faulty.
- Intermittent Connection: If continuity is inconsistent, check for loose connections or damaged wires leading to or from the switch.
- Voltage Issues: If there is no voltage output when activated but continuity exists, check upstream components like fuses or controllers that may be affecting performance.
- Mechanical Problems: If the switch doesn't "click" or feels mushy when pressed, it may have mechanical damage and need replacement.
- Corrosion: Clean corroded contacts with a wire brush and electrical contact cleaner. If corrosion is severe, replace the switch.
If your tests indicate that the micro switch is faulty, follow these steps to replace it:
1. Purchase a replacement switch that matches the specifications of the original.
2. Disconnect the battery and remove the old switch completely.
3. Install the new switch in the same orientation as the old one.
4. Reconnect the wires to the new switch, ensuring secure connections.
5. Test the new switch using the methods described earlier.
6. If everything checks out, reassemble any removed panels or components.
To keep your golf cart's micro switches in good condition:
1. Regular Cleaning: Periodically clean around switches to prevent dirt and debris buildup.
2. Lubrication: Apply a small amount of electrical contact lubricant to moving parts of the switch.
3. Inspection: Visually inspect switches during routine maintenance for signs of wear or damage.
4. Environmental Protection: If possible, store your golf cart in a dry, covered area to reduce exposure to moisture and extreme temperatures.
While many golf cart owners can perform basic testing and replacement of micro switches, there are situations where professional help is advisable:
- If you're uncomfortable working with electrical systems
- When dealing with complex wiring harnesses or controllers
- If problems persist after replacing the switch
- For golf carts still under warranty to avoid voiding the coverage
Testing a golf cart micro switch is an essential maintenance task that can help ensure your vehicle operates smoothly and safely. By following these steps and using proper tools, you can easily diagnose and fix issues related to micro switches in your golf cart. Regular checks can prevent more significant problems down the line and enhance your overall golfing experience. Remember that while DIY maintenance can save time and money, safety should always be your top priority. When in doubt, consult with a professional golf cart technician to ensure your vehicle remains in top condition.
Common symptoms of a faulty micro switch include lack of response from pedals, malfunctioning brake lights, and failure of reverse alarms. You may also notice inconsistent acceleration or the cart failing to start.
It's advisable to test your golf cart's micro switches at least once a year or whenever you notice performance issues. More frequent checks may be necessary for carts used in harsh environments or those with high usage.
Yes, replacing a faulty micro switch can be done at home with basic tools if you follow safety precautions and instructions carefully. However, if you're unsure or dealing with complex electrical systems, it's best to consult a professional.
A digital multimeter is recommended due to its ease of use and clear readings; however, an analog multimeter can also work effectively. Ensure the multimeter you choose has both continuity and voltage testing capabilities.
Replacement micro switches can typically be found at local automotive stores, specialized golf cart parts suppliers, or online marketplaces. Always ensure you purchase a switch that matches the specifications of your original part.
