Micro switches are essential components in various electrical devices, providing reliable control and safety features. Testing these switches is crucial for maintaining the functionality of devices like appliances, machinery, and automotive systems. This article will guide you through the process of testing a micro switch using a multimeter, ensuring you can diagnose and resolve issues effectively.
Micro switches, also known as snap-action switches, are designed to operate with minimal physical movement. They typically have two or three terminals and can be classified as normally open (NO) or normally closed (NC).
- Normally Open (NO): The circuit is open when the switch is not pressed.
- Normally Closed (NC): The circuit is closed when the switch is not pressed.
Micro switches are commonly used in applications such as:
- Home Appliances: Such as washing machines and microwaves.
- Automotive Systems: For functions like seatbelt reminders and door sensors.
- Industrial Equipment: In machinery for safety interlocks and limit switches.
To test a micro switch effectively, you will need:
- A digital multimeter
- Screwdriver (if you need to access the switch)
- Safety gloves (optional for safety)
- A clean work surface
- A flashlight (to inspect hard-to-see areas)
Before starting any testing, ensure that the device powered by the micro switch is turned off and unplugged. This prevents any accidental electric shocks or damage. If applicable, discharge any capacitors in the device to avoid electrical hazards.
Use a screwdriver to remove any covers or panels that obstruct access to the micro switch. Identify the switch that needs testing. If you're working on an appliance, consult the user manual for guidance on accessing internal components safely.

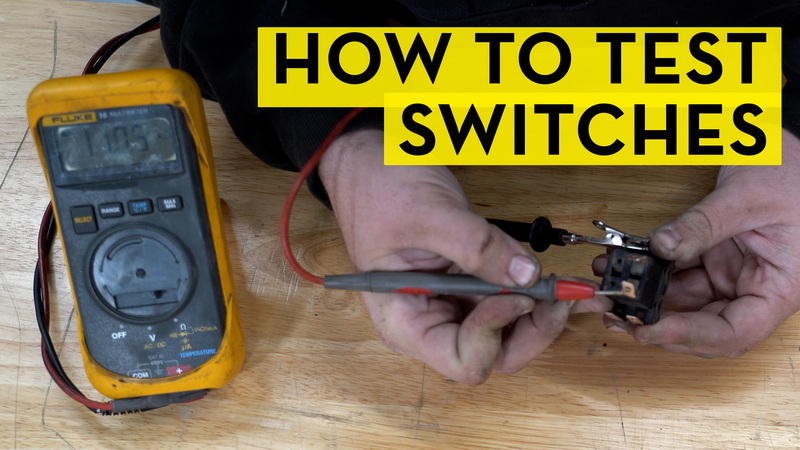

1. Turn on your multimeter.
2. Set it to continuity mode (often indicated by a sound wave symbol). This mode allows you to check if electricity can flow through the switch.
Ensure your multimeter's probes are in the correct ports—typically, the black probe goes into COM and the red probe into VΩmA.
1. Disconnect the wires connected to the micro switch terminals.

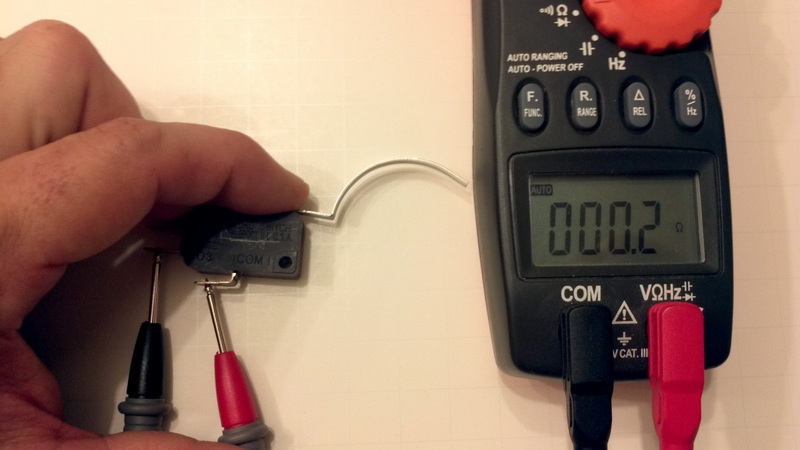

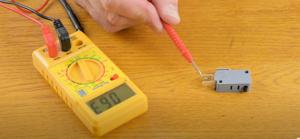

2. Place one probe of the multimeter on one terminal and the other probe on the second terminal.

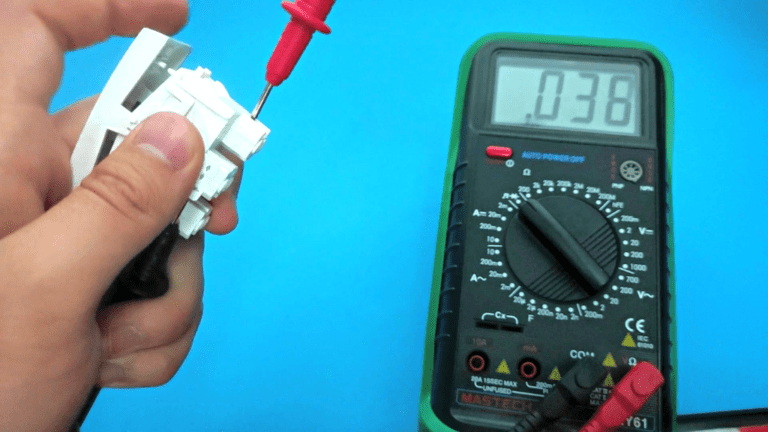

3. Press the actuator button on the micro switch.
- If your multimeter beeps or shows a reading of zero ohms, the switch is functioning correctly (continuity present).
- If there's no beep or it shows infinite resistance, the switch is faulty.
If your micro switch has an NC configuration:
1. Connect your probes as before.
2. Without pressing the actuator, check for continuity.
- You should hear a beep or see a low resistance reading.
- Pressing the actuator should break continuity (no beep).
This step is crucial because it verifies that both configurations of the switch are functioning as intended.
While testing electrically is essential, also perform a physical inspection:
- Look for signs of wear, such as cracks or burns on the body of the switch.
- Check if the actuator moves freely without sticking.
- Inspect solder joints and connections for corrosion or damage.
Micro switches can fail due to several reasons:
- Mechanical Wear: Over time, internal components can wear out due to repeated use, leading to failure in making contact.
- Electrical Overload: Excessive current can damage internal circuits, causing them to fail prematurely. Ensure that your application does not exceed the rated specifications of the micro switch.
- Environmental Factors: Dust, moisture, and temperature extremes can affect performance. For instance, moisture can lead to corrosion of contacts inside the switch.
Understanding these factors can help in taking preventive measures to extend the lifespan of micro switches.
To ensure that micro switches remain functional over time, consider implementing these maintenance tips:
- Regular Testing: Schedule periodic tests using a multimeter to catch issues early before they lead to device failure.
- Keep Clean: Regularly clean around micro switches to prevent dust accumulation that could interfere with their operation.
- Proper Installation: Ensure that micro switches are installed correctly according to manufacturer specifications to avoid mechanical stress that could lead to premature failure.
Knowing when to replace a micro switch is critical for maintaining device functionality. Signs that replacement may be necessary include:
- Inconsistent operation where devices fail to activate reliably.
- Physical damage such as cracks or burn marks on the switch housing.
- A complete lack of continuity during testing despite pressing the actuator multiple times.
If any of these issues arise, consider replacing your micro switch with a new one that meets or exceeds original specifications.
Testing a micro switch with a multimeter is a straightforward process that can save time and prevent costly repairs. By following these steps, you can ensure that your devices operate safely and efficiently. Regular testing and maintenance of micro switches contribute to their longevity and reliability in various applications. Understanding how these components work and how to maintain them will empower you as a user or technician in troubleshooting electrical devices effectively.
A bad micro switch may exhibit symptoms such as intermittent operation, failure to activate devices, or physical signs of damage like burns or cracks.
While it's best to remove it for accurate testing, some multimeters allow for testing continuity while it's still connected in simple circuits; however, this may not provide definitive results due to other components in series with it.
Infinite resistance indicates that there is no continuity through the micro switch, suggesting it may be faulty or disconnected from power sources properly.
Yes, they come in various types based on their design and function, including normally open (NO) and normally closed (NC) configurations; some may also feature momentary action versus maintained action designs.
It's advisable to test them periodically during routine maintenance checks or whenever you notice irregularities in device performance; specific intervals may depend on usage frequency and environmental conditions.
