Micro switches are essential components found in various devices, from household appliances to industrial machinery. They are known for their reliability and durability but can fail over time. Testing a micro switch with a multimeter is a straightforward process that can help determine whether the switch is functioning correctly. This article will guide you through the steps of testing a micro switch using a multimeter, including necessary precautions, procedures, and troubleshooting tips.
Micro switches are electromechanical devices that operate based on mechanical movement. They typically have two or more terminals and can be classified as normally open (NO) or normally closed (NC).
- Normally Open (NO): The circuit is open when the switch is not activated and closes when the actuator is pressed.
- Normally Closed (NC): The circuit is closed when the switch is not activated and opens when the actuator is pressed.
Understanding these basic functions is crucial before proceeding with testing.

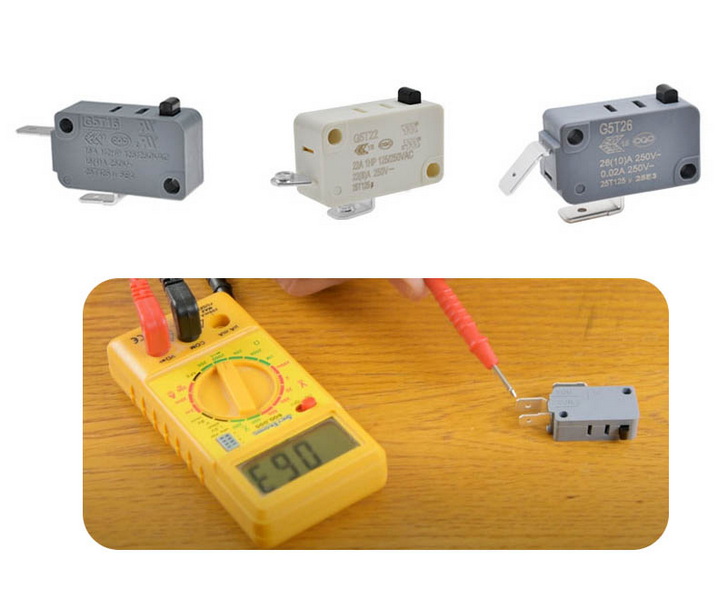

Micro switches come in various types and designs, each suited for different applications. Here are some common types:
- Tactile Micro Switches: These switches provide tactile feedback when pressed, making them ideal for applications like keyboards and control panels.
- Sealed Micro Switches: Designed to withstand harsh environments, these switches are often used in outdoor equipment or machinery exposed to dust and moisture.
- Subminiature Micro Switches: These compact switches are used in applications where space is limited, such as in small electronic devices.
- Heavy-Duty Micro Switches: Built to handle high current loads, these switches are commonly found in industrial settings.
Understanding the type of micro switch you are dealing with can help you choose the right testing method and replacement if necessary.
To test a micro switch, you will need:
- A digital multimeter (DMM)
- Safety gloves
- Safety goggles
- Wire cutters/strippers (if necessary)
Before testing, ensure that the device containing the micro switch is powered off to avoid electrical shock. Disconnect any wires connected to the micro switch terminals.
1. Visual Inspection: Check for any visible damage, such as burnt terminals or broken components. If you see any signs of wear or damage, consider replacing the micro switch before testing.
2. Set Up Your Multimeter: Turn on your multimeter and set it to the continuity test mode or resistance mode (Ω). If your multimeter has an audible continuity feature, this will help confirm connections easily.

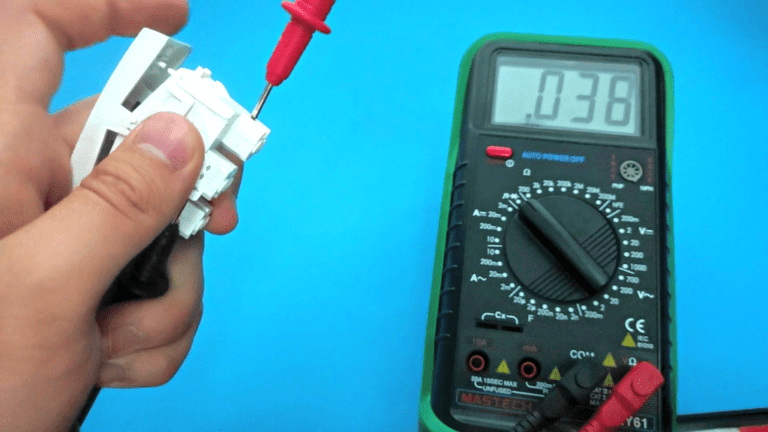

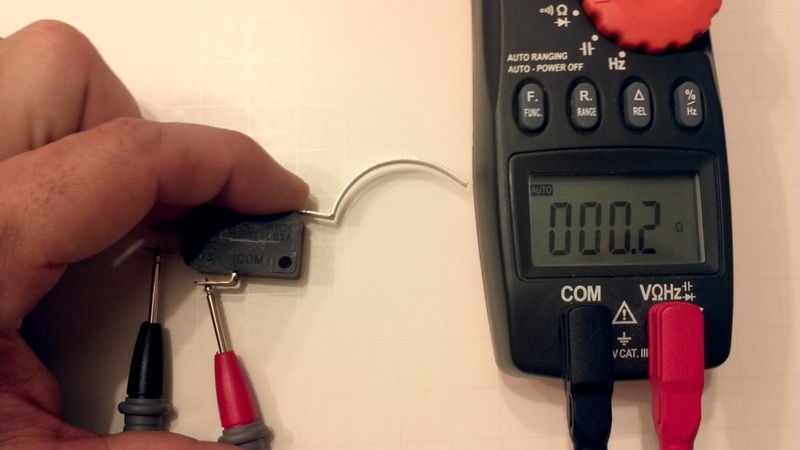

1. Connect Probes: Place one probe on each terminal of the micro switch.
2. Activate the Switch: Press the actuator of the micro switch while observing the multimeter reading.
3. Interpret Results:
- If the multimeter beeps or shows a low resistance reading (close to 0 ohms), the switch is functioning correctly.
- If there is no beep or a high resistance reading (infinity), the micro switch may be faulty.
1. Connect Probes: Similar to the NO switch, place one probe on each terminal of the NC micro switch.
2. Activate the Switch: Press the actuator.
3. Interpret Results:
- A beep or low resistance indicates that the switch is working properly.
- A lack of sound or high resistance suggests that it may be defective.
In addition to basic continuity testing, there are more advanced techniques you can use to assess a micro switch's performance:
- Voltage Testing: If you suspect that a micro switch may be intermittently failing under load, you can perform voltage tests while the device is powered on. This involves checking if voltage reaches the output terminals when the actuator is pressed.
- Load Testing: For heavy-duty applications, applying a load while testing can reveal whether a micro switch can handle its rated capacity without failure.
- Cycle Testing: Manually actuating the switch multiple times while monitoring its performance can help identify issues like bounce or delayed response times that might not show up during single tests.
If your tests indicate that the micro switch is faulty, consider these troubleshooting steps:
- Check Connections: Ensure that all connections are secure and free from corrosion.
- Inspect Actuator: Make sure that the actuator moves freely and isn't stuck.
- Test Wiring: Sometimes, issues may arise from damaged wiring rather than the switch itself. Use your multimeter to check for continuity in wires leading to and from the switch.
- Replace if Necessary: If all tests point to a malfunctioning micro switch, replace it with a new one of equivalent specifications.
When working with electrical components like micro switches, safety should always be your top priority:
- Always disconnect power before beginning any tests.
- Use insulated tools and wear safety gloves to protect against accidental shocks.
- Be cautious of capacitors in circuits that may retain charge even after power is disconnected; discharge them safely before testing.
Testing a micro switch with a multimeter is an essential skill for anyone involved in electronics repair or maintenance. By following these straightforward steps, you can quickly determine whether your micro switch is functioning properly or if it needs replacement. Regular testing can help prevent unexpected failures in devices that rely on these switches. Understanding how to perform both basic and advanced tests ensures you can effectively diagnose issues and maintain device reliability.
Infinite resistance indicates that there is no continuity in the circuit, meaning that either the micro switch is faulty or it's not activated properly during testing.
No, always ensure that power is off before testing to prevent electrical shock and damage to your multimeter.
It's advisable to test them during regular maintenance checks, especially if you notice irregularities in device operation.
If there's no beep when testing continuity, check your probe connections and ensure they are making good contact with the terminals. If they are secure and there's still no beep, consider replacing the micro switch.
Most digital multimeters can perform this task; however, ensure it has continuity and resistance measurement functions for effective testing.
