Micro switches are small but crucial components found in various electrical devices, from household appliances to industrial machines. They act as reliable on/off switches that respond to mechanical movement, making them essential for safety and functionality. Understanding how to test a micro switch can help you diagnose issues and maintain the efficiency of your devices. This article provides a comprehensive guide on testing micro switches, including step-by-step instructions, tools needed, and troubleshooting tips.
A micro switch, also known as a snap-action switch, is an electromechanical device that opens or closes a circuit when a small amount of force is applied to its actuator. They are commonly used in applications such as:
- Door safety switches
- Limit switches in machinery
- Control panels in appliances
Micro switches come in various configurations, including normally open (NO) and normally closed (NC) types. Understanding these configurations is essential for effective testing.
Before you begin testing, gather the following tools:

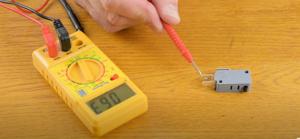

- Multimeter: A digital or analog multimeter is essential for measuring continuity and resistance.
- Screwdriver: To remove the micro switch from its housing.
- Camera or Smartphone: Useful for taking pictures during disassembly to aid reassembly.
- Cleaning Supplies: Isopropyl alcohol and cotton swabs for cleaning contacts if necessary.
Before starting any work, ensure that the power supply to the device containing the micro switch is turned off. This prevents electrical shock and damage to your multimeter.
Using a screwdriver, carefully remove the micro switch from its housing. Be cautious not to damage any surrounding components.
Perform a visual inspection of the switch for any obvious signs of damage:
- Cracks or burns on the casing
- Corrosion on terminals
- Sticking actuator
If any physical damage is observed, it may be best to replace the switch rather than test it.

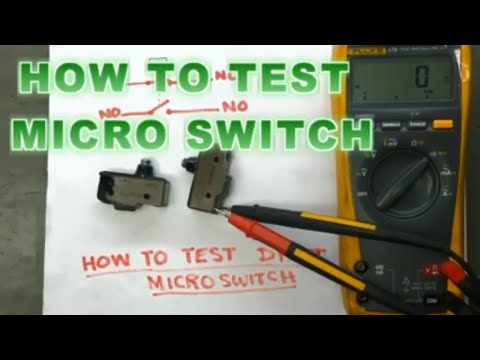

Set your multimeter to the continuity test mode. This mode will allow you to check if there is an electrical connection when the switch is activated.

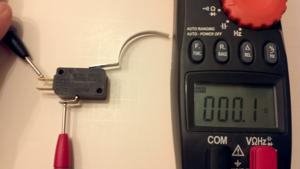

1. Connect Probes: Attach one probe to each terminal of the micro switch.
2. Activate the Switch: Press or toggle the actuator while observing the multimeter display.
3. Read Results:
- If the multimeter beeps or shows continuity (usually indicated by a low resistance reading), the switch is functioning correctly in that position.
- If there is no change in reading when activated, the micro switch may be faulty.
For more detailed testing:
1. Set Multimeter to Ohms: Change your multimeter setting to measure resistance.
2. Measure Resistance: Connect probes again and check resistance in both NO and NC positions.
- For NO switches, there should be infinite resistance when unpressed and low resistance when pressed.
- For NC switches, it should show low resistance when unpressed and infinite resistance when pressed.
If your tests indicate that the micro switch is not functioning correctly, consider these troubleshooting steps:
- Cleaning Contacts: Dirt or corrosion can affect performance. Clean contacts with isopropyl alcohol and a cotton swab.
Cleaning Micro Switch
- Check Wiring: Ensure that all connections are secure and free from damage. Loose wires can cause intermittent operation.
- Replace If Necessary: If cleaning does not resolve issues or if physical damage is present, replacing the micro switch is advisable.
Testing a micro switch is a straightforward process that can save time and money by allowing you to diagnose issues before seeking professional help. By following this guide, you can effectively determine whether your micro switch is functioning correctly or if it needs replacement.
Understanding how to test these components not only enhances your technical skills but also contributes to maintaining the safety and efficiency of your devices.
Common signs include intermittent operation, failure to activate, or unusual noises when pressed.
In some cases, cleaning contacts may restore functionality; however, significant physical damage usually requires replacement.
Ensure it's set to continuity mode for basic testing or ohms mode for resistance checks.
No, always turn off power before testing to avoid electrical shock or damage.
Replacement switches can be found at hardware stores or online retailers specializing in electrical components.
