In this comprehensive guide, we will explore how to test the micro switch in your EZGO golf cart. Micro switches play a crucial role in the operation of these vehicles, ensuring that electrical signals are properly transmitted when the accelerator pedal is pressed. Understanding how to test these components can help you diagnose issues effectively and maintain your golf cart in optimal condition.

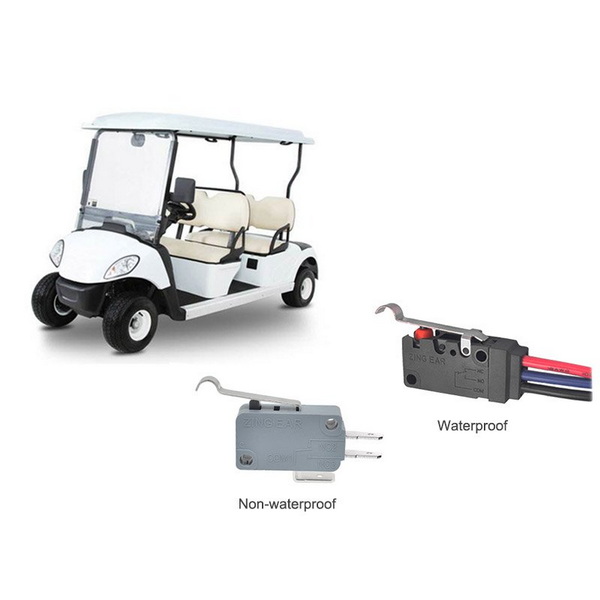

A micro switch, also known as a limit switch, is a small electromechanical device that opens or closes a circuit when a specific physical force is applied. In EZGO golf carts, micro switches are typically used to control the throttle and ensure safe operation by preventing the vehicle from moving unless the accelerator pedal is pressed.
Testing micro switches is essential for several reasons:
- Safety: A malfunctioning micro switch can lead to unintended movement of the golf cart, posing safety risks.
- Performance: Properly functioning micro switches ensure that the cart responds accurately to driver input.
- Cost-Effectiveness: Diagnosing issues early can prevent costly repairs or replacements down the line.
Before you begin testing your EZGO micro switch, gather the following tools:
- Multimeter (digital or analog)
- Screwdriver set
- Wire cutters/strippers
- Safety goggles
- Gloves
Before starting any testing procedure, ensure that your golf cart is turned off and the key is removed from the ignition. This will prevent any accidental engagement of the motor while you are working.

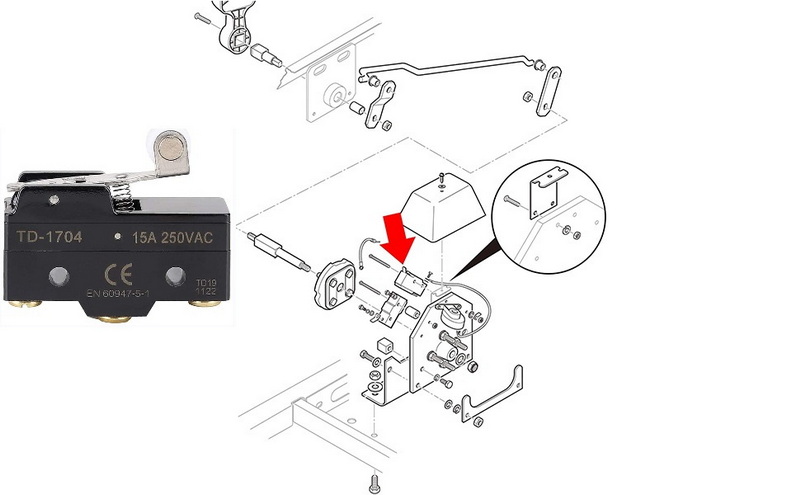

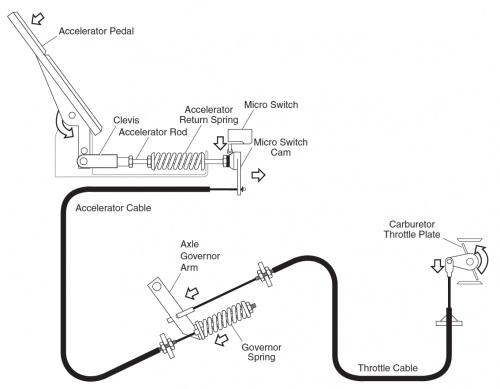

The micro switch in an EZGO golf cart is typically located near the accelerator pedal. You may need to remove some panels or covers to access it.
Check for any visible signs of damage such as frayed wires or loose connections. If you notice any damage, repair or replace the wiring as necessary.
Set your multimeter to measure resistance (ohms). This setting will allow you to test whether the micro switch is functioning correctly.
Carefully disconnect the wires from the terminals of the micro switch. Make sure to note their positions so you can reconnect them later.
1. Touch one probe of the multimeter to one terminal of the micro switch and the other probe to the other terminal.
2. Press down on the actuator (the button or lever) of the micro switch while observing the multimeter reading.
- Reading: If your multimeter shows a low resistance value (close to zero), this indicates that the switch is functioning properly.
- No Change: If there is no change in resistance (infinity), this indicates that the micro switch is faulty and needs replacement.
To further confirm functionality, you can check for voltage at the terminals:
1. Reconnect the wires back to their respective terminals.
2. Turn on your golf cart and set it in gear.
3. Use your multimeter set to measure voltage.
4. Place one probe on each terminal while pressing down on the accelerator pedal.
- Expected Reading: You should see a voltage reading when pressing down on the pedal. If there's no voltage, it could indicate a problem either with the wiring or with another component in the circuit.
Micro switches can experience several common issues that affect their performance:
- Worn Contacts: Over time, contacts within micro switches can wear out, leading to intermittent connectivity. This wear can cause erratic behavior in your golf cart's throttle response.
- Corrosion: Moisture can cause corrosion at terminals, affecting electrical connections. Regular inspections can help catch corrosion early before it leads to more significant problems.
- Mechanical Failure: The actuator may become stuck or fail mechanically, preventing it from engaging properly. This often requires replacement rather than repair.
Recognizing when a micro switch has failed can save time and prevent further damage:
- Inconsistent Throttle Response: If your golf cart hesitates or does not respond correctly when you press down on the accelerator, this may indicate a problem with one or more micro switches.
- Cart Moves Without Input: If your cart moves forward without pressing on the accelerator pedal, this could signify that a micro switch is stuck in an "on" position.
- Warning Lights: Many modern EZGO models come equipped with diagnostic lights that may indicate issues related to electrical components, including micro switches.
If you determine that your micro switch is faulty, replacing it is relatively straightforward:

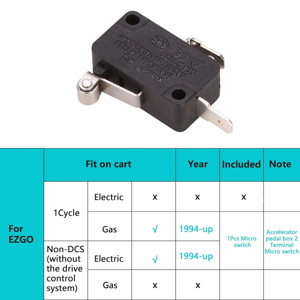

1. Purchase a replacement micro switch compatible with your EZGO model.
2. Disconnect power and remove any panels necessary to access the old switch.
3. Remove the faulty switch and install the new one by reversing your disassembly steps.
4. Reconnect all wiring securely and test functionality before reassembling any panels.
To ensure longevity and reliability of your EZGO's micro switches:
- Regular Inspections: Conduct visual inspections every few months for signs of wear or damage.
- Keep Connections Clean: Use electrical contact cleaner on terminals to prevent corrosion and ensure good conductivity.
- Avoid Water Exposure: If possible, keep your golf cart covered during rain or when not in use to prevent moisture buildup around electrical components.
- Follow Manufacturer Guidelines: Always refer to your owner's manual for specific maintenance schedules and recommendations tailored to your model.
While testing and replacing micro switches is essential, other electrical components may also cause similar symptoms:
- Battery Health: Ensure that batteries are fully charged and connections are secure; weak batteries can affect performance across all electrical systems.
- Controller Issues: The controller regulates power flow; if it fails, it may not send signals correctly even if switches are functional.
- Wiring Problems: Inspect all wiring for frays or shorts; damaged wiring can lead to erratic behavior across multiple systems.
Testing and maintaining your EZGO golf cart's micro switch is essential for safe and efficient operation. By following these steps, you can easily diagnose issues and ensure that your vehicle remains in top condition. Regular checks will not only enhance performance but also extend the life of your golf cart components. With proper care and timely intervention, you can enjoy many trouble-free rounds on the course with confidence in your vehicle's reliability.
Common symptoms include failure of the cart to start, erratic behavior when pressing pedals, or continuous running of motors without pedal input.
In some cases, cleaning contacts inside a worn-out switch may help; however, replacement is often more reliable.
It's advisable to test them at least once a year or whenever you notice performance issues with your golf cart.
A digital multimeter is recommended for ease of use and accuracy when measuring resistance and voltage.
Yes, but always ensure that power is disconnected before starting any work to prevent electric shock or accidental engagement of components.
