Wiring a 12V micro switch can seem daunting at first, but with the right guidance and tools, it becomes a straightforward task. Micro switches are commonly used in various applications, including automotive, appliances, and DIY projects. This article will guide you through the process of wiring a 12V micro switch, covering everything from preparation to testing the connections.
A micro switch is a small but powerful switch that operates with minimal force. It typically has three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC). The switch allows you to control electrical circuits efficiently.
- Common (COM): This terminal is the main connection point for the circuit.
- Normally Open (NO): This terminal connects to the COM when the switch is pressed.
- Normally Closed (NC): This terminal connects to the COM when the switch is not pressed.
Before starting, gather the following tools and materials:
- Wire strippers
- Screwdriver
- Soldering iron (if necessary)
- Multimeter
- Electrical wires (suitable gauge for your application)
- Connectors or terminal blocks
- Insulation tape or heat shrink tubing
Understanding which terminal does what is crucial for proper wiring. Most micro switches have their terminals labeled, but if not, refer to the following:
- COM: Connects to your power source.
- NO: Connects to the device you want to control when the switch is activated.
- NC: Connects to the device when the switch is not activated.
Use wire strippers to remove about half an inch of insulation from both ends of each wire you plan to use. Ensure that you have enough length for comfortable connections without causing strain on the terminals.
Depending on your micro switch's terminal type, you can connect wires using one of these methods:
- Screw Terminals: Wrap the stripped end of the wire around the screw and tighten it securely.
- Quick Connect Terminals: Insert the stripped wire into the connector and ensure it's firmly attached.
- Soldering: If soldering is required, heat your soldering iron and apply solder to connect wires securely to each terminal.

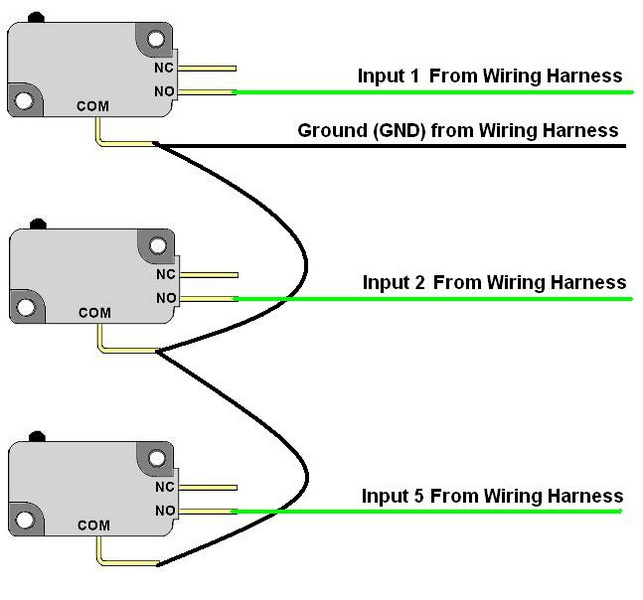

Here's a basic wiring example for connecting a 12V power source through a micro switch:
1. Connect the positive lead from your power source to the COM terminal of the micro switch.
2. Connect the NO terminal to your device (e.g., light or pump).
3. Connect the negative lead from your device back to the negative side of your power source.
Once all connections are made, ensure they are secure. Use insulation tape or heat shrink tubing around exposed wire connections to prevent short circuits.
After wiring, it's essential to test your micro switch setup:
1. Use a multimeter to check continuity between terminals when pressing and releasing the switch.
2. Ensure that when you press down on the switch, it activates your device as intended.
Micro switches are versatile components used in various applications:
- Home Appliances: Used in washing machines, microwaves, and ovens for safety and control.
- Automotive: Employed in car doors, seatbelt systems, and other safety features.
- Industrial Equipment: Utilized in conveyor systems and machinery for precise control.
Wiring a 12V micro switch is an accessible task that can enhance many electronic projects or appliances. By understanding how these switches operate and following proper wiring techniques, you can ensure reliable performance in your applications.
A micro switch is a small electromechanical switch that operates with minimal physical force and provides reliable control in various applications.
You can identify this by checking the labeling on the terminals or using a multimeter to test continuity when pressing the switch.
No, it's important to use wire that meets or exceeds the current rating of your application to avoid overheating or damage.
Incorrect wiring can lead to malfunctioning devices, short circuits, or even damage to components in your circuit.
Use a multimeter set to continuity mode; check that pressing the switch closes or opens the circuit as expected.
