Wiring a 6 pin slide switch can seem daunting at first, especially for those new to electronics. However, with the right guidance and understanding of the switch's function, it becomes a straightforward task. This article will provide a comprehensive guide on how to wire a 6 pin slide switch, including different configurations, necessary tools, and step-by-step instructions.
A 6 pin slide switch typically comes in various configurations, such as Single Pole Double Throw (SPDT) or Double Pole Double Throw (DPDT). Understanding the specific type of switch you have is crucial for proper wiring.
- SPDT (Single Pole Double Throw): This type allows one input to be connected to one of two outputs.
- DPDT (Double Pole Double Throw): This type can control two separate circuits and switch between two outputs for each.
Before starting the wiring process, gather the following tools and materials:
- Wire Strippers: To strip insulation from wires.
- Screwdrivers: For securing the switch in place.
- Multimeter: To test connections and ensure proper wiring.
- Electrical Tape or Heat Shrink Tubing: For insulating connections.
- Wires: Typically 16-18 gauge wire is suitable for most applications.
Most 6 pin slide switches will have their pins labeled. Here's a common configuration for a DPDT switch:
| Pin | Function |
|---|---|
| 1 | Common Terminal (Input) |
| 2 | Output A |
| 3 | Output B |
| 4 | Common Terminal (Ground) |
| 5 | Output C |
| 6 | Output D |
Strip about half an inch of insulation from both ends of each wire you will use. This will allow for easier connections.
For a DPDT switch, follow these steps:
1. Connect the common terminal (Pin 1) to your power source.
2. Connect Pin 2 to the first output device (e.g., a motor or light).
3. Connect Pin 3 to the second output device.
4. Connect Pin 4 to ground.
5. Connect Pins 5 and 6 as needed based on your circuit requirements.
Once all connections are made, use a multimeter to test continuity between the pins to ensure everything is wired correctly.
- Motor Control: Reversing motor direction in robotics.
- Lighting Control: Switching between different lighting circuits.
- Audio Equipment: Selecting between different audio sources.
For an SPDT configuration, you will typically have three positions:
1. On Position A: Connects input to output A.
2. Off Position: Disconnects input from both outputs.
3. On Position B: Connects input to output B.

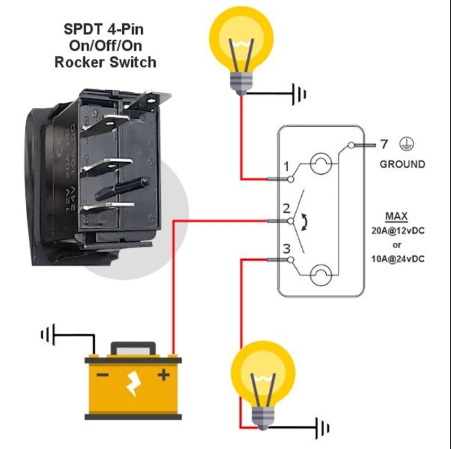

To wire an SPDT switch:
1. Connect the common terminal (usually in the center) to your power source.
2. Connect one outer terminal to Device A and the other outer terminal to Device B.
When working with electrical components, safety should always be your top priority. Here are some essential safety tips:
- Always disconnect power before starting any wiring work.
- Use insulated tools and wear safety goggles.
- Ensure that all connections are secure to prevent short circuits.
Slide switches are versatile components widely used across various industries due to their simplicity and reliability. Here are some additional applications where slide switches play a critical role:
Slide switches are commonly found in devices such as televisions and radios, allowing users to turn these devices on or off with ease. The compact design makes them ideal for handheld devices where space is limited.
In vehicles, slide switches control various accessories like headlights and windshield wipers. Their robust design ensures they can withstand vibrations and environmental factors typical in automotive applications.
Slide switches are also prevalent in industrial machinery where they can be used to toggle settings or modes of operation quickly. They provide reliable performance in demanding environments.
In robotics, slide switches can be used to control motors or other functions without complex programming requirements. This simplifies operations and enhances efficiency in robotic systems.
In medical technology, precise control is crucial; thus, slide switches are often employed in devices that require accurate settings adjustments such as monitoring equipment or surgical instruments.
Wiring a 6 pin slide switch is not as complex as it may initially appear. By understanding the type of switch you are working with and following systematic steps, you can successfully wire your device. Always remember to prioritize safety by ensuring that power is disconnected during installation.
SPDT switches control one circuit with two outputs, while DPDT switches can control two separate circuits simultaneously.
Yes, many slide switches are rated for both AC and DC applications; however, always check the specifications before use.
Use a multimeter to test continuity between pins while toggling the switch; this will help you identify which pins connect in each position.
Typically, using wire gauges between 16-18 is suitable for most applications involving slide switches.
Yes, as long as the total current draw does not exceed the switch's rating, it is safe to control multiple devices with one slide switch.
