Wiring a micro switch to motion sensor lights can enhance your home's security and convenience. This guide will provide a comprehensive overview of how to achieve this, including necessary tools, materials, and step-by-step instructions. Additionally, we will address common questions and concerns at the end of the article.
Motion sensor lights are designed to automatically turn on when they detect movement within a specified range. These lights are commonly used for outdoor security, as they can deter intruders and provide illumination when needed. The key components involved in wiring these lights include:
- Motion Sensor: Detects movement and controls the light.
- Micro Switch: Serves as an additional control mechanism for the light.
- Light Fixture: The actual light source that illuminates the area.
Before diving into the wiring process, it's essential to understand the benefits of using motion sensor lights:
- Enhanced Security: Motion sensors can deter potential intruders by illuminating areas when movement is detected.
- Energy Efficiency: These lights only activate when needed, helping to reduce electricity consumption.
- Convenience: No need to fumble for switches in the dark; motion sensor lights turn on automatically.
- Safety: They provide illumination in dark areas, reducing the risk of accidents.
Before starting your project, gather the following tools and materials:
- Tools:
- Screwdriver
- Wire stripper
- Pliers
- Non-contact voltage tester
- Drill (if installing a new fixture)
- Materials:
- Motion sensor light fixture
- Micro switch
- Electrical wire (appropriate gauge)
- Wire connectors (wire nuts)
- Electrical tape
- Junction box (if needed)
Safety is paramount when working with electrical systems. Before you begin, turn off the power at the circuit breaker to avoid any risk of electric shock.
If you are replacing an existing light fixture or switch, remove it carefully. Unscrew the fixture from the electrical box and pull it away to access the wires.
In most electrical systems, you will encounter three types of wires:
- Hot Wire (Black): Carries electricity from the power source.
- Neutral Wire (White): Completes the electrical circuit by returning current.
- Ground Wire (Bare or Green): Provides a safe path for electricity in case of a fault.
Use a non-contact voltage tester to ensure that no power is flowing through the wires before touching them.

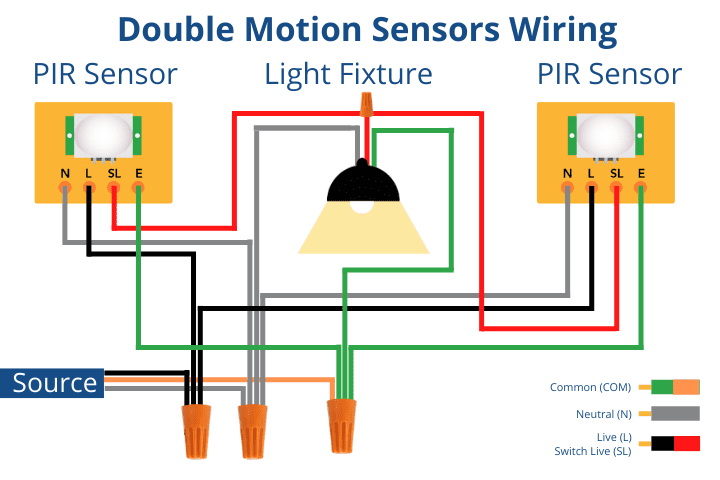

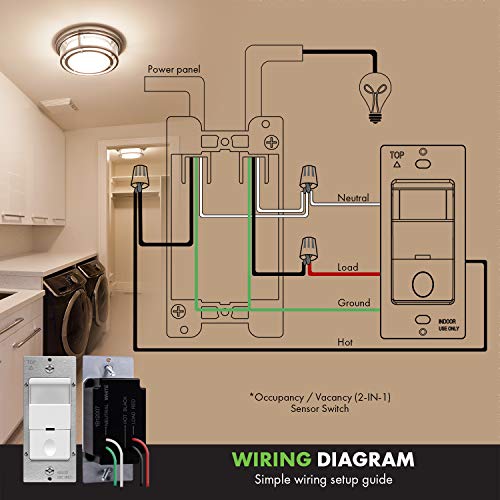

Follow these steps to connect your motion sensor:
1. Connect the Hot Wire: Connect the black wire from your power source to the black wire on the motion sensor.
2. Connect the Neutral Wire: Connect the white wire from your power source to the white wire on the motion sensor.
3. Connect the Ground Wire: Connect the ground wire from your power source to the green or bare wire on the motion sensor.
4. Switched Output: The red wire from the motion sensor should be connected to the light fixture's hot wire.
5. Cap Unused Wires: If there are any unused wires (like a blue wire), cap them with a wire nut for safety.
To integrate a micro switch into your setup:
1. Identify Micro Switch Terminals: A typical micro switch will have three terminals—common (C), normally open (NO), and normally closed (NC).
2. Connect Common Terminal: Connect one terminal of the micro switch (common) to the hot wire leading to your light fixture.
3. Connect Normally Open Terminal: Connect another terminal (NO) to the red output wire from your motion sensor.
4. Ground Connection: Ensure that any ground connections are made securely according to local electrical codes.
Once all connections are made, use electrical tape or wire connectors to secure them properly. Ensure that no bare wires are exposed.
Mount your motion sensor and micro switch in their designated locations using screws or brackets provided with each device. Ensure that they are positioned correctly for optimal performance.
After everything is secured, restore power at the circuit breaker. Test your setup by walking in front of the motion sensor; if wired correctly, it should activate and illuminate your light fixture.
Even with proper installation, you may encounter some issues with your motion sensor lights. Here are common problems and their solutions:
- Light Does Not Turn On:
- Check if power is supplied by testing other devices on that circuit.
- Ensure all connections are tight and secure.
- Light Stays On Constantly:
- Adjust sensitivity settings on your motion sensor; it may be too sensitive.
- Sensor Does Not Detect Movement:
- Check if there are obstructions blocking its field of view.
- Ensure that it is installed at an appropriate height and angle for optimal detection.
- Ensure that your motion sensor is aimed correctly at areas where movement is expected.
- Adjust sensitivity settings on your motion sensor according to your needs.
- Regularly check connections and clean any dirt or debris from sensors for optimal performance.
When working with electrical components, always prioritize safety:
- Wear rubber-soled shoes while working.
- Use insulated tools.
- If unsure about any step, consult with or hire a licensed electrician.
- Follow local building codes and regulations regarding electrical installations.
Wiring a micro switch to motion sensor lights can significantly enhance both security and convenience in your home. By following these detailed steps, you can successfully complete this project while ensuring safety and functionality. Always prioritize safety by turning off power before starting any electrical work, and consult with a professional if you have any doubts about handling electrical components.
Use a micro switch rated for at least 10 amps, which can handle typical household lighting loads without overheating.
Yes, you can integrate a motion sensor with an existing light fixture by following proper wiring instructions as outlined above.
Check all connections for security and ensure that power is restored. Also, verify that sensitivity settings on the motion sensor are adjusted appropriately.
If you have basic knowledge of electrical systems and follow safety precautions, it is generally safe. However, if unsure, consult with a licensed electrician.
Most motion sensors have adjustable knobs or settings on their body; refer to the manufacturer's instructions for specific guidance on adjustments.
