Micro switches are versatile components widely used in various applications, from household appliances to industrial machinery. They are known for their reliability and precision, making them ideal for controlling electrical circuits. This article will guide you through the process of wiring an on/off micro switch, providing detailed instructions, diagrams, and tips to ensure a successful installation.
A micro switch is a small, snap-action switch that operates with minimal force. When the actuator lever is pressed, it quickly completes or breaks an electrical circuit. Micro switches typically have three terminals:
- Common (COM): The terminal that connects to either the normally open (NO) or normally closed (NC) terminal depending on the switch's state.
- Normally Open (NO): This terminal allows current to flow only when the switch is activated.
- Normally Closed (NC): This terminal allows current to flow when the switch is not activated.
Understanding these terminals is crucial for correctly wiring your micro switch.
Before beginning the wiring process, gather the following tools and materials:
- Micro switch
- Wires (appropriate gauge depending on your application)
- Wire strippers
- Soldering iron or crimping tool
- Heat shrink tubing (optional)
- Multimeter (for testing connections)
- Screwdriver set
- Electrical tape
- Safety goggles
First, familiarize yourself with the terminals on your micro switch. Typically, they are labeled as follows:
- COM: Common terminal
- NO: Normally Open terminal
- NC: Normally Closed terminal
Refer to the manufacturer's datasheet for specific wiring diagrams related to your micro switch model.
Using wire strippers, remove about 1/4 inch of insulation from both ends of each wire you plan to connect. Ensure that you have enough length to make secure connections without tension on the wires.

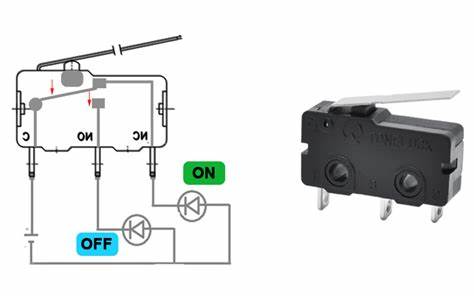

Depending on your application, you will connect wires to different terminals:
1. For Normally Open Configuration:
- Connect one wire from the power source to the COM terminal.
- Connect another wire from the NO terminal to your load (e.g., a light bulb).
- The other side of your load should be connected back to the power source's negative terminal.
2. For Normally Closed Configuration:
- Connect one wire from the power source to the COM terminal.
- Connect another wire from the NC terminal to your load.
- The load's other side should connect back to the power source's negative terminal.
For a robust connection, you can either solder the wires directly onto the terminals or use crimp connectors. If soldering:
- Heat up your soldering iron.
- Apply solder to both the wire and terminal until they bond together.
- Allow it to cool before moving on.
If using crimp connectors, ensure they are securely fastened around both the wire and terminal.
To prevent short circuits, cover any exposed connections with heat shrink tubing or electrical tape. This step is crucial if your micro switch will be exposed to moisture or mechanical stress.
Once everything is connected and insulated, it's essential to test your setup:
1. Turn on your power source.
2. Activate the micro switch by pressing its actuator.
3. Check if your load operates as expected (lights turning on/off).
If it does not work, use a multimeter to check for continuity across terminals and ensure all connections are secure.
Micro switches can be used in various applications, including:
- Home Appliances: Such as microwaves and washing machines. They often serve as safety interlocks that prevent operation when doors are open.
- Industrial Equipment: For safety interlocks and limit switches in conveyor systems and machinery operations. They help ensure that equipment operates safely within designated parameters.
- Automotive Applications: For door sensors and seatbelt reminders. Micro switches can detect whether doors are closed or if seatbelts are fastened.
- Robotics: For position sensing and control mechanisms. They can be used in robotic arms or automated systems where precise control is needed.
Micro switches offer several advantages that make them suitable for various applications:
- Reliability: They have a long operational life due to their snap-action mechanism, which minimizes wear over time.
- Compact Size: Their small footprint allows them to fit into tight spaces where larger switches cannot be accommodated.
- Fast Response Time: The quick actuation ensures that they respond immediately when triggered, making them ideal for safety applications.
- Versatility: They can be used in numerous applications across different industries due to their flexible design options.
When working with micro switches, you may encounter some common issues. Here are troubleshooting tips for resolving them:
1. The Load Doesn't Activate:
- Check if power is reaching the micro switch by using a multimeter.
- Ensure all connections are secure and not loose.
- Verify that you have wired it correctly according to NO or NC configuration.
2. Switch Sticking or Not Returning:
- Inspect for debris or obstructions around the actuator.
- Ensure that there is no excessive force applied that could damage the mechanism.
3. Intermittent Operation:
- Look for frayed wires or poor connections that may cause intermittent contact.
- Test with a multimeter for consistent continuity when activated.
4. Overheating:
- Ensure that you are not exceeding the voltage or current ratings specified by the manufacturer.
- Check for any signs of damage or wear on the switch itself.
When working with electrical components like micro switches, safety should always be your top priority. Here are some essential safety precautions:
- Always Disconnect Power: Before starting any wiring work, ensure that power is disconnected from your circuit to prevent electric shock.
- Use Proper Tools: Utilize insulated tools when working with live circuits and ensure they are in good condition.
- Wear Protective Gear: Safety goggles can protect your eyes from debris while working with tools, especially during soldering tasks.
- Follow Manufacturer Instructions: Always refer to specific guidelines provided by manufacturers for installation and usage recommendations.
For more complex applications involving micro switches, consider these advanced wiring techniques:
1. Using Multiple Micro Switches in Series/Parallel Configurations:
- You can wire multiple micro switches in series if you want all switches to be activated simultaneously for a circuit to complete.
- Conversely, wiring them in parallel allows any one of several switches to activate a single load independently.
2. Integrating with Logic Circuits:
- In more advanced projects, micro switches can be integrated into logic circuits where they can control relays or other electronic components based on their state.
3. Using Diodes for Protection:
- If your application involves inductive loads (like motors), consider adding diodes across your micro switch terminals to protect against voltage spikes when switching off.
4. Implementing Delay Circuits:
- For applications requiring delayed activation or deactivation of loads after pressing a micro switch, consider using timers or delay circuits integrated into your design.
Wiring an on/off micro switch is a straightforward process that can enhance many electronic systems. By understanding its terminals and following proper wiring techniques, you can ensure reliable operation in various applications. Always prioritize safety by using appropriate insulating materials and testing your connections thoroughly.
With their compact size, reliability, and versatility, micro switches play an essential role in modern electrical systems. Whether you're working on home appliances or industrial machinery, mastering how to wire these switches will empower you with greater control over your projects.
Micro switches are commonly used in various devices for safety interlocks, limit switches, and control mechanisms in appliances and machinery.
Yes, but ensure that the micro switch is rated for high voltage applications. Always check specifications before use.
Refer to the manufacturer's datasheet for guidance on which terminals correspond to COM, NO, and NC configurations.
Soldering is not strictly necessary; crimp connectors can also provide reliable connections without soldering.
Check all connections with a multimeter for continuity and ensure that there are no shorts or loose wires.
