Microwave ovens are ubiquitous in modern kitchens, providing a quick and convenient way to heat food. However, many people may not realize that these appliances contain a small but crucial component known as a micro switch. This article explores the various applications of microwave micro switches, innovative projects that utilize them, and their significance in ensuring safety and functionality in microwave ovens.

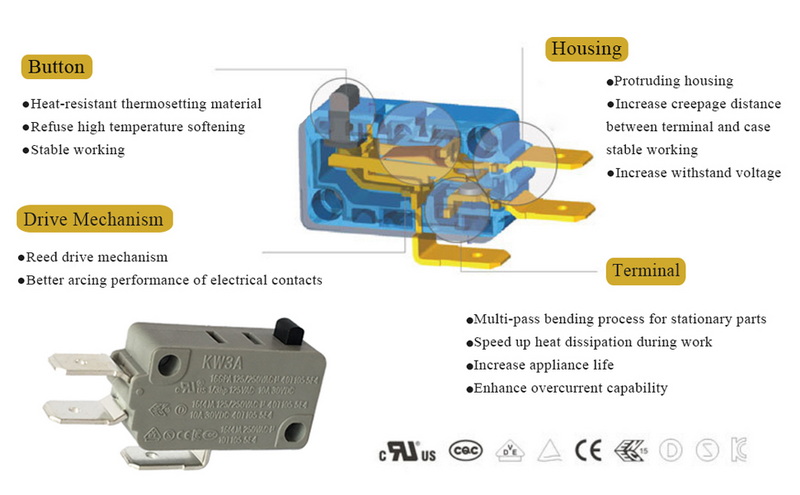

Micro switches, also known as snap-action switches, are electromechanical devices that open or close a circuit when a specific force is applied. They are widely used in various applications due to their reliability and precision.
- Compact Size: Their small footprint makes them suitable for tight spaces.
- Durability: Designed to withstand frequent use, they have a long operational life.
- Versatility: They can be configured as normally open (NO) or normally closed (NC), making them adaptable to different applications.
In microwave ovens, micro switches serve several critical functions:
- Safety Interlock: They prevent the microwave from operating when the door is open, protecting users from exposure to microwave radiation.
- Door Position Detection: Micro switches detect whether the door is securely closed, ensuring the microwave operates only under safe conditions.
- Monitoring Functions: Some microwaves use additional micro switches to monitor the status of other components, enhancing safety features.
Beyond their standard applications in microwave ovens, micro switches can be repurposed for various DIY projects and inventions. Here are some creative ideas:
One fun project involves modifying a microwave to play music when it is in use. By integrating an Arduino with a micro switch, you can create a system that triggers an MP3 player whenever the microwave door is closed. This project not only adds entertainment but also showcases how micro switches can be utilized creatively.
Components Needed:
- Arduino UNO
- MP3 Player Shield
- Small speaker
- 3-Pin SPDT Micro Switch
How It Works:
When the microwave door closes, the micro switch signals the Arduino to start playing a selected track. This project can be customized with different songs and is perfect for adding a festive touch during holidays or gatherings.
Step-by-Step Instructions:
1. Gather all required components listed above.
2. Open up your microwave carefully after unplugging it.
3. Locate the door latch mechanism where you will install the micro switch.
4. Connect one terminal of the micro switch to ground on your Arduino board.
5. Connect the other terminal of the switch to one of Arduino's digital pins (e.g., pin 7).
6. Set up your MP3 player shield according to its manual; connect it to your Arduino.
7. Write an Arduino sketch that plays music when pin 7 detects a HIGH signal (when the switch closes).
8. Upload your code and test it by closing the microwave door!
This project not only enhances your kitchen experience but also demonstrates how technology can bring joy into everyday tasks.
Another interesting application is transforming an old microwave into an electric timer for other appliances. By salvaging parts from a microwave, including its micro switch, you can create a timer that controls when other devices turn on or off.
Steps Involved:
1. Disassemble the microwave and identify key components.
2. Connect the micro switch to control power flow to another appliance.
3. Program the timer settings using the original microwave controls.
This project not only recycles old appliances but also provides practical functionality in your home.
Detailed Steps:
1. Disassemble your old microwave carefully; keep track of all screws.
2. Identify which wires connect to the control panel; these will guide your timer setup.
3. Use jumper wires to connect your chosen timer module's output terminals to where you want power controlled (e.g., another appliance).
4. Program your timer module according to its specifications—set desired ON/OFF times based on your needs.
5. Reassemble everything carefully ensuring no loose wires remain exposed; test functionality before finalizing assembly!
Adding visuals here would greatly enhance understanding—showing wiring diagrams alongside photos taken during assembly would aid clarity immensely!
For those interested in welding, you can create a stick welder using parts from an old microwave oven. The magnetron and transformer can be repurposed to generate sufficient power for welding tasks.
Safety Note: This project involves high voltage and should only be attempted by those with proper knowledge and safety precautions.
How It Works:
The high-voltage transformer found in microwaves can convert standard household voltage into several thousand volts needed for welding applications. However, this project requires careful handling and safety measures due to the risks involved with high voltage equipment.
A creative way to utilize micro switches is in building an automated pet feeder. By integrating a micro switch with a motorized dispenser, you can create a system that dispenses food at predetermined intervals or when your pet approaches.
Components Needed:
- Micro switch
- Motorized food dispenser
- Timer module
- Power supply
How It Works:
The micro switch detects when your pet is near the feeder and activates the motor to dispense food accordingly. This project not only ensures your pet gets fed on time but also adds convenience for pet owners.
Micro switches can also be used in home security systems as door or window sensors. When integrated into doors or windows, they can trigger alarms or notifications if opened unexpectedly.
Steps Involved:
1. Install micro switches on doors or windows.
2. Connect them to an alarm system or smart home device.
3. Program alerts for unauthorized access.
This application enhances home security by providing real-time alerts whenever doors or windows are opened without authorization.
Micro switches have far-reaching applications beyond microwaves and DIY projects:
In industrial settings, micro switches are commonly used for automation processes. They can control machinery operations by acting as limit switches that signal when equipment has reached its operational limits or needs maintenance.
Many household appliances utilize micro switches for various functions:
- Washing Machines: Detect door closure to ensure safe operation during cycles.
- Refrigerators: Monitor door status to manage cooling efficiency.
- Ovens: Ensure doors are securely closed before heating elements activate.
In vehicles, micro switches play essential roles in safety systems such as seatbelt reminders and door ajar indicators. They help ensure that critical safety features operate correctly.
When working with micro switches, especially in high-voltage applications like microwaves, safety should always be a priority:
- Disconnect Power: Always ensure that the appliance is unplugged before disassembling or modifying it.
- Use Proper Insulation: Ensure that all connections are insulated to prevent accidental shocks.
- Follow Guidelines: Adhere strictly to safety regulations and guidelines when working with electrical components.
When working on projects involving micro switches, you may encounter some common issues:
If your micro switch doesn't seem to respond:
- Check all connections for looseness or damage.
- Ensure that there is no debris obstructing the mechanism of the switch.
- Test with a multimeter to confirm functionality.
If devices behave erratically (e.g., turning on/off unexpectedly):
- Verify that all programming logic is correct if using programmable components like Arduinos.
- Double-check wiring configurations against schematics.
- Look for short circuits caused by exposed wires touching each other inadvertently.
Microwave micro switches play an integral role in ensuring the safe operation of microwaves while also offering exciting opportunities for creative projects. From transforming your kitchen appliance into a musical experience to building practical devices like timers or welders, the versatility of these tiny switches is remarkable. As technology continues to evolve, so too will the innovative uses for components like micro switches.
Moreover, understanding how these components work can inspire DIY enthusiasts and inventors alike to explore new applications across various fields—from home automation systems to industrial machinery control—demonstrating that even small components can have significant impacts on our daily lives and technological advancements.
By sharing detailed guides enriched by visuals alongside thoughtful insights into safety considerations—this article aims not just at informing but inspiring readers towards embarking upon their own inventive journeys!
A micro switch is an electromechanical device that opens or closes a circuit when a specific force is applied. They are commonly used in various applications due to their reliability and compact size.
In microwaves, micro switches detect whether the door is open or closed and ensure that the appliance does not operate unless it is safe to do so.
Yes! Micro switches can be repurposed for various DIY projects such as timers, musical devices, or even welding machines if used safely and correctly.
Yes, working with microwave components can involve high voltages and risks of radiation exposure if not handled properly. Always follow safety guidelines and disconnect power before working on any appliance.
Replacement micro switches can be purchased from electronics suppliers or online marketplaces specializing in electronic components.
