Micro switches are essential components in many household appliances, particularly in boilers and water heaters. Understanding their function, operation, and importance can help users maintain their systems effectively. This article delves into the role of micro switches in boilers, their working principles, types, and troubleshooting tips, providing a comprehensive overview for homeowners and professionals alike.

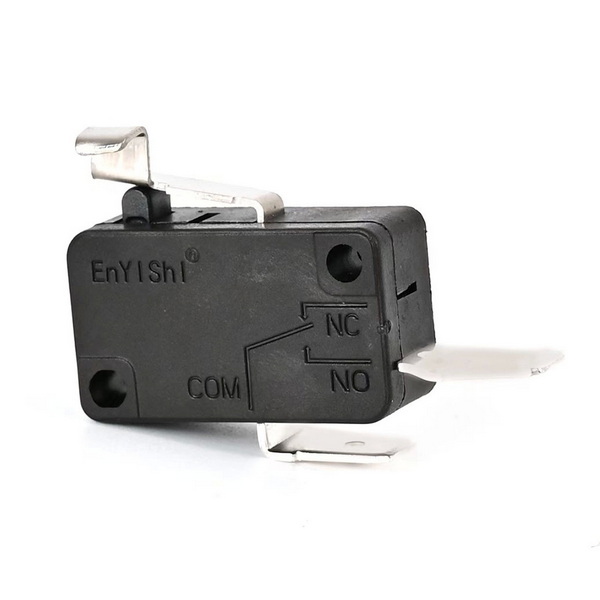

A micro switch, often referred to as a snap-action switch, is a small but powerful electrical switch. It is designed to be activated by a minimal amount of force applied to its actuator. The actuator can be a button, lever, or roller that makes contact with the switch mechanism inside.
- Compact Size: Their small form factor allows them to fit into tight spaces within appliances.
- Quick Action: They operate with minimal movement and force, enabling rapid on/off switching.
- Durability: Designed for long-term use, they can withstand millions of cycles.
In the context of boilers and water heaters, micro switches serve several critical functions:
- Ignition Control: They control the ignition process by detecting when the water pressure reaches a certain level. When activated, the micro switch sends a signal to ignite the gas burner.
- Safety Mechanism: Micro switches act as safety devices that prevent the boiler from operating under unsafe conditions. For example, if the water level is too low or if there is an issue with gas pressure, the micro switch will interrupt the circuit to prevent further operation.
- Temperature Regulation: Some micro switches are used to monitor temperature levels within the boiler. They can turn off the heating element when the desired temperature is reached.
The operation of a micro switch is based on mechanical principles. When an external force is applied to the actuator (like pressing a button or moving a lever), it compresses a spring mechanism inside the switch. This action causes two metal contacts within the switch to either connect or disconnect rapidly.
1. Activation: When the actuator is pressed, it moves a lever that closes or opens an electrical circuit.
2. Signal Transmission: This action sends an electrical signal to other components in the boiler system (like igniters or pumps).
3. Return Action: Once the force is removed, the spring mechanism returns the actuator to its original position, reopening or closing the circuit as needed.
Micro switches come in various types based on their design and application:
- Standard Micro Switches: Commonly used for general applications like ignition control.
- Waterproof Micro Switches: Designed for environments where moisture is present, ensuring reliable operation even under wet conditions.
- High-Temperature Micro Switches: Suitable for high-temperature applications within boilers that require robust performance.
Installing and adjusting micro switches in boilers requires careful attention to detail:
1. Turn Off Power: Always ensure that power is disconnected before working on any electrical components.
2. Accessing the Switch: Depending on your boiler model, you may need to remove covers or panels to access the micro switch.
3. Adjusting Position: The position of the micro switch may need adjustment based on water levels or pressure settings. This can typically be done using screws or levers attached to the switch.
4. Testing Functionality: After installation or adjustment, power should be restored to test if the switch operates correctly under normal conditions.
Micro switches are generally reliable but can encounter issues over time. Here are some common problems and troubleshooting steps:
- Failure to Ignite: If the boiler does not ignite:
- Check if the micro switch is stuck or misaligned.
- Inspect wiring connections for damage or corrosion.
- Intermittent Operation: If the boiler operates sporadically:
- Ensure that there are no obstructions affecting the actuator's movement.
- Test for continuity with a multimeter to confirm proper function.
- Leakage Issues: In cases where water leaks occur around the switch:
- Verify that waterproof seals are intact.
- Replace any damaged components immediately.
Regular maintenance of micro switches in boilers is crucial for ensuring efficient operation and safety:
- Schedule periodic inspections to check for wear and tear.
- Clean any debris or buildup around switches that could impede their function.
- Replace faulty switches promptly to avoid larger system failures.
To further understand how micro switches contribute to boiler functionality, let's explore their detailed functions:
Micro switches play a pivotal role in ensuring safe ignition processes within gas-fired boilers. They monitor conditions such as gas flow and pressure before allowing ignition:
- If gas flow is detected but not at an appropriate pressure level, the micro switch will prevent ignition from occurring.
- This safety feature minimizes risks associated with gas leaks or explosions by ensuring that ignition only occurs under safe conditions.
In many modern boilers, micro switches are integrated into water level monitoring systems:
- These switches ensure that there is always sufficient water in the boiler before heating begins.
- If water levels drop below a certain threshold, the micro switch will trigger an alarm or shut down operations entirely until normal levels are restored.
Temperature regulation is another critical function performed by micro switches:
- They help maintain optimal temperature settings by turning heating elements on and off as needed.
- This not only ensures energy efficiency but also protects against overheating which could lead to system failures or damage.
In addition to basic troubleshooting steps mentioned earlier, here are some advanced techniques you can employ if you're experiencing issues with your boiler's micro switches:
A multimeter can help diagnose electrical issues related to micro switches:
1. Set your multimeter to measure continuity.
2. Disconnect power from your boiler.
3. Remove wires from the micro switch terminals.
4. Test across terminals; you should see continuity when activated (pressed) and none when released.
If you find continuity when it shouldn't be present (or vice versa), it indicates that your micro switch may be faulty and needs replacement.
Conducting a thorough visual inspection can also reveal potential issues:
- Look for signs of wear such as cracks in plastic housings or burnt contacts.
- Check for corrosion on terminals which may affect conductivity.
- Ensure that actuators are free from obstructions that could impede movement.
As technology advances, upgrading your boiler's components can enhance performance:
1. Consider replacing standard micro switches with high-temperature or waterproof variants if you frequently experience issues related to heat exposure or moisture ingress.
2. Newer models may offer improved reliability and longer lifespans due to enhanced materials and designs.
3. Consult with professionals regarding compatible upgrades tailored specifically for your boiler model.
When it comes to replacing micro switches in your boiler system, quality matters significantly:
- Opting for high-quality components ensures better performance over time and reduces maintenance costs associated with frequent replacements.
- Reputable manufacturers often provide warranties which add an extra layer of security for your investment.
Understanding real-world examples can shed light on how critical micro switches are in boiler operations:
A homeowner reported frequent failures in their gas-fired boiler during peak winter months. Upon inspection, it was discovered that a faulty micro switch was preventing proper ignition due to misalignment caused by thermal expansion during heating cycles.
After replacing and correctly aligning the switch, not only did ignition issues resolve but overall efficiency improved as well—demonstrating how critical proper installation is alongside component quality.
In another instance involving an industrial boiler system, operators noticed unexpected shutdowns during operations. Investigation revealed that corroded contacts within a water level monitoring micro switch were causing false readings leading to unnecessary shutdowns.
Replacing this component restored normal operations while highlighting how regular maintenance checks could prevent such costly downtimes in future scenarios.
Micro switches play a vital role in ensuring that boilers operate safely and efficiently. By controlling ignition processes and acting as safety devices, they help prevent dangerous situations while maintaining optimal performance. Understanding how these switches work and their importance can empower users to take better care of their heating systems.
Regular maintenance and timely troubleshooting are key factors in maximizing both safety and efficiency in boiler operations. By being proactive about these components, homeowners can ensure their heating systems remain reliable throughout their lifespan.
If a micro switch fails, it may prevent your boiler from igniting or operating safely, potentially leading to overheating or gas leaks.
Signs include inconsistent operation of your boiler, failure to ignite, or visible damage to the switch itself.
Yes, as long as you follow safety protocols by turning off power and carefully handling electrical components during replacement.
Choose a type that matches your boiler's specifications—standard, waterproof, or high-temperature options are available depending on your needs.
It's recommended to inspect them at least once a year during routine maintenance checks for optimal performance.
