Micro switches, also known as snap-action switches, are small yet powerful components widely used in various electronic devices and systems. Their primary function is to convert mechanical movement into electrical signals, allowing for precise control and automation in countless applications. This article will explore the workings of micro switches, their applications, advantages, and the technology behind them, providing a comprehensive understanding of their role in modern electronics.

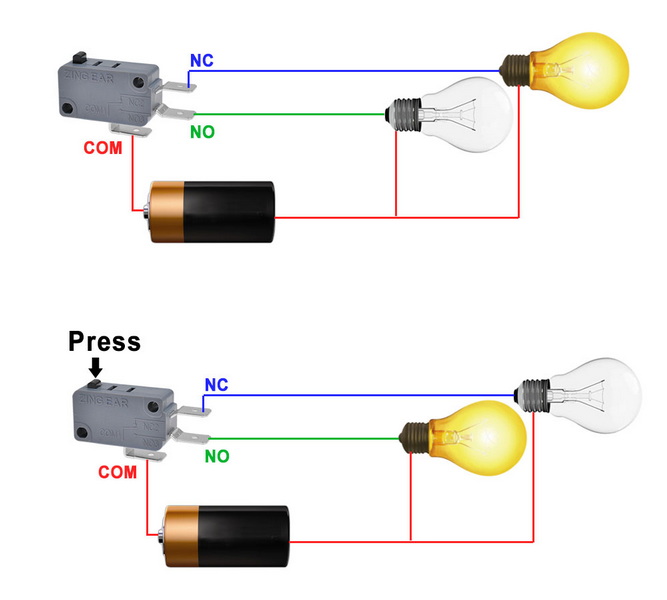

A micro switch is a type of electromechanical switch that is activated by a small amount of physical force. It typically consists of a housing, a spring-loaded actuator, and electrical contacts. When the actuator is pressed, it causes the contacts to either open or close, completing or interrupting an electrical circuit. This mechanism allows micro switches to respond quickly to changes in position or pressure, making them ideal for applications that require precise control.
Micro switches operate on a simple principle: the snap-action mechanism. When the actuator is pressed, it moves a lever that compresses a spring. Once the force exceeds a certain threshold, the switch "snaps" into the opposite position, either closing or opening the circuit. This rapid action ensures that the switch can handle high-speed operations without delay.
Micro switches come in various types, each designed for specific applications. Some common types include:

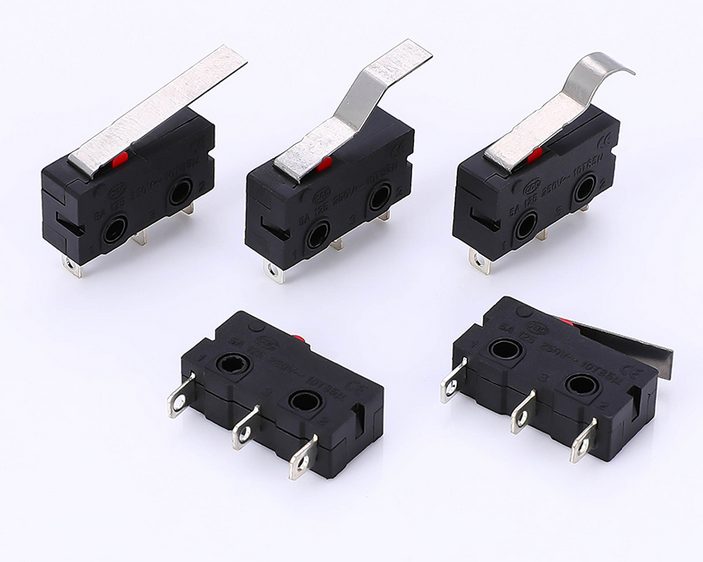

1. Standard Micro Switches: These are the most common type, featuring a simple design and a variety of actuator options, such as levers, rollers, and buttons.
2. Subminiature Micro Switches: Smaller in size, these switches are used in compact devices where space is limited.
3. Waterproof Micro Switches: Designed for harsh environments, these switches are sealed to prevent water and dust ingress.
4. High-Temperature Micro Switches: These switches can operate in extreme temperatures, making them suitable for industrial applications.
Micro switches are used in a wide range of applications across various industries. Here are some notable examples:
Micro switches are commonly found in household appliances such as washing machines, microwaves, and refrigerators. They ensure that doors are closed before the appliance operates, enhancing safety and efficiency.
In vehicles, micro switches are used for various functions, including seatbelt reminders, door sensors, and ignition systems. They help ensure that safety features are activated only when necessary.
Micro switches play a crucial role in industrial machinery, where they are used for limit sensing, safety interlocks, and control systems. Their reliability and quick response times make them ideal for automation processes.
Many consumer electronics, such as computer mice and keyboards, utilize micro switches for their tactile feedback and responsiveness. This enhances user experience by providing a satisfying click when a button is pressed.
In the medical field, micro switches are used in devices like infusion pumps and diagnostic equipment. Their precision and reliability are critical for patient safety and effective treatment.
Micro switches offer several advantages that make them a preferred choice in many applications:
Micro switches provide accurate and reliable operation, ensuring that devices function as intended. Their snap-action mechanism allows for quick response times, which is essential in safety-critical applications.
The small size of micro switches makes them suitable for use in compact devices where space is at a premium. This versatility allows manufacturers to design smaller and more efficient products.
Micro switches are designed to withstand harsh conditions, including extreme temperatures, humidity, and mechanical wear. This durability ensures a long lifespan, reducing the need for frequent replacements.
With various actuator options and configurations, micro switches can be tailored to meet the specific needs of different applications. This adaptability makes them suitable for a wide range of industries.
Micro switches are typically made from durable materials such as plastic, metal, and rubber. The housing is often constructed from high-quality plastic to provide insulation and protection from environmental factors. The contacts are usually made from conductive metals like gold or silver to ensure reliable electrical connections.
The manufacturing of micro switches involves several steps, including:
1. Molding: The plastic housing is molded into shape using injection molding techniques.
2. Assembly: The internal components, including the actuator, spring, and contacts, are assembled within the housing.
3. Testing: Each switch undergoes rigorous testing to ensure it meets quality and performance standards.
4. Packaging: Once tested, the switches are packaged for distribution to manufacturers and retailers.
As technology advances, micro switches are evolving to meet the demands of modern applications. Innovations include:
With the rise of the Internet of Things (IoT), smart micro switches are being developed to provide connectivity and remote control capabilities. These switches can be integrated into smart home systems, allowing users to monitor and control devices from their smartphones.
New materials and coatings are being used to enhance the durability of micro switches, making them more resistant to environmental factors such as moisture, dust, and extreme temperatures. This is particularly important in industrial applications where reliability is critical.
As devices become smaller and more compact, the demand for miniaturized micro switches is increasing. Manufacturers are developing smaller switches that maintain performance while fitting into tighter spaces.
Many manufacturers now offer customizable micro switches, allowing customers to specify actuator types, terminal configurations, and other features to meet their specific needs. This flexibility is beneficial for specialized applications.
Micro switches are essential components in modern electronics, providing reliable and precise control in a variety of applications. Their compact size, durability, and versatility make them a popular choice across industries, from home appliances to automotive systems. Understanding how micro switches work and their applications can help in selecting the right switch for specific needs, ensuring optimal performance and safety.
In summary, micro switches play a crucial role in the functionality of many devices we use daily. Their ability to convert mechanical movement into electrical signals allows for automation and control in countless applications, making them an indispensable part of modern technology.
Micro switches typically have a lifespan of several million cycles, depending on the application and operating conditions. High-quality switches can last up to 10 million operations or more.
Yes, waterproof and weather-resistant micro switches are designed for outdoor use. These switches are sealed to prevent moisture and dust ingress, making them suitable for harsh environments.
When selecting a micro switch, consider factors such as the required operating force, size constraints, environmental conditions, and the type of actuator needed for your specific application.
Yes, micro switches are generally easy to install. They typically come with mounting holes or brackets, and their wiring is straightforward, making them suitable for both DIY projects and professional installations.
Common failure modes include contact wear, mechanical failure of the actuator, and environmental damage (such as corrosion). Regular maintenance and proper selection for the application can help mitigate these issues.
