Micro switches, often referred to as snap-action switches, are essential components in various electrical devices. They are designed to change the state of electrical contacts quickly and reliably. Understanding the terminology associated with these switches, such as "off-on-on," is crucial for anyone working with or designing electronic systems.
Micro switches are small, sensitive switches that operate with minimal force. They are widely used in appliances, machinery, and various electronic devices due to their reliability and precision. The fundamental operation of a micro switch involves a spring-loaded mechanism that opens or closes electrical contacts when an actuator (like a lever) is pressed.

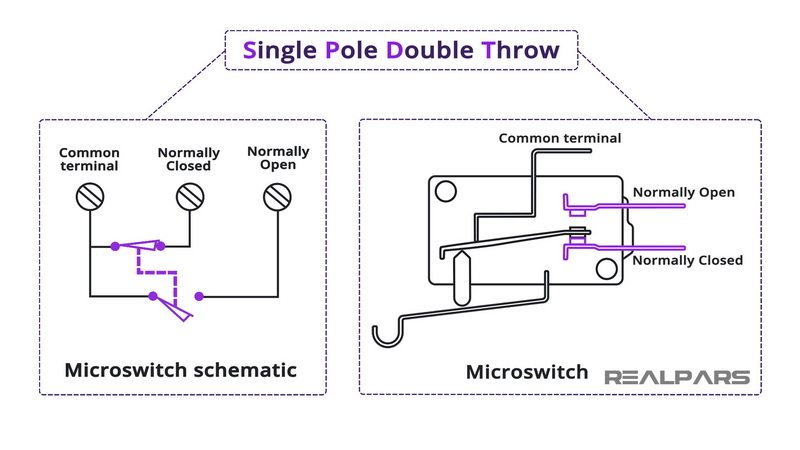

A typical micro switch consists of:
- Housing: Made from durable materials like plastic or metal.
- Actuator: A lever or button that triggers the switch.
- Contacts: Usually includes three terminals: Common (C), Normally Open (NO), and Normally Closed (NC).
- Spring: Provides the snap-action mechanism that allows for quick switching.
The term "off-on-on" describes the functionality of specific types of micro switches. This configuration indicates that the switch has three positions:
1. First "On" Position: When activated, it connects the common terminal to the first output (NO).
2. Off Position: In this middle position, there is no connection made; the circuit is open.
3. Second "On" Position: Activating this position connects the common terminal to a different output (NO).
This configuration is particularly useful in applications requiring control over multiple circuits or functions, allowing for versatile operation within a single switch.
Micro switches with an "off-on-on" configuration are commonly found in:
- Control Panels: Used to toggle between different modes or settings.
- Automotive Systems: For controlling various functions like lights or indicators.
- Industrial Equipment: To manage multiple operational states in machinery.
- Home Appliances: Such as washing machines and microwaves, where different settings need to be selected.
- Gaming Devices: For controlling multiple functions with one switch, enhancing user experience.
The operation of a micro switch can be broken down into several steps:
1. Initial State: In the off position, no current flows through the circuit.
2. First Activation: Pressing the actuator moves the internal mechanism, connecting the common terminal to the first NO contact, allowing current to flow.
3. Releasing Activation: When released, the switch returns to its off state.
4. Second Activation: A further press activates the second NO contact, completing another circuit path.
This design allows for efficient control over multiple functions without needing multiple switches.
Micro switches offer several advantages:
- Precision Switching: They provide accurate and repeatable switching actions.
- Compact Size: Their small footprint allows for easy integration into devices.
- Durability: Designed to withstand millions of cycles, they have a long operational life.
- Quick Response Time: Ideal for applications requiring immediate action.
- Versatility: Can be used in various environments and applications due to their robust design.
There are several types of micro switches available on the market:
- Standard Micro Switches: The most common type used in various applications.
- Subminiature Micro Switches: Smaller versions designed for tight spaces while maintaining functionality.
- Heavy-Duty Micro Switches: Built to handle higher currents and voltages; ideal for industrial applications.
- Waterproof Micro Switches: Designed for use in environments where exposure to moisture is a concern.
Each type serves specific needs based on size, environmental conditions, and electrical requirements.
When choosing a micro switch for your application, consider the following factors:
- Electrical Ratings: Ensure that the switch can handle the voltage and current required by your application.
- Operating Force: The amount of force needed to activate the switch; this can vary based on user preference and application needs.
- Mounting Style: Choose between panel mount, PCB mount, or other configurations based on your device's design.
- Actuator Type: Select from various actuator styles such as levers, buttons, or rollers based on how you plan to operate the switch.
Micro switches can sometimes encounter issues that may affect their performance. Here are some common problems and their solutions:
1. Switch Not Activating
- Check if there is any obstruction preventing the actuator from moving freely.
- Ensure that all connections are secure and there is no damage to wiring.
2. Intermittent Operation
- This could be due to wear on contacts; consider replacing the switch if it frequently fails to operate correctly.
- Inspect for corrosion or debris on contacts that may disrupt electrical flow.
3. Switch Sticking
- Dirt or debris may cause mechanical sticking; clean around the actuator and ensure it moves freely.
- Verify that the operating force is appropriate; if too low or high, it may cause sticking issues.
4. Electrical Failure
- Use a multimeter to check continuity across contacts when activated; if there's no continuity when it should be closed, replace the switch.
Recent advancements in micro switch technology have led to improved designs and functionalities:
- Smart Micro Switches: Some modern micro switches come equipped with sensors that allow them to communicate wirelessly with other devices, enhancing automation capabilities.
- Enhanced Durability Materials: New materials are being used in manufacturing micro switches that withstand extreme temperatures and corrosive environments better than traditional materials.
- Miniaturization Trends: As technology advances, manufacturers continue to create smaller switches without sacrificing performance or reliability, allowing for more compact designs in electronic devices.
Understanding what "off-on-on" means in the context of micro switches is vital for anyone involved in electronics or electrical engineering. These switches provide reliable control over multiple circuits and functions, making them indispensable in modern technology. Their compact design and efficient operation ensure they remain a popular choice across various industries. By selecting the right type of micro switch and understanding its operation and potential issues, users can enhance their devices' functionality and reliability significantly.
A micro switch is a small, sensitive switch that uses a spring-loaded mechanism to open or close electrical contacts rapidly when activated by an actuator.
The "off-on-on" configuration indicates that the switch has three positions: one first "on," one off, and one second "on," allowing control over two different circuits.
Micro switches are used in various applications including household appliances, automotive systems, industrial equipment, and control panels.
To test a micro switch, use a multimeter to check continuity between terminals while activating the switch; it should show continuity when activated at both "on" positions.
Yes, manufacturers often offer customization options for micro switches regarding actuator types, contact configurations, and operating forces to meet specific application needs.
