Micro switches, also known as snap-action switches, are compact, highly sensitive mechanical switches used extensively in various industries worldwide. They are designed to rapidly switch electrical contacts from one position to another with minimal physical force, providing reliable and precise control in electronic and mechanical systems. This article explores what a micro switch is, how it works, its types, applications, and selection criteria, enriched with detailed explanations to illustrate key concepts.

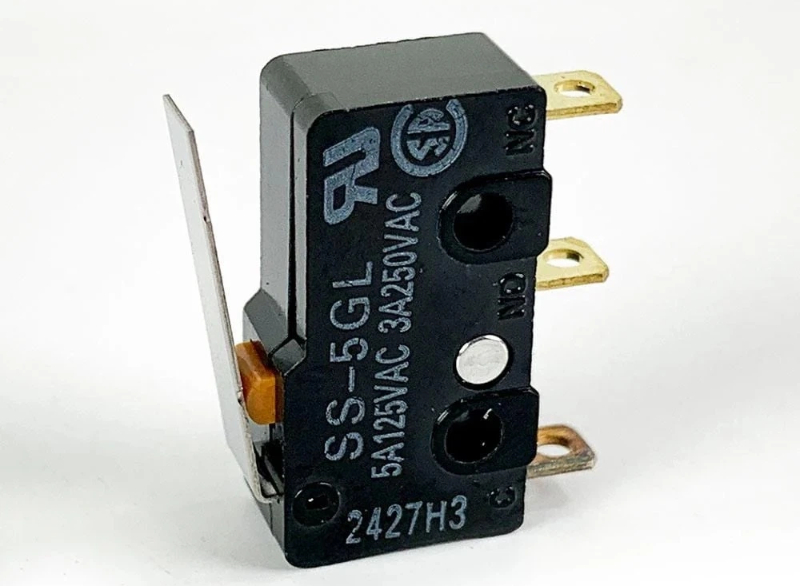

A micro switch is a type of mechanical switch that actuates electrical contacts quickly when a small physical force is applied to its actuator. Unlike traditional switches that may require significant pressure and have slower response times, micro switches operate with a *snap-action* mechanism, meaning the contacts move rapidly between open and closed states once a threshold force is reached. This ensures high reliability, durability, and precision.
Micro switches are typically small, ranging from subminiature sizes (about 20 mm in length) to standard sizes, and are made from materials such as thermoplastic, metal, or a combination of both. They come with various actuator styles, including buttons, levers, rollers, and plungers, to suit different applications.
The core working principle of a micro switch lies in its internal snap-action mechanism. Here is a step-by-step explanation:
1. Actuation Force: When a small force is applied to the actuator (button, lever, or roller), it pushes a spring-loaded mechanism inside the switch.
2. Snap Action: Once the force exceeds a certain threshold, the internal spring mechanism rapidly snaps the electrical contacts from one position to another — either from normally closed (NC) to open (NO) or vice versa.
3. Contact Switching: This quick, decisive movement ensures that the circuit is either connected or disconnected almost instantaneously, reducing arcing and wear on the contacts.
4. Reset: When the force is removed, the spring returns the actuator and contacts to their original position.
This mechanism allows micro switches to operate at high speeds with minimal wear, making them ideal for applications requiring precise and repeated switching.
The snap-action design is what differentiates micro switches from other mechanical switches. It provides a tactile “click” feedback and ensures that the switch does not remain in an intermediate state, which can cause unreliable circuit behavior or electrical noise. The rapid movement also helps to minimize electrical arcing at the contacts, prolonging the switch's lifespan.
Understanding the internal components helps clarify how micro switches achieve their unique performance:
- Actuator: The part that receives the external force. It can be a button, lever, roller, or plunger, depending on the design requirements.
- Spring Mechanism: The heart of the snap-action system. It stores mechanical energy and releases it suddenly to move the contacts quickly.
- Electrical Contacts: Usually made of silver alloy or other conductive materials, these are the points that open or close the electrical circuit.
- Housing: Made from durable plastic or metal, it protects the internal components from dust, moisture, and mechanical damage.
- Terminals: Connect the switch internally to the external circuit, available in various forms such as solder lugs, quick-connect tabs, or PCB pins.
The precision engineering of these components ensures that micro switches can reliably operate millions of cycles without failure.
Micro switches come in various types based on their actuator style, electrical configuration, and size:
- Button/Plunger Micro Switches: These have a simple push-button or plunger actuator. They are commonly used in devices where a direct press action is required, such as computer mice or control panels.
- Lever Micro Switches: Featuring a lever arm that can be straight, roller, or simulated roller, these switches are ideal for applications where the actuator must be triggered by a moving part, such as conveyor belts or mechanical linkages.
- Subminiature Micro Switches: These are very small switches designed for applications where space is limited, such as in compact electronics or medical devices.
- High Current Micro Switches: Designed to handle higher electrical loads, sometimes up to 26 Amps, these switches are used in home appliances, industrial machinery, and automotive systems.
Electrical configurations include:
- Normally Open (NO): Contacts are open until the switch is pressed.
- Normally Closed (NC): Contacts are closed until the switch is pressed.
- Single Pole Double Throw (SPDT): Switch toggles between NO and NC contacts, allowing for more complex circuit control.
These options allow micro switches to be customized for a wide range of control and safety functions.
Micro switches are found in numerous industries and everyday devices due to their precision, durability, and versatility:
Micro switches are widely used in industrial automation for position detection in robotic arms and machine tools. They monitor conveyor belts and production lines, providing feedback that helps control machinery operations. Their fast response and reliability make them ideal for safety interlocks and emergency stop mechanisms.
In vehicles, micro switches detect seatbelt engagement, control door lock mechanisms, and contribute to airbag deployment systems. Their durability and ability to withstand vibrations and temperature variations make them suitable for harsh automotive environments.
Micro switches detect door open/close status in refrigerators and microwaves, control buttons in power tools, and provide feedback in 3D printers and HVAC systems. Their compact size and low operating force make them perfect for user interfaces.
In medical devices, micro switches ensure precise position sensing for diagnostic machines and control infusion pumps. The reliability and repeatability of micro switches are critical for patient safety and device accuracy.
Micro switches monitor aircraft flap positions, control braking systems, and integrate into safety monitoring in railways. Their ability to perform reliably under extreme conditions is invaluable in these sectors.
Micro switches are increasingly used in smart home devices for detecting window and door status, triggering alarms, and controlling lighting systems. Their small size and low power consumption fit well with modern IoT devices.
Micro switches offer several advantages that make them preferable over other types of switches:
- High Durability: Capable of millions of cycles without failure.
- Fast Response: Snap-action mechanism ensures quick switching.
- Low Operating Force: Requires minimal physical force to actuate.
- Compact Size: Fits into small or tight spaces.
- Versatility: Available in many actuator styles and electrical configurations.
- Cost-Effective: Mass-produced micro switches are affordable for many applications.
- Reliable Contact: Minimizes electrical noise and arcing.
Choosing the appropriate micro switch depends on several factors:
- Operating Force: The amount of force required to actuate the switch. Lower force is preferred for delicate applications.
- Electrical Rating: Current and voltage the switch can handle, ranging from 0.1A to over 20A.
- Actuator Style: Button, lever, roller, or custom shapes depending on mechanical interface.
- Terminal Type: Quick connect, solder, PCB mount, or lead wire for ease of installation.
- Environmental Conditions: Temperature range, IP rating for dust/water resistance.
- Size Constraints: Subminiature or standard sizes based on available space.
For example, a subminiature micro switch with a roller lever and low operating force is ideal for precise position detection in compact electronics, while a high current button micro switch suits home appliances requiring robust electrical capacity.
- Ensure the actuator is correctly aligned with the mechanical part that triggers the switch.
- Avoid excessive force beyond the rated operating force to prolong switch life.
- Use appropriate mounting hardware to secure the switch firmly.
- Consider environmental sealing if used in harsh or outdoor conditions.
- Test the switch operation in the circuit for proper NO/NC behavior before final assembly.
- Regularly inspect and maintain switches in critical applications to avoid unexpected failures.
Micro switches are generally low maintenance, but some practices help extend their service life:
- Cleaning: Keep the switch and actuator free from dust and debris.
- Lubrication: Some switches may benefit from light lubrication on mechanical parts, but avoid contaminating electrical contacts.
- Replacement: Replace switches showing signs of wear, corrosion, or inconsistent operation.
Common troubleshooting issues include:
- Switch not actuating: Check for mechanical obstruction or misalignment.
- Intermittent contact: Inspect for worn or dirty contacts.
- Excessive force required: Verify actuator and spring condition.
For manufacturers and brand owners seeking customized micro switch solutions, OEM (Original Equipment Manufacturer) services provide tailored products to meet specific design, performance, and certification requirements. OEM micro switches can be designed with custom actuator shapes, electrical ratings, terminal types, and environmental protections.
As a factory specializing in multi-position switches, including micro switches, sliding switches, tactile switches, and push-button switches, we offer comprehensive OEM services to global clients such as micro switch series brands, wholesalers, and manufacturers. Our expertise ensures high-quality, reliable switches that meet international standards and customer expectations.
A micro switch is a small yet powerful mechanical switch that provides rapid and reliable electrical contact switching with minimal force. Its snap-action mechanism ensures precision, durability, and longevity, making it indispensable in industries ranging from automation and automotive to consumer electronics and medical devices. Understanding the working principles, types, and applications of micro switches enables engineers and designers to select and integrate the right switch for their specific needs, enhancing safety, control, and efficiency in their products.
A micro switch uses a snap-action mechanism for rapid contact switching with minimal force, providing higher precision and durability compared to regular mechanical switches that may have slower, less reliable contact movement.
Yes, specialized micro switches can handle currents up to 26 Amps or more, suitable for appliances and industrial automation.
Common actuator styles include button/plunger, straight lever, roller lever, and simulated roller lever, each designed for different mechanical interfaces and applications.
If you want the circuit to be off until the switch is pressed, choose Normally Open (NO). For circuits that should be on until the switch is pressed, choose Normally Closed (NC).
Micro switches with appropriate IP ratings and sealing can be used in harsh environments. Selection depends on the specific environmental conditions like dust, moisture, and temperature.
