When designing electronic devices or systems, selecting the right type of switch is crucial for functionality, reliability, and user experience. Among the many options, slide switches and micro switches are two popular types, each with distinct characteristics and ideal applications. This article explores the differences, advantages, and use cases of slide switches and micro switches, helping you decide which fits your design needs best.
A slide switch is a mechanical switch that opens or closes an electrical circuit by sliding an actuator from one position to another. Typically, slide switches have multiple positions or poles and are used to select between different circuit paths or modes.
- Multi-position control: Usually 2 to 6 positions.
- Manual actuation: The user slides a knob or lever.
- Simple ON/OFF or multi-circuit selection.
- Durable and easy to operate.
- Audio and video equipment for channel or mode selection.
- Consumer electronics for power or function toggling.
- Industrial control panels for mode selection.
- Toys and handheld devices where simple user input is needed.
- Communication devices to switch between different frequency bands or settings.
Slide switches are often favored for their simplicity and clear physical feedback. The sliding motion is intuitive and provides a tactile feel that users appreciate in everyday devices. Their construction is straightforward, which often results in lower production costs, making them ideal for consumer products where cost efficiency is important.

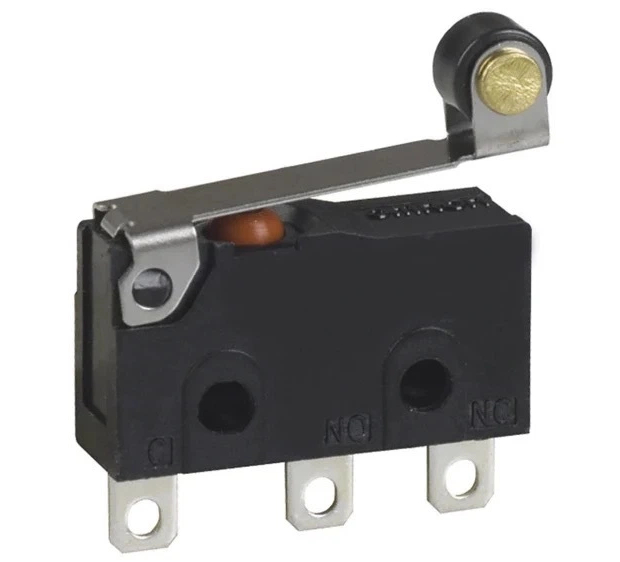

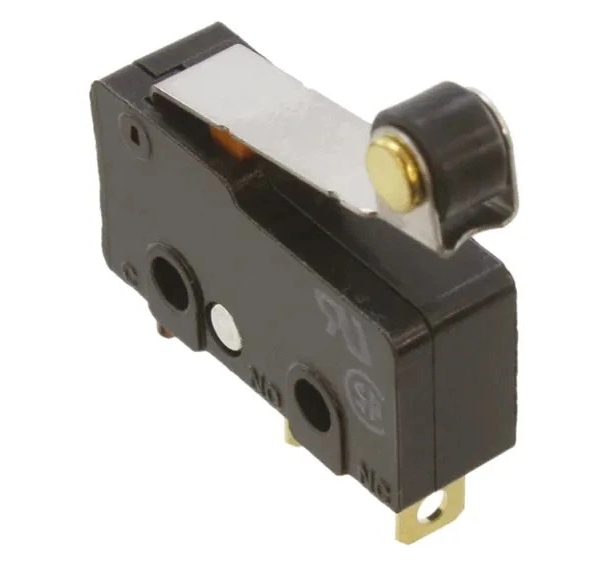

A micro switch, also known as a snap-action switch, is a small, highly sensitive switch that actuates with very little physical force. It uses a spring-loaded mechanism to quickly open or close contacts, providing a fast and reliable switching action.
- Snap-action mechanism: Rapid switching with minimal force.
- High durability and long life cycle.
- Multiple actuator styles: Button, lever, roller, etc.
- Capable of handling high currents and voltages in compact sizes.
- Typically used as limit or position detection switches.
- Household appliances like microwaves, coffee makers, vacuum cleaners, and electric fans.
- Automotive controls such as window switches, seat controls, and safety systems.
- Industrial automation for position detection and equipment control.
- Medical devices, telecommunications, aerospace, and railway systems.
- Security systems for door and window sensors.
- Gaming controllers and computer mice for precise input detection.
Micro switches are renowned for their reliability and precision. The snap-action mechanism reduces contact bounce, enhancing the switch's electrical performance and longevity. This makes micro switches ideal for applications where precise control and durability are paramount.
| Feature | Slide Switch | Micro Switch |
|---|---|---|
| Operation | Manual sliding of a lever or knob | Snap-action triggered by light mechanical force |
| Positions | Multiple positions (2-6) | Typically two states (ON/OFF) with fast switching |
| Size | Larger, bulkier | Compact and miniature |
| Durability | Moderate, depends on usage | High durability, millions of cycles possible |
| Force Required | Moderate sliding force | Very low actuation force |
| Typical Use Cases | Mode selection, power toggling | Limit switches, position detection, safety interlocks |
| Electrical Rating | Generally lower current ratings | Can handle higher currents with robust contacts |
| Mounting Style | Through-hole or surface mount | Through-hole, surface mount, panel mount |
| Feedback | Tactile sliding feel | Audible and tactile "click" feedback |
Micro switches are indispensable in designs requiring precision, reliability, and fast switching. Their snap-action mechanism ensures that the contacts change state quickly, reducing arcing and wear. This makes them ideal for:
- Safety-critical applications: Automotive airbags, seatbelt detection, door interlocks.
- Industrial automation: Conveyor belt position sensing, robotic arm limits.
- Consumer electronics: Mouse buttons, appliance door detection.
- High current switching: Special micro switches can handle currents up to 26A, suitable for household appliances and factory automation.
- Environmental resistance: Many micro switches are designed to resist dust, moisture, and vibration, making them suitable for harsh environments.
- Customizable actuation: Variations in actuator design (roller, lever, button) allow integration into complex mechanical systems.
Additionally, micro switches come in various actuator styles (button, lever, roller), allowing flexible integration into different mechanical designs. Their compact size also enables them to fit into tight spaces where larger switches cannot.
Slide switches are preferred when manual multi-position control is needed. They offer a straightforward way for users to select modes or turn devices on/off with clear physical feedback.
- User interface simplicity: Easy to operate and understand.
- Multiple circuit control: Can switch between several circuit paths.
- Cost-effective and robust: Suitable for consumer electronics, toys, and audio devices.
- Visual indication: The position of the slider often clearly indicates the switch's state.
- Low maintenance: Simple mechanical design reduces the likelihood of failure.
However, slide switches generally have a slower mechanical response and lower durability compared to micro switches, making them less suitable for applications demanding rapid or frequent switching. They are also less suited for high current or high voltage applications.
When selecting between slide switches and micro switches, consider the electrical ratings such as voltage, current, and contact resistance. Micro switches typically offer better performance for higher current and voltage applications due to their robust contact design and snap-action mechanism. Slide switches are more commonly used in low current circuits.
Micro switches are engineered for longevity, often rated for millions of cycles, which is critical in industrial and automotive applications. Slide switches, while durable, may have a shorter mechanical life, especially if used in high-cycle environments.
If your design will be exposed to dust, moisture, or vibration, micro switches with sealed or environmentally protected housings are preferable. Slide switches, unless specially sealed, are more vulnerable to environmental factors.
For devices where the user needs to clearly see and feel the switch position, slide switches provide excellent feedback. Micro switches often operate internally and provide a tactile "click" but may not have a visible position indicator.
As a factory specializing in multi-position switches, including micro switches, slide switches, tactile switches, and push-button switches, we offer OEM services tailored to your specifications. Whether you need custom actuator designs, specific electrical ratings, or unique mounting options, our engineering team can assist in developing the perfect switch solution for your product.
Both slide switches and micro switches have unique strengths. Slide switches excel in user-controlled multi-position selection with straightforward operation. Micro switches offer rapid, reliable, and durable switching ideal for automation, safety, and precision applications. Understanding your design's functional, mechanical, and electrical requirements will guide you to the right choice. As a manufacturer offering OEM services for micro switches and related products, we can help you integrate the perfect switch solution tailored to your project.
The main difference lies in the operation: slide switches are manually moved between positions to open or close circuits, while micro switches use a snap-action mechanism triggered by very light force to quickly change circuit states.
Yes, specialized micro switches such as TE Connectivity's HCP series can handle currents up to 26 amperes, suitable for household appliances and industrial applications.
Absolutely. Micro switches are widely used in automotive systems for window controls, seat adjustments, airbags, and safety interlocks due to their reliability and precision.
Micro switches are designed for high durability, often rated for millions of operation cycles, making them ideal for frequent switching tasks.
Yes, slide switches often have multiple positions (2 to 6 or more), making them suitable for selecting different modes or settings manually.
