When sourcing micro switches for OEM projects, selecting the right product is critical to ensure reliability, performance, and cost-effectiveness. As a Chinese factory specializing in multi-position switches, we provide OEM services for a wide range of micro switch types, including micro switches, slide switches, tactile switches, and push-button switches to international brand owners, wholesalers, and manufacturers. This comprehensive buyer's guide will help you understand the key factors in choosing the perfect micro switch for your application, covering technical parameters, certifications, actuator types, and application scenarios.

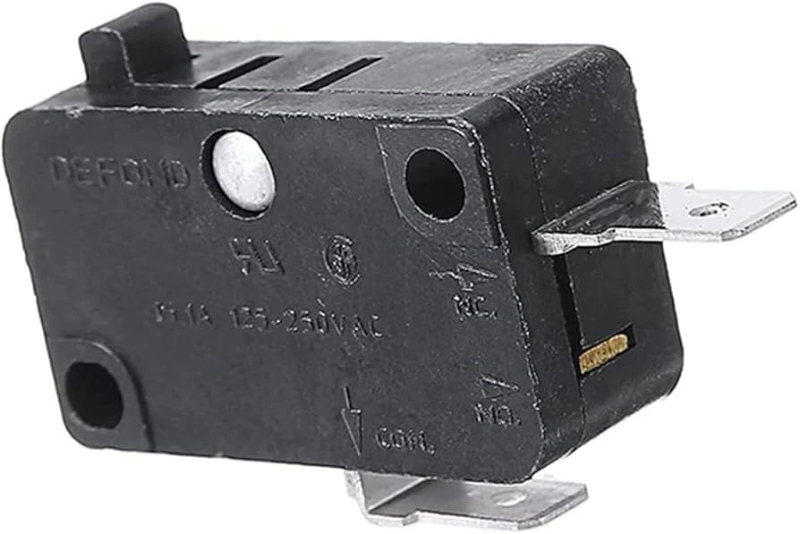

A micro switch is a precision electromechanical component that triggers circuit on/off states through a small physical displacement. It consists of an actuator (button, roller, or lever), a snap-action mechanism, contact sets (normally open or normally closed), and a protective housing. The snap-action mechanism enables rapid switching in less than 5 milliseconds, providing accurate and repeatable electrical control. This fast and reliable switching action makes micro switches ideal for safety interlocks, position detection, and control circuits in a wide variety of equipment.
Before contacting suppliers, clarify your technical and commercial needs:
- Functionality: What is the switch's role? Position detection, limit control, feedback, or presence detection? Understanding the exact function helps determine the switch type and actuator style.
- Electrical Load: Determine voltage and current ratings based on your equipment's power requirements. Micro switches vary from low voltage (5V, 12V) to higher voltages (120V, 240V). Selecting a switch with appropriate voltage and current ratings ensures safety and longevity.
- Operating Environment: Consider moisture, temperature range, dust, and exposure to corrosive elements. For harsh environments, waterproof or sealed micro switches with IP67 or higher ratings may be necessary.
- Mechanical Life: For industrial applications, switches with mechanical lifespans exceeding 1 million cycles are preferred to reduce downtime and maintenance costs.
- Mounting Style: Panel mount, surface mount, or through-hole options affect installation ease and space constraints. Ensure the mounting style is compatible with your device design.
- Actuation Force: The force required to activate the switch affects user experience and mechanical integration. Low actuation force switches are suitable for delicate applications, while higher force switches provide better resistance to accidental activation.
Understanding the electrical and mechanical parameters is crucial for selecting the right micro switch. These parameters directly impact the switch's performance and durability.
| Parameter | Typical Range | Description |
|---|---|---|
| Rated Voltage | 12V to 480V AC/DC | Maximum safe operating voltage |
| Rated Current | 1A to 25A | Continuous switching current |
| Contact Resistance | <50 mΩ | Affects power loss and heat |
| Insulation Resistance | >100 MΩ (500VDC) | Electrical isolation between contacts |
| Dielectric Strength | 1kV to 4kV AC (1 min) | Resistance to voltage breakdown |
Materials for contacts vary by application:
- Silver-nickel alloy for general use (15A)
- Gold alloy for low current, signal-level circuits to reduce contact resistance and corrosion.
The choice of contact material affects the switch's reliability, especially in low current or high-frequency switching applications. For OEM projects requiring long-term reliability, selecting the appropriate contact material is essential.
Micro switches come with various actuator styles to suit different mechanical requirements:
- Button/Plunger: Simple linear actuation, common in compact devices. Suitable for applications where the switch is directly pressed.

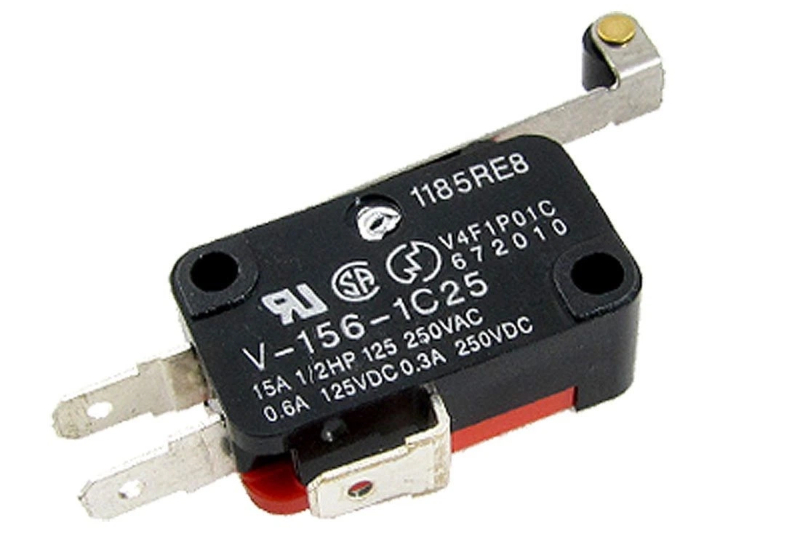

- Roller Lever: Suitable for detecting motion or position where the actuator must engage from a distance or with a moving part. The roller reduces friction and wear.
- Plain Lever: For applications with limited space requiring direct actuation. Offers a simple mechanical interface.
- Slide Actuators: Used in slide switches for multi-position control, allowing users to select different circuit states.
- Adjustable Levers: Allow fine-tuning of actuation points, useful in precision equipment.
Choosing the right actuator style depends on the mechanical design of your product and how the switch will be engaged. For example, a roller lever switch is ideal in conveyor systems where a moving part triggers the switch.
Ensuring your micro switch supplier has the right certifications is vital for product safety, reliability, and regulatory compliance. Key certifications include:
- ISO 9001: Quality management systems ensuring consistent manufacturing processes.
- IATF 16949: Automotive industry standard for quality, critical for switches used in vehicles.
- ISO 13485: Quality management for medical devices, important for switches in medical equipment.
- UL and cUL: Safety certifications recognized in the US and Canada.
- ENEC: European safety certification.
- RoHS and REACH: Environmental compliance certifications restricting hazardous substances.
These certifications help reduce risks of product failure, ensure compliance with international standards, and facilitate market access. For OEM projects, working with certified suppliers minimizes quality issues and supports brand reputation.
For applications exposed to harsh conditions, micro switches with enhanced environmental protection are recommended. Features to look for include:
- Sealed or Encapsulated Housings: Silicone potting or laser welding seals prevent ingress of dust and moisture.
- IP Ratings: IP67 or higher ratings indicate protection against dust and immersion in water.
- Extended Temperature Ranges: Switches rated for -40°C to +125°C or beyond can operate reliably in extreme climates.
- Corrosion-Resistant Materials: Stainless steel actuators and gold-plated contacts resist oxidation and chemical damage.
- Vibration and Shock Resistance: Important for automotive and industrial machinery applications.
OEM buyers should specify environmental requirements early to ensure the micro switch meets durability expectations.
| Switch Type | Features | Typical Applications |
|---|---|---|
| Standard Micro Switch | Compact, fast snap-action | Household appliances, automation |
| Subminiature Switch | Smaller footprint, low power | Medical devices, consumer electronics |
| Waterproof Switch | IP67 or higher sealing | Outdoor equipment, automotive |
| High Current Switch | Rated up to 26A, robust contacts | Factory automation, heavy machinery |
| Slide Switch | Multi-position, lever or slider actuator | Audio equipment, control panels |
| Tactile Switch | Low force, momentary contact | Keyboards, remote controls |
Each type serves distinct functions and industries. For instance, tactile switches are widely used in consumer electronics for user input, while high current micro switches are integral to industrial control systems.
OEM projects often require switches customized to specific needs, including:
- Actuator Modifications: Length, shape, and material adjustments to fit unique mechanical designs.
- Contact Material Customization: To optimize conductivity and durability for specialized circuits.
- Packaging and Branding: Custom labels, packaging sizes, and branding for product differentiation.
- Connector Types: Customized terminals or cable assemblies for easier integration.
- Pre-Testing and Quality Assurance: Tailored testing protocols to meet OEM standards.
Working with a manufacturer experienced in OEM customization ensures your micro switches fit perfectly into your product, reducing assembly time and improving reliability.
While quality and specifications are paramount, cost efficiency is also critical in OEM sourcing. Consider:
- Unit Price vs. Volume: Larger orders typically qualify for discounts.
- Total Cost of Ownership: Factor in switch lifespan, failure rates, and replacement costs.
- Supplier Location and Logistics: Proximity to your manufacturing site can reduce shipping times and costs.
- Warranty and Support: Reliable after-sales service can save costs in the long run.
Balancing cost with quality and supplier reliability ensures your OEM project remains profitable without compromising performance.
Selecting the right micro switch for your OEM project requires a comprehensive understanding of your application's electrical, mechanical, and environmental requirements. By focusing on key parameters such as load ratings, actuator types, certifications, and durability, you can ensure the switch will perform reliably and cost-effectively. Partnering with a reputable manufacturer who offers OEM customization and quality assurance is essential for success. This guide aims to empower buyers with the knowledge to make informed decisions and optimize their product designs with the best micro switch solutions available.
A micro switch features a snap-action mechanism that rapidly changes contact states with minimal physical movement, providing higher precision and reliability compared to regular mechanical switches.
Choose based on your mechanical interface: roller levers for motion detection, button/plunger for direct actuation, and slide actuators for multi-position control. Space constraints and force requirements also influence this choice.
Look for ISO 9001, IATF 16949 (automotive), ISO 13485 (medical), and safety/environmental certifications like UL, RoHS, and REACH to ensure quality and compliance.
Yes, many manufacturers offer customization including actuator designs, packaging, contact materials, and branding to meet specific OEM needs.
Sealed housings with IP ratings (e.g., IP67), corrosion-resistant materials, and extended temperature ranges are common features to protect micro switches in harsh environments.
