Micro switch joysticks are specialized input devices commonly used in gaming and industrial applications. They utilize micro switches to register movements and actions, providing a precise and responsive control mechanism. This article will delve into the details of micro switch joysticks, exploring their components, functionality, advantages, and applications in various fields.
A micro switch is a small, sensitive switch that is actuated by a minimal amount of physical force. These switches are designed to provide reliable electrical connections with a rapid response time, making them ideal for applications requiring precision. When the lever or button of a micro switch is pressed, it "snaps" into position, closing the circuit and sending an electrical signal.
Micro switch joysticks consist of several key components:
- Joystick Handle: The part that the user interacts with to control movement.
- Base: The structure that supports the joystick handle and houses the micro switches.
- Micro Switches: Typically four switches are used to detect movement in four cardinal directions (up, down, left, right).
- Actuator: A mechanism that presses against the micro switches when the joystick is moved.
- Circuit Board: The electronic component that processes signals from the micro switches and sends them to the connected device.
When a player moves the joystick handle in any direction, the actuator presses down on the corresponding micro switch. This action closes the circuit within the switch, sending a signal to the gaming console or computer. The quick response time of micro switches allows for immediate feedback in gaming scenarios, enhancing the overall experience.
Micro switch joysticks offer several advantages over traditional joysticks:
- Improved Responsiveness: Micro switches have a shorter actuation distance compared to conventional switches. This means they register movements faster, which is crucial in high-speed gaming scenarios.
- Enhanced Accuracy: The tactile feedback provided by micro switches helps gamers know when their input has been registered. This feature improves precision during gameplay.
- Greater Durability: Micro switches are designed to withstand millions of cycles, making them a long-lasting option for gaming devices.
- Low Maintenance: These switches require minimal upkeep due to their robust design and reliability.
- Customizable Options: Many manufacturers offer different types of micro switches that can be swapped out based on user preference for feedback and actuation force.
Micro switch joysticks are widely used in various applications:
- Gaming: They are prevalent in arcade machines and gaming consoles, particularly for fighting games and first-person shooters where precision is vital.
- Industrial Controls: In industrial settings, micro switch joysticks can control machinery and equipment due to their reliability and precision. They are often used in cranes, forklifts, and other heavy machinery where precise control is essential.
- Robotics: They are also utilized in robotic systems for controlling movement and actions accurately. For instance, they can be integrated into remote-controlled robots or drones for enhanced maneuverability.
- Medical Devices: Some medical equipment uses micro switch joysticks to allow healthcare professionals to navigate complex interfaces easily.

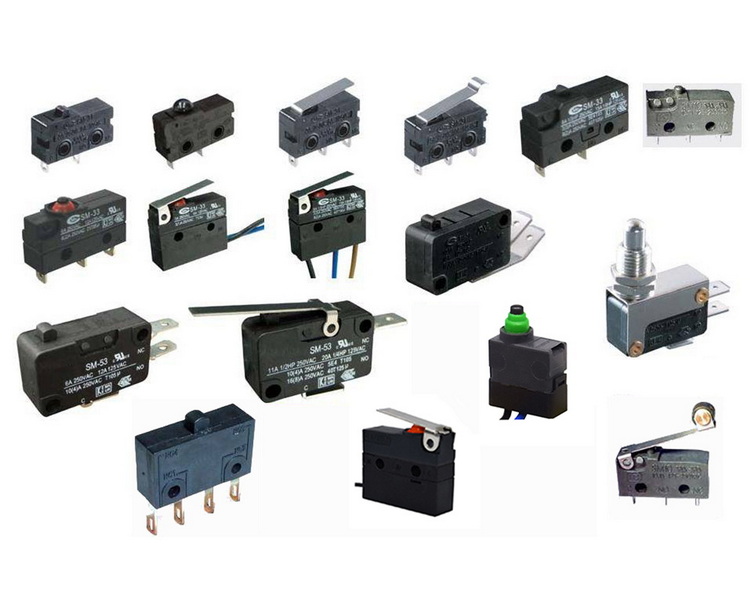

Different types of micro switches can be found in joysticks, each offering unique characteristics:
- Levered Micro Switches: These switches have a lever that provides mechanical advantage when pressed. They are commonly used in arcade-style joysticks due to their tactile feedback and responsiveness.
- Non-Levered Micro Switches: These provide direct actuation without any mechanical advantage. They are often found in more compact joystick designs where space is limited.
- Sealed Micro Switches: These switches are designed to be resistant to dust and moisture, making them suitable for outdoor or industrial environments where exposure to elements is a concern.
When selecting a micro switch joystick, consider the following factors:
- Type of Game: Different games may require different joystick characteristics. For instance, fighting games benefit from highly responsive joysticks with quick actuation times, while racing games may require smoother movements.
- Tactile Feedback Preference: Some players prefer a clicky feedback from their switches while others may opt for quieter options. Testing different models can help determine which feedback feels best during gameplay.
- Durability Needs: If you play frequently or use the joystick in an industrial setting, opt for models with higher durability ratings. Look for specifications regarding cycle life and materials used in construction.
- Ergonomics: Consider how comfortable the joystick feels during extended use. Ergonomic designs can prevent fatigue during long gaming sessions or work hours.
Installing a micro switch joystick typically involves connecting it to your gaming system or machine's circuit board. Here are some maintenance tips:
- Regularly check connections to ensure they remain secure. Loose connections can lead to unresponsive buttons or erratic behavior during gameplay.
- Clean dust and debris from around the joystick to prevent interference with movement. Use compressed air or soft brushes to avoid damaging internal components.
- Replace any faulty micro switches promptly to maintain performance. If you notice inconsistent feedback or dead zones during use, it may be time to swap out old switches for new ones.
Despite their reliability, users may encounter issues with micro switch joysticks over time:
1. Unresponsive Movement: If certain directions on the joystick do not respond, check if the corresponding micro switch needs replacement or if there's debris obstructing movement.
2. Inconsistent Feedback: If you experience varying levels of resistance or feel from your joystick movements, it may indicate wear on the micro switches or issues with the actuator alignment.
3. Physical Damage: Inspect your joystick regularly for signs of wear such as cracks in the housing or damage to the handle. Physical damage can affect performance significantly.
4. Connection Problems: Ensure that all wiring connections between the joystick and your device are secure; loose connections can lead to intermittent functionality.
Micro switch joysticks represent an evolution in input device technology, offering enhanced responsiveness, accuracy, and durability compared to traditional joystick designs. Their applications span gaming, industrial controls, robotics, and even medical devices—making them versatile tools for both entertainment and professional use. As technology advances, we can expect further innovations in micro switch design that will continue to improve user experiences across various fields. Whether you're an avid gamer looking for that competitive edge or an industry professional needing precise control over machinery, understanding what makes these devices tick will help you make informed choices about your equipment.
Leaf switches operate by bending metal contacts to close a circuit while micro switches use a lever mechanism that snaps into place. This difference affects responsiveness and tactile feedback.
Micro switches can last for millions of cycles depending on their quality and usage conditions; many gamers find them reliable over extended periods.
Yes! Many brands offer interchangeable micro switches or customizable options that allow users to select their preferred tactile feedback and actuation force.
While most modern games support standard input devices like micro switch joysticks, specific compatibility may depend on game settings or console requirements.
Signs include unresponsive buttons or inconsistent feedback during gameplay. Regularly checking connections and cleaning can help maintain performance.
