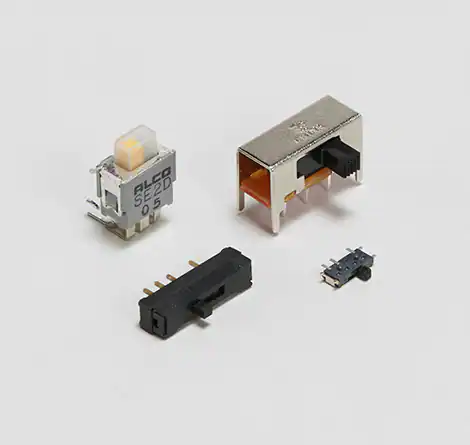

A slide switch is a type of mechanical switch that controls the flow of electricity in a circuit through a simple sliding action. This device is widely used in various electronic applications due to its reliability, ease of use, and straightforward design. Unlike momentary switches, which return to their original position after being pressed, slide switches maintain their state until manually changed, making them ideal for applications where a persistent on/off state is required.
The operation of a slide switch involves moving a lever or slider from one position to another, effectively opening or closing an electrical circuit. The mechanism typically consists of several key components:
- Terminals: Most slide switches have three terminals: one common terminal and two additional terminals. The common terminal connects with one of the outer terminals depending on the position of the slider.
- Sliding Mechanism: The slider moves linearly across the switch body. When the slider is pushed to one side, it connects the common terminal with one outer terminal; when moved to the other side, it connects with the opposite outer terminal.
- Electrical Contacts: Inside the switch, metal contacts touch each other when the slider is moved, completing or breaking the circuit as needed.
This straightforward design allows for intuitive control over electrical devices, making slide switches popular in many consumer electronics and industrial applications.
Slide switches come in various configurations, each serving different functions. The most common types include:
- Single Pole Single Throw (SPST): This is the simplest form of slide switch, functioning as an on/off switch with two positions—on and off.
- Single Pole Double Throw (SPDT): This type allows switching between two different circuits. It has three terminals: one common terminal and two that can connect to the common depending on the switch's position.
- Double Pole Single Throw (DPST): This switch controls two circuits simultaneously but only in an on/off manner.
- Double Pole Double Throw (DPDT): This versatile type allows for switching between two circuits while controlling two outputs.
Slide switches are utilized in a wide range of devices and applications due to their simplicity and effectiveness. Common uses include:
- Consumer Electronics: Found in devices like radios, remote controls, and toys to control power or select modes.
- Industrial Equipment: Used in machinery for operational control and safety mechanisms.
- Automotive Applications: Implemented in vehicles for various controls such as lighting and accessory power.
- Home Appliances: Often used in kitchen appliances and other household devices for user-friendly operation.
Slide switches are fundamental for various electronic applications because they offer a simple way to control the device's state and operation mode. Here are a few essential functions they provide:
- Power Control: Perhaps the most common use is slide switches, which turn devices on or off, controlling the flow of electricity through the circuit. Think of a flashlight where you slide the switch to power it on or off.
- Mode Selection: Many devices have multiple modes, like a fan with low, medium, and high speeds, which are controlled by a slide switch.
- Circuit Switching: Slide switches can connect different circuit parts in complex devices, allowing users to change configurations easily.
- Multi-Function Control: Some slide switches have several stops or settings that enable control over various aspects of the device, such as volume, brightness, or speed.
Slide switches offer several benefits that make them a preferred choice in many applications:
- Durability: Designed to withstand repeated use over time without significant wear or failure.
- Tactile Feedback: Users receive clear feedback when operating the switch due to its mechanical design.
- Visual Indication: The position of the slider provides immediate visual confirmation of whether a device is on or off.
- Compact Design: Slide switches are often small and lightweight, making them suitable for applications where space is limited.
- Cost-effectiveness: Generally inexpensive to manufacture, making them ideal for mass production scenarios while maintaining reliability.
When choosing a slide switch for a specific application, several factors should be taken into account:
- Pole and Throw Configuration: Determine how many circuits need to be controlled and how many positions are required.
- Size and Mounting Type: Select an appropriate size based on available space in the device design. Options include subminiature, miniature, and standard sizes.
- Electrical Ratings: Ensure that the selected switch can handle the voltage and current requirements of the application.
Installing a slide switch involves connecting its terminals correctly within an electrical circuit. Here's how you can typically wire an SPDT slide switch:
1. Connect one outer pin (let's say Pin 1) to ground.
2. Connect the middle pin (common) to your circuit's input.
3. Connect the other outer pin (Pin 2) to your power source or another circuit component you wish to control.
This wiring configuration helps ensure that when you slide the switch towards Pin 2, your circuit completes its connection with power; sliding it back towards Pin 1 disconnects it from power by grounding it instead.
Slide switches are known for their durability due to their mechanical nature. They can endure thousands of cycles without significant degradation. However, it's essential to consider environmental factors such as dust or moisture that may affect performance. Some slide switches come with sealing options that provide additional protection against contaminants. Regular inspection can help maintain functionality over time by ensuring contacts remain clean and free from corrosion or debris buildup.
As technology advances, so do slide switches. Innovations are being made in materials used for construction to enhance durability while reducing costs further. Additionally, manufacturers are exploring smart technologies that integrate electronic components with traditional mechanical designs—creating hybrid systems that combine tactile feedback with digital interfaces for more complex functionalities.
Moreover, miniaturization trends continue to push for smaller designs without sacrificing performance—ideal for modern electronic devices where space is at a premium. As industries evolve towards automation and smart home technologies, we can expect slide switches to adapt accordingly by incorporating features like remote control capabilities or programmable settings that enhance user convenience while retaining their fundamental simplicity.
In summary, slide switches are fundamental components in electrical engineering that provide an effective means of controlling circuits. Their simple design allows users to easily toggle between states while offering reliability across various applications. Understanding their functionality, types, advantages, installation methods, maintenance considerations, and future trends can help engineers select the right slide switch for their designs—enhancing both functionality and user experience in electronic devices.
A slide switch is a mechanical device used to control electrical circuits by sliding a lever from one position to another to open or close the circuit.
The main types include SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), DPST (Double Pole Single Throw), and DPDT (Double Pole Double Throw).
Slide switches are commonly found in consumer electronics, industrial equipment, automotive applications, home appliances, and toys.
Wiring depends on the type; generally connect one outer pin to ground, middle pin to your input signal line, and other outer pin to your power source or component you wish to control.
Slide switches offer durability, tactile feedback upon operation, visual indication of status (on/off), compact design suitable for limited spaces, and cost-effectiveness without compromising reliability.
