A three-position slide switch is a versatile component commonly used in electronic devices to control the flow of electricity. This article will explore the workings of a three-position slide switch, its types, wiring configurations, applications, and more. By the end, you will have a comprehensive understanding of how these switches function in various contexts.
A three-position slide switch is a mechanical switch that allows users to select between three different states: typically "On," "Off," and another "On" position. The switch operates by sliding a lever or button along a track, making contact with different terminals in each position.

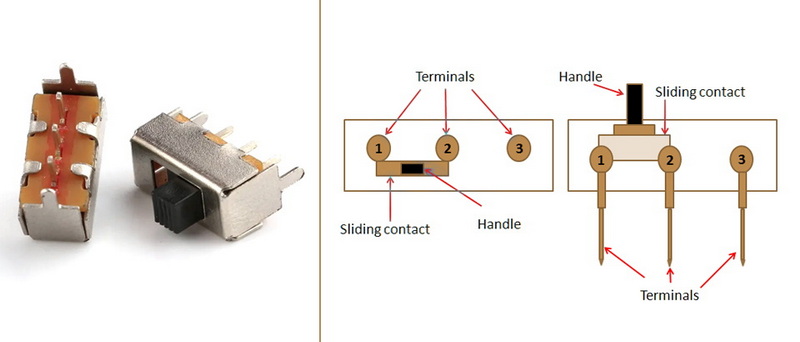

The basic structure of a three-position slide switch includes:
- Three terminals: One common terminal and two others for connection.
- Sliding mechanism: A slider that moves along a predetermined path, connecting different terminals based on its position.
There are several types of three-position slide switches, which can be categorized based on their configurations:
- Single Pole Double Throw (SPDT): This type connects one common terminal to one of two other terminals depending on the slider's position.
- Double Pole Double Throw (DPDT): This switch has two separate circuits that can be controlled simultaneously. It can connect one common terminal to either of two outputs for each pole.
- On-Off-On Configuration: This type allows for two "On" positions and one "Off" position, making it useful for toggling between two functions.
The operation of a three-position slide switch can be understood through its internal mechanism. When the slider is moved:
- In the first position, the common terminal connects to one outer terminal.
- In the middle position, the common terminal disconnects from both outer terminals (if designed as an On-Off-On switch).
- In the third position, the common terminal connects to the other outer terminal.
This action allows users to control different circuits or functions simply by sliding the lever.
Wiring a three-position slide switch may seem daunting at first, but it follows some straightforward principles. Here's how to wire an SPDT and DPDT slide switch:
1. Identify Terminals: The center terminal is usually the common one.
2. Connect Power: Connect your power source to the center terminal.
3. Connect Outputs: Connect your devices or circuits to the outer terminals.
1. Identify Terminals: There are two sets of outer terminals.
2. Connect Power: Connect your power source to the center terminals.
3. Connect Devices: Connect your devices to the outer terminals as needed.
Three-position slide switches are widely used in various applications due to their reliability and ease of use:
- Guitar Electronics: Commonly used in guitars for selecting pickups.
- Home Appliances: Used in devices like fans and lights to control speed or brightness.
- Industrial Equipment: Employed in machinery for controlling different operational modes.
Using three-position slide switches offers several benefits:
- Simplicity: Easy to understand and operate.
- Versatility: Can control multiple functions with one switch.
- Durability: Mechanical design provides long-lasting performance.
In summary, a three-position slide switch is an essential component in many electronic devices, allowing users to toggle between multiple states efficiently. Understanding how these switches work and how to wire them can enhance your ability to design and troubleshoot electronic circuits effectively.
SPDT switches have one common terminal and connect it to one of two outputs, while DPDT switches have two separate circuits with two common terminals.
Yes, if configured correctly, a three-position slide switch can control light brightness by selecting different resistive loads or power levels.
You can use a multimeter set to continuity mode to test which terminals connect when the slider is moved.
Ensure that your circuit's voltage and current ratings are within the specifications of the switch to prevent overheating or failure.
Yes, but ensure that you select a switch rated for the specific voltage and current requirements of your application.
