Push switches are ubiquitous components in modern electronic devices, providing a simple yet effective means of controlling electrical circuits. Understanding how these switches operate can enhance our appreciation of their role in everyday technology. This article will explore the mechanics behind push switches, their types, applications, and much more.
A push switch, also known as a push button switch, is a type of electrical switch that is activated by pressing a button. The primary function of this switch is to either make or break an electrical circuit. When the button is pressed, it either allows electricity to flow (closing the circuit) or interrupts the flow (opening the circuit).

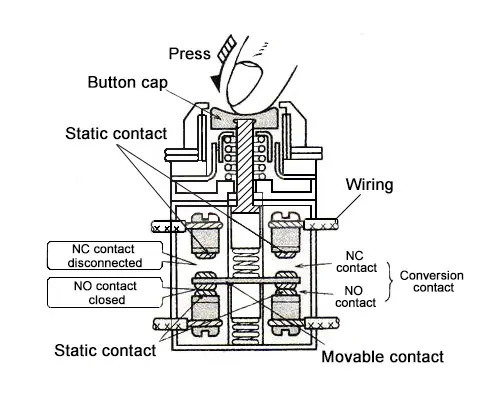

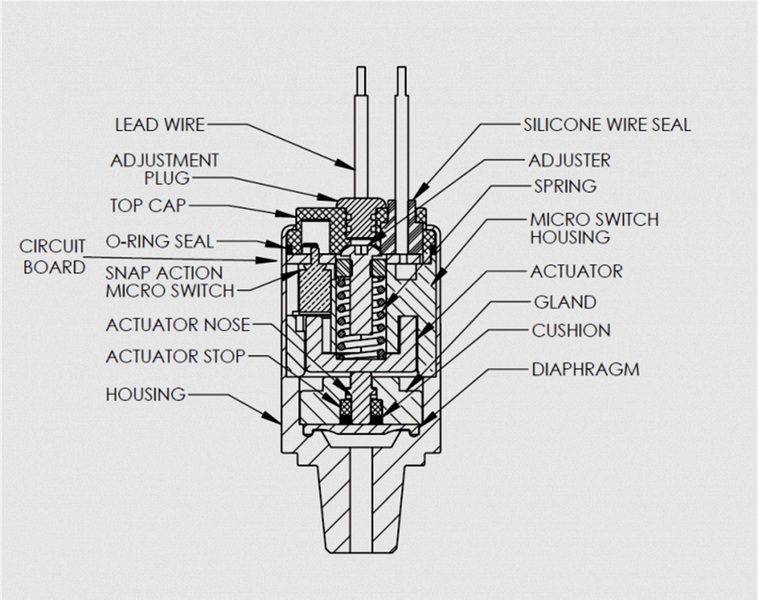

The operation of a push switch is based on a simple mechanical principle involving contacts and springs. Here's how it works:
1. Button Pressed: When the button is pressed, it compresses a spring mechanism inside the switch.
2. Contacts Engage: This compression causes two metal contacts to come together, completing the electrical circuit.
3. Electricity Flows: Once the circuit is complete, electricity flows through the device connected to the switch.
4. Button Released: When the button is released, the spring returns to its original position.
5. Contacts Separate: The separation of contacts breaks the circuit, stopping the flow of electricity.
This cycle can be repeated as needed, making push switches ideal for applications requiring temporary activation.
Push switches come in various types, each serving different functions and applications:
- Momentary Switches: These switches only maintain their state while being pressed. They are commonly used in applications like doorbells and computer keyboards.
- Latching Switches: These switches remain in their last position until pressed again. They are often used in power control applications.

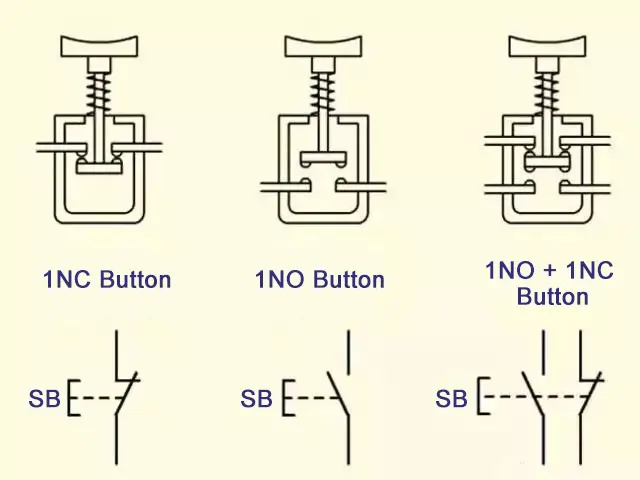

- Normally Open (NO): In this configuration, the circuit is open when not pressed and closes when the button is pushed.
- Normally Closed (NC): Here, the circuit is closed when not pressed and opens when the button is pushed.
In addition to these basic types, there are numerous specialized push switches designed for specific applications:
- Tactile Push Button Switches: These compact switches provide tactile feedback through a clicking mechanism when pressed, making them popular in consumer electronics and keyboards.
- Illuminated Push Button Switches: Equipped with LED lights, these switches provide visual feedback about their status (on/off), enhancing usability in low-light conditions.
- Locking Push Button Switches: These switches require an additional action to unlock after being pressed, preventing accidental activation.
- Panel Mounted Push Button Switches: Designed for installation on control panels, these switches are often used in industrial settings for easy access and control.
- Miniature Push Button Switches: Ideal for small devices like toys or remote controls, these switches take up minimal space while providing functionality.
A typical push switch consists of several key components:
- Actuator: The part that you press; it can be made from plastic or metal.
- Contacts: Conductive parts that touch when the button is pressed to complete the circuit.
- Spring Mechanism: Returns the actuator to its original position after being pressed.
- Housing: The outer shell that protects internal components.
Push switches are widely used across various industries and devices:
- Consumer Electronics: Found in remote controls, televisions, and computers.
- Industrial Equipment: Used in machinery for start/stop functions.
- Household Appliances: Common in devices like microwaves and washing machines.
- Automotive Applications: Used for controlling lights and other electronic features.
The versatility of push switches extends beyond typical consumer electronics:
- Medical Devices: In medical equipment such as infusion pumps or diagnostic machines, push buttons allow healthcare professionals to operate devices quickly and efficiently.
- Gaming Controllers: Momentary push buttons are crucial for responsive gameplay in consoles and handheld devices.
- Home Automation Systems: Smart home devices often incorporate push buttons for user interaction with security systems or lighting controls.
- Industrial Control Panels: In manufacturing environments, push buttons are integral to machinery operation and safety protocols.
Push switches offer several advantages:
- Simplicity: Easy to use with straightforward operation.
- Space-Efficient: Their compact design makes them suitable for small devices.
- Reliability: Mechanical design ensures durability over time.
- Versatility: Available in numerous configurations for different applications.
Beyond basic advantages, push buttons also provide:
- Safety Features: Many designs include features that prevent accidental activation or provide emergency shut-off capabilities.
- Customization Options: Users can select from various colors and designs for aesthetic integration into products or to indicate different functions (e.g., red for stop, green for go).
While push switches have many benefits, there are challenges associated with their use:
- Wear Over Time: Mechanical components can wear out with extensive use; therefore, selecting high-quality materials is essential for longevity.
- Environmental Factors: For outdoor or harsh environments, choosing sealed or ruggedized versions can protect against moisture and debris ingress.
Push switches are essential components that facilitate user interaction with electronic devices. Their simple yet effective design allows for reliable control over electrical circuits. By understanding how they work and their various types and applications, we can better appreciate their role in both everyday gadgets and complex industrial systems. As technology continues to evolve, so too will the designs and functionalities of push switches, ensuring they remain integral to our electronic landscape.
When you press a push button switch, it completes an electrical circuit by bringing two contacts together, allowing electricity to flow through.
Momentary push buttons only maintain their state while being pressed; latching push buttons stay in their last position until pressed again.
To install a push button switch, connect its terminals to your circuit according to its type (NO or NC), secure it in place within an enclosure or panel, ensuring proper insulation.
Yes, but you should choose push buttons with appropriate IP ratings for dust and water resistance if they will be exposed to outdoor conditions.
Yes, many push buttons come with built-in LED lights that indicate their status (on/off), which can be useful for visibility in low-light conditions.
